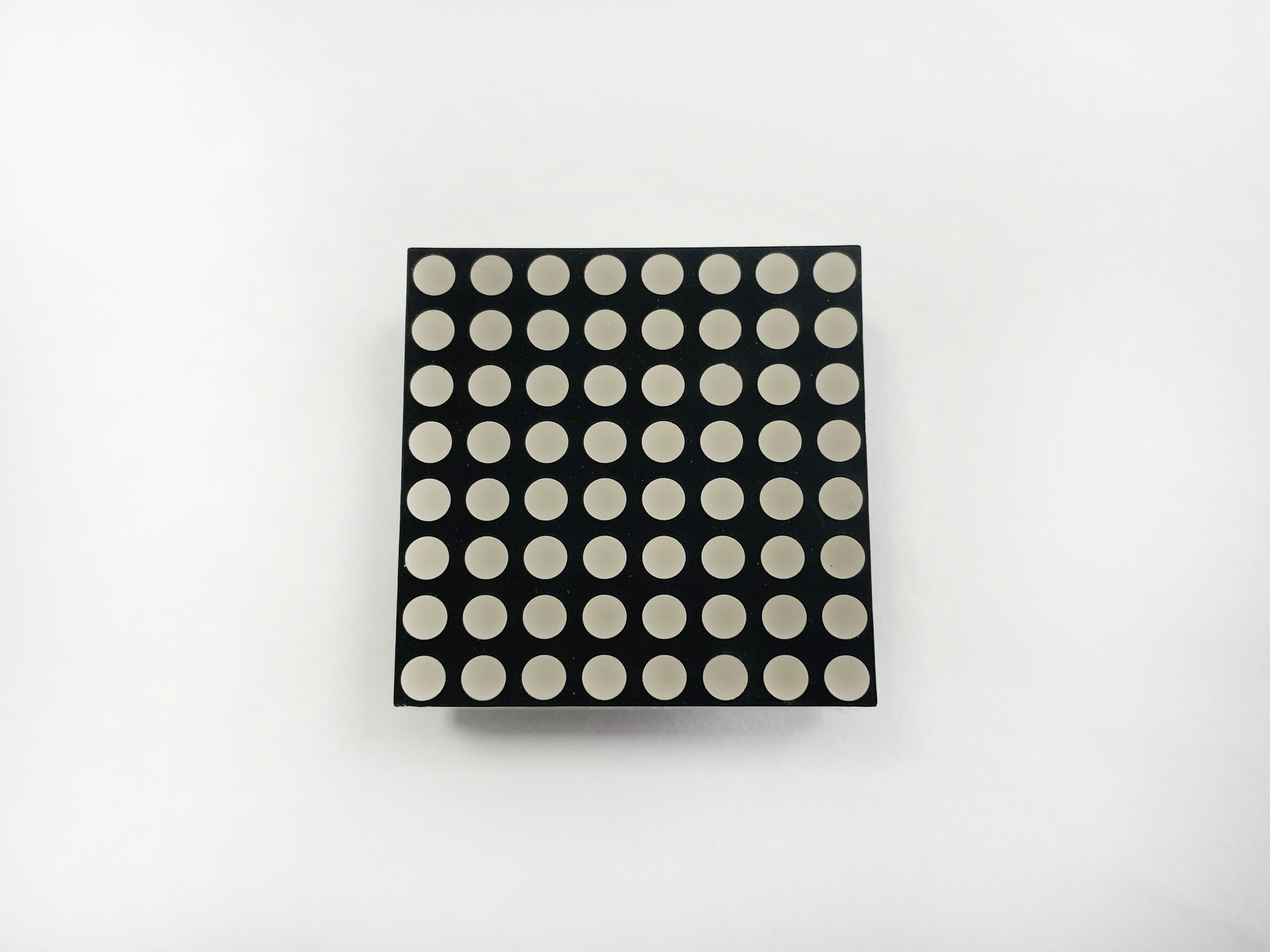

CSDM-88112UM
Basic information
1.1.2 Inch Dot-Matrix Display .
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 8*8 | 32*32*8 | 30.8mm (1.2 inch) | Ø3.0mm, 4.0mm | Red | CSDM-88112UM | * | 645 | * | 20 | 40 | 10 |
| Dot 8*8 | 32*32*8 | 30.8mm (1.2 inch) | Ø3.0mm, 4.0mm | Green | CSDM-88112UM | * | 570 | * | 12 | 22 | 10 |
