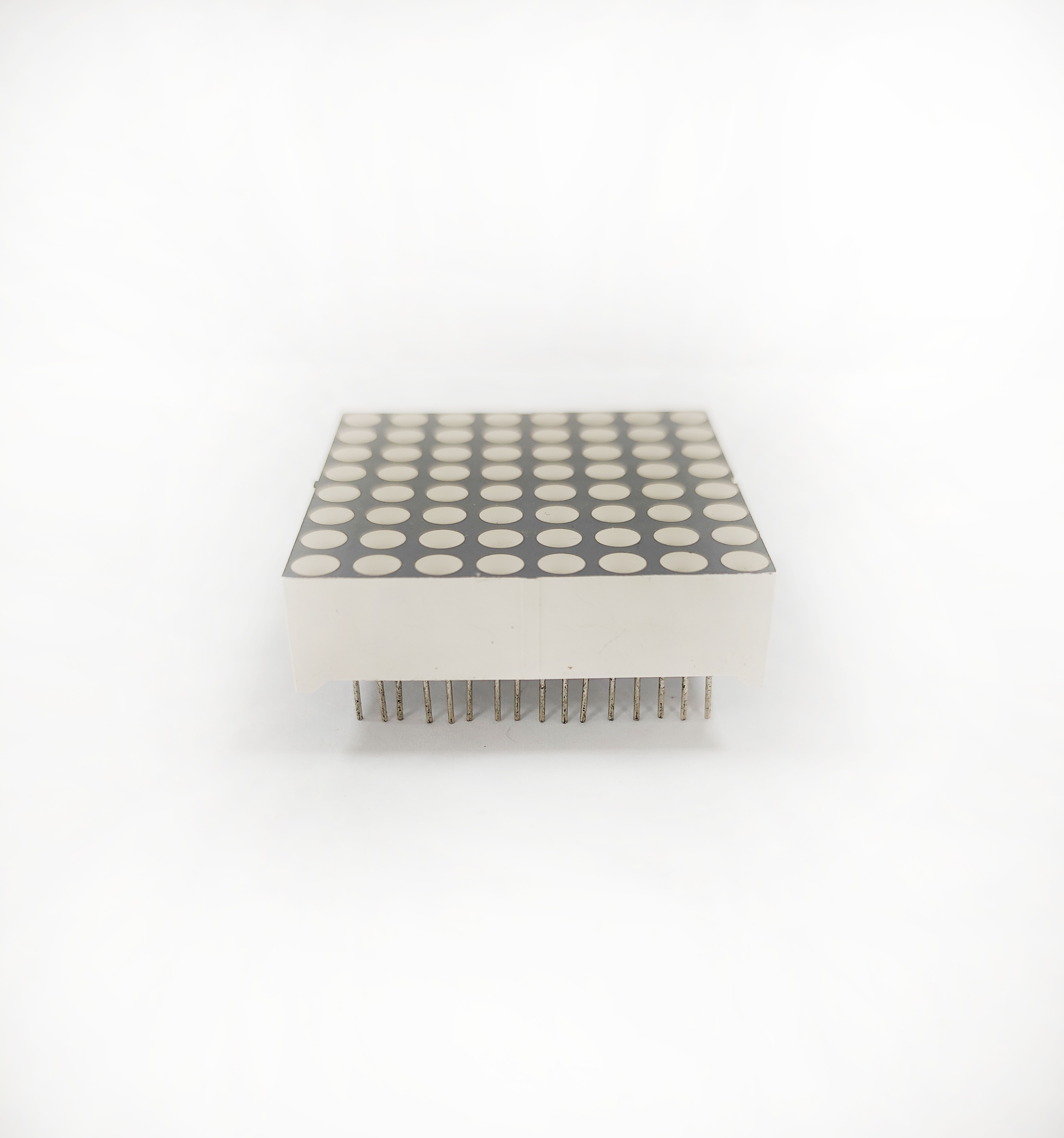

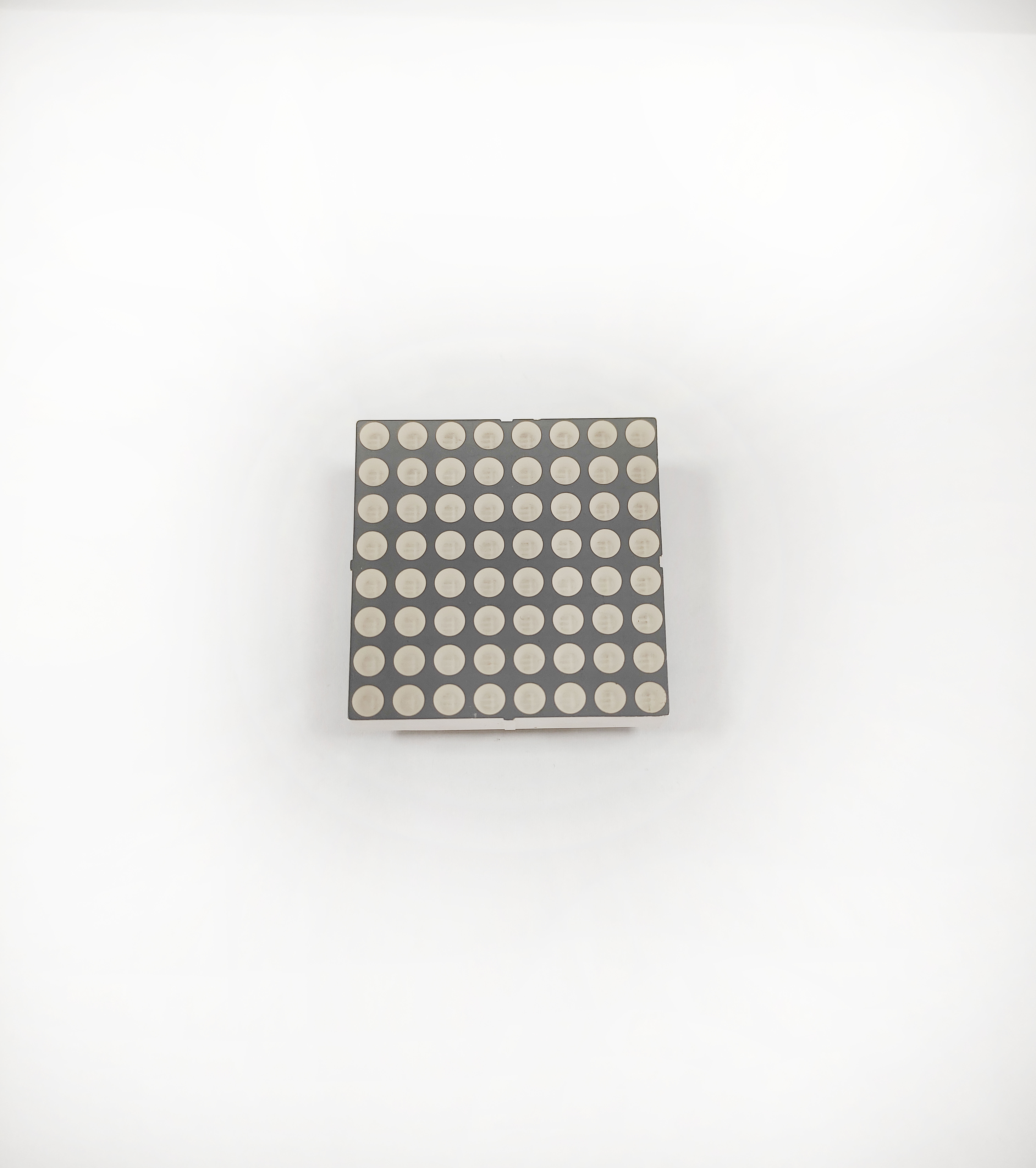

CSDM-88116VM
Basic information
1.1.5 Inch Dot-Matrix Display .
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 8*8 | 37.9*37.9*10.4 | 37.0mm (1.5 inch) | Ø3.7mm, 4.76mm | Red | CSDM-88116VM | * | 625 | * | 30 | 65 | 10 |
| Dot 8*8 | 37.9*37.9*10.4 | 37.0mm (1.5 inch) | Ø3.7mm, 4.76mm | Green | CSDM-88116VM | * | 570 | * | 12 | 25 | 10 |
