CSDQ-28400_CSDQ-28401
Basic information

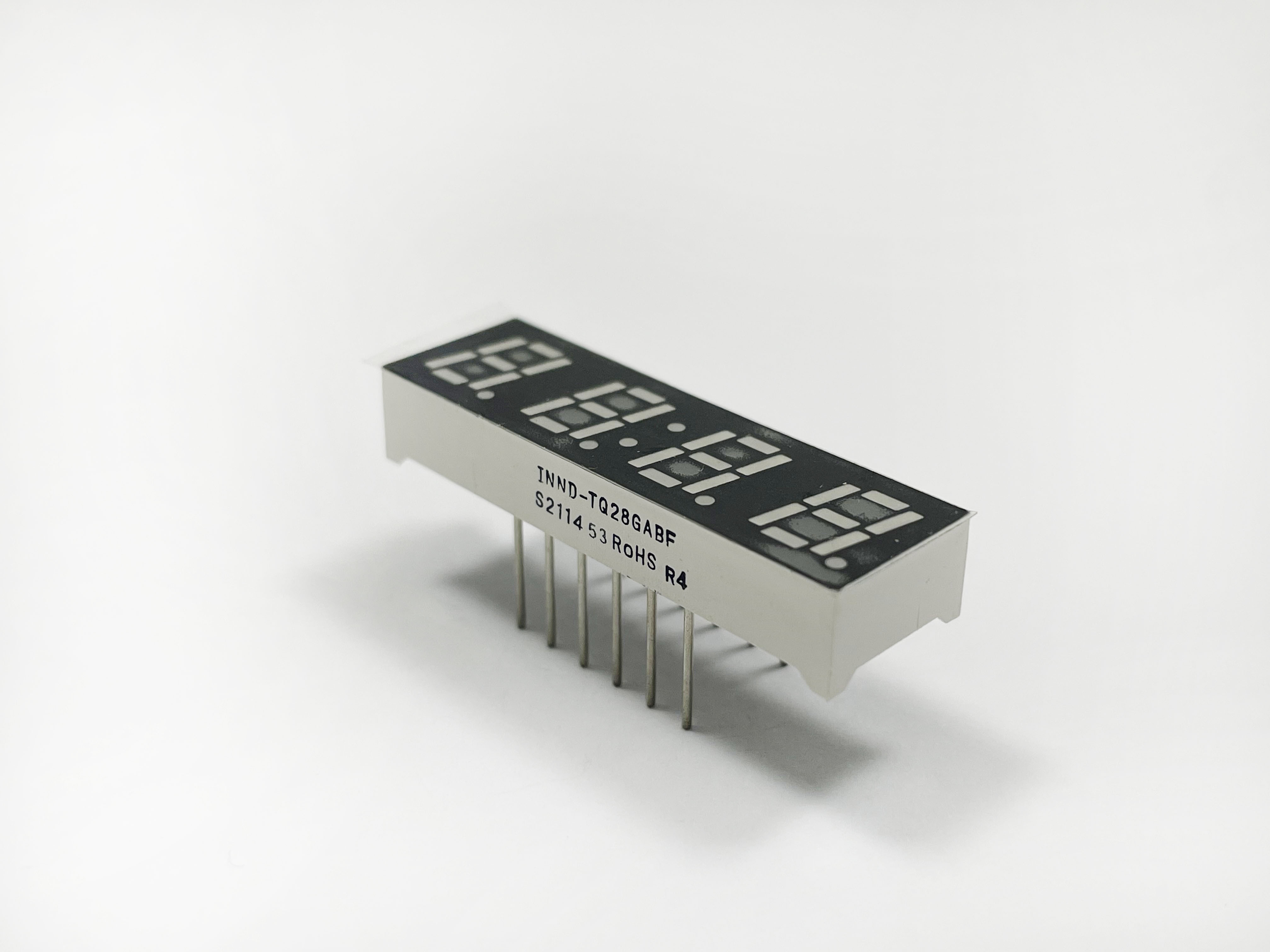

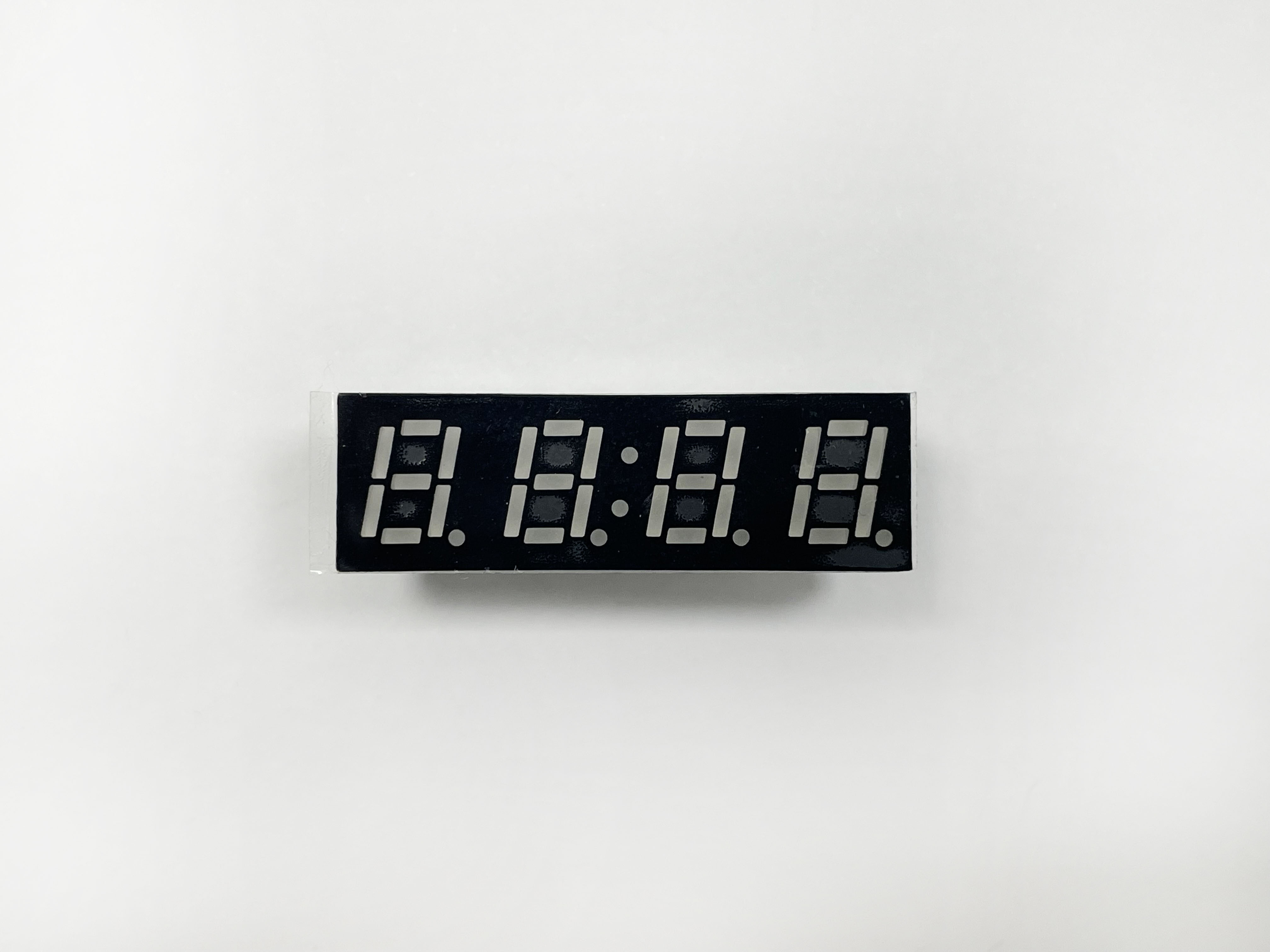

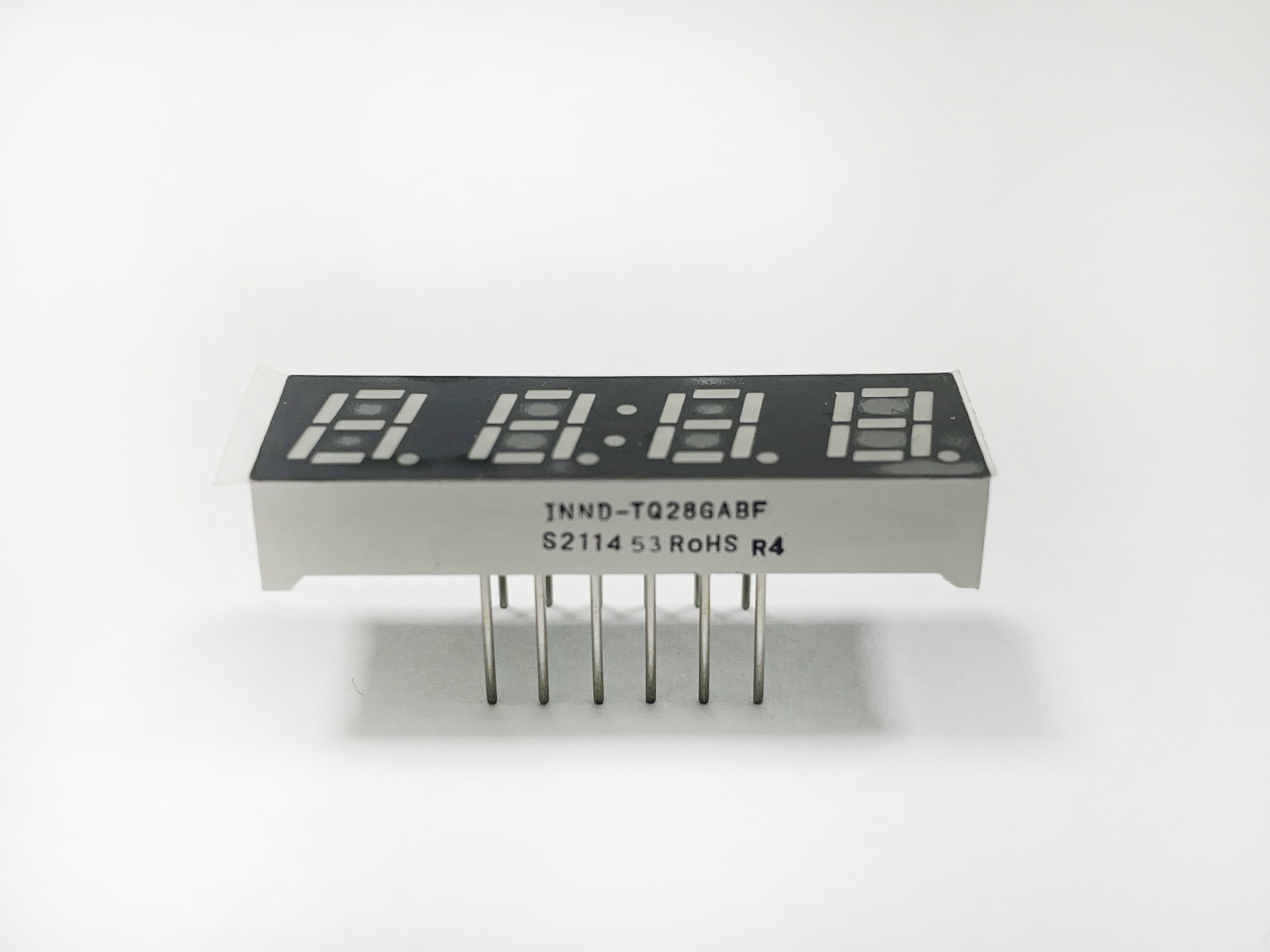

1.Quad digit  display .
2.0.28 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.28 inch 32.1*10*5.8 Green CSDQ-284002 CSDQ-284012 525 70 120 10
0.28 inch 32.1*10*5.8 Green CSDQ-28400M CSDQ-28401M 570 3 8 10
0.28 inch 32.1*10*5.8 Yellow CSDQ-28400T CSDQ-28401T 590 17 30 10
0.28 inch 32.1*10*5.8 Orange CSDQ-28400A CSDQ-28401A 605 17 40 10
0.28 inch 32.1*10*5.8 Red CSDQ-28400V CSDQ-28401V 625 10 20 10
0.28 inch 32.1*10*5.8 Red CSDQ-28400L CSDQ-28401L 630 10 20 10
0.28 inch 32.1*10*5.8 Red CSDQ-28400U CSDQ-28401U 645 5 10 10
