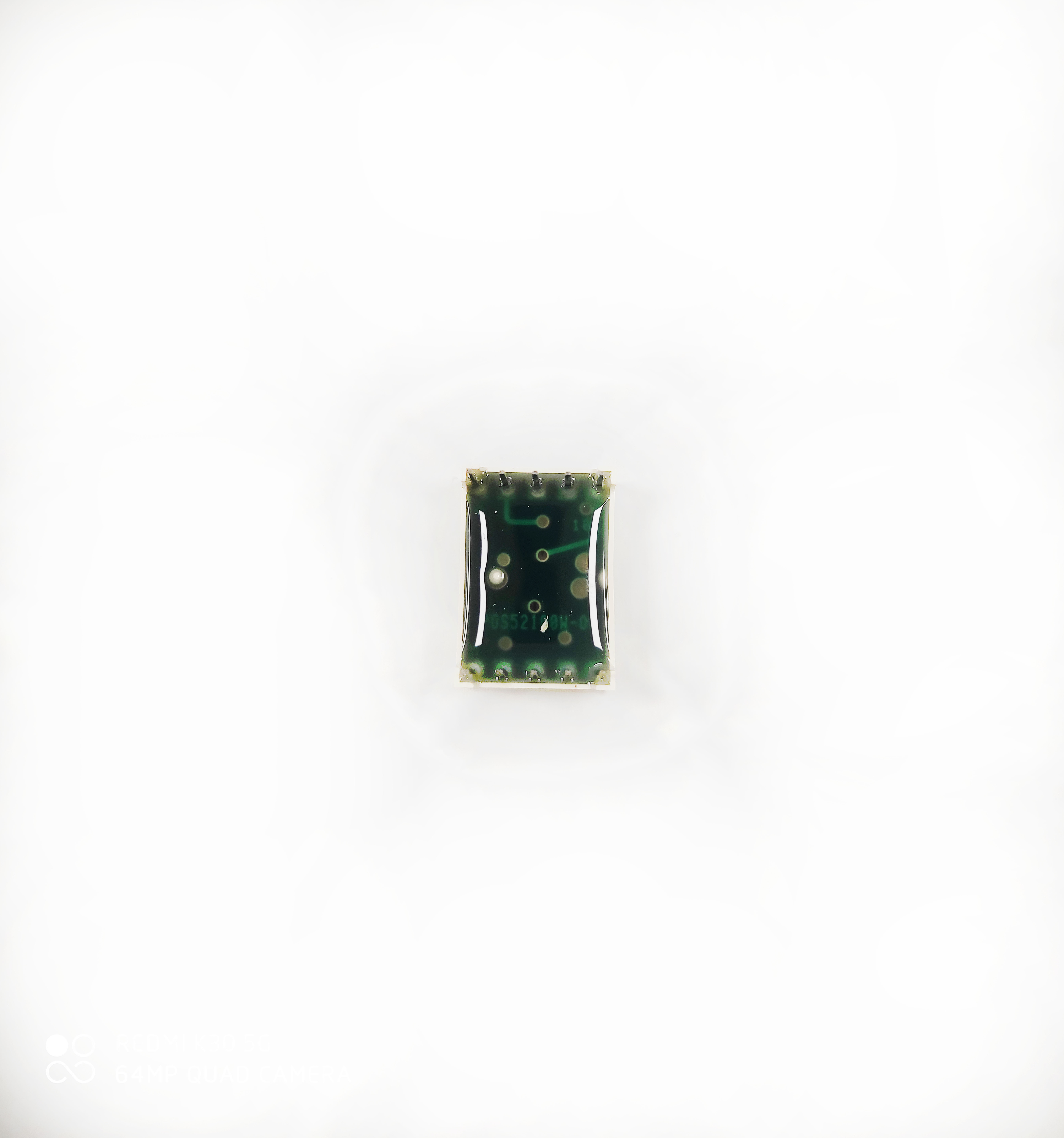

CSDS-52104_CSDS-52105
Basic information
1.Single digit  display .
2.0.52 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.56 inch 12.4*17.1*8 Green CSDS-521042 CSDS-521052 525 110 200 10
0.56 inch 12.4*17.1*8 Green CSDS-52104M CSDS-52105M 570 7 12 10
0.56 inch 12.4*17.1*8 Yellow CSDS-52104T CSDS-52105T 590 27 50 10
0.56 inch 12.4*17.1*8 Orange CSDS-52104A CSDS-52105A 605 27 60 10
0.56 inch 12.4*17.1*8 Red CSDS-52104V CSDS-52105V 625 17 30 10
0.56 inch 12.4*17.1*8 Red CSDS-52104L CSDS-52105L 630 17 30 10
0.56 inch 12.4*17.1*8 Red CSDS-52104U CSDS-52105U 645 10 18 10
