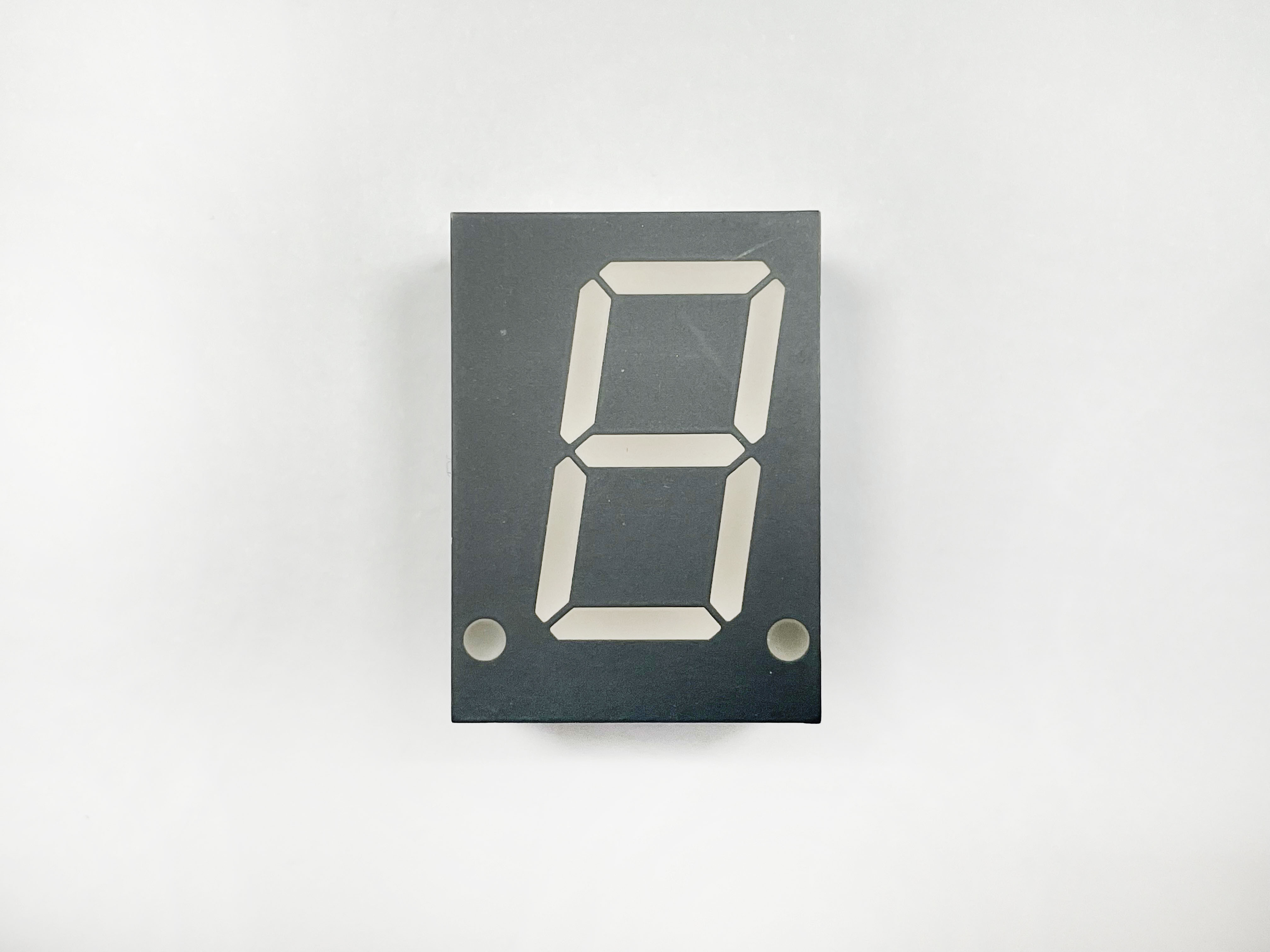

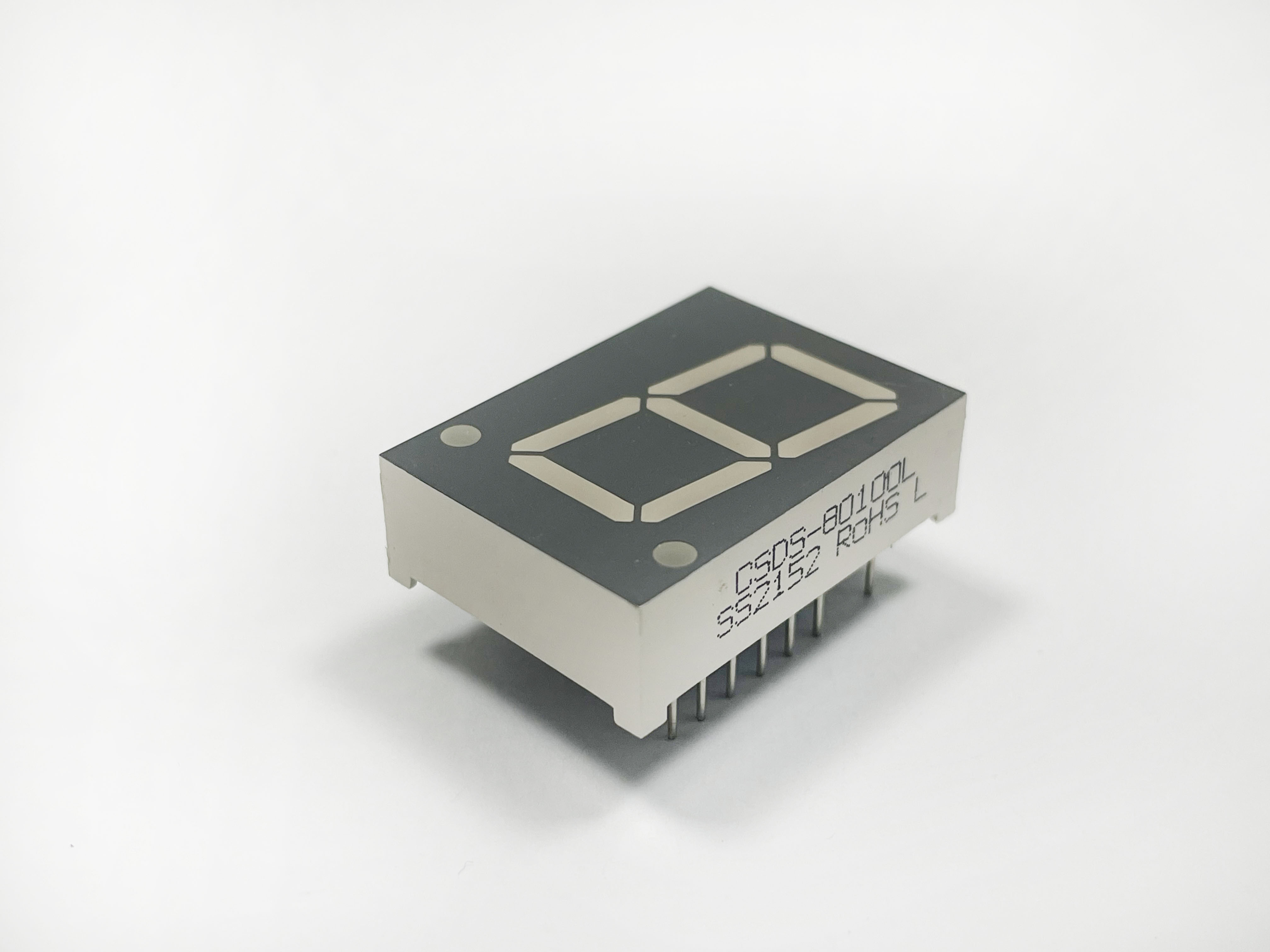

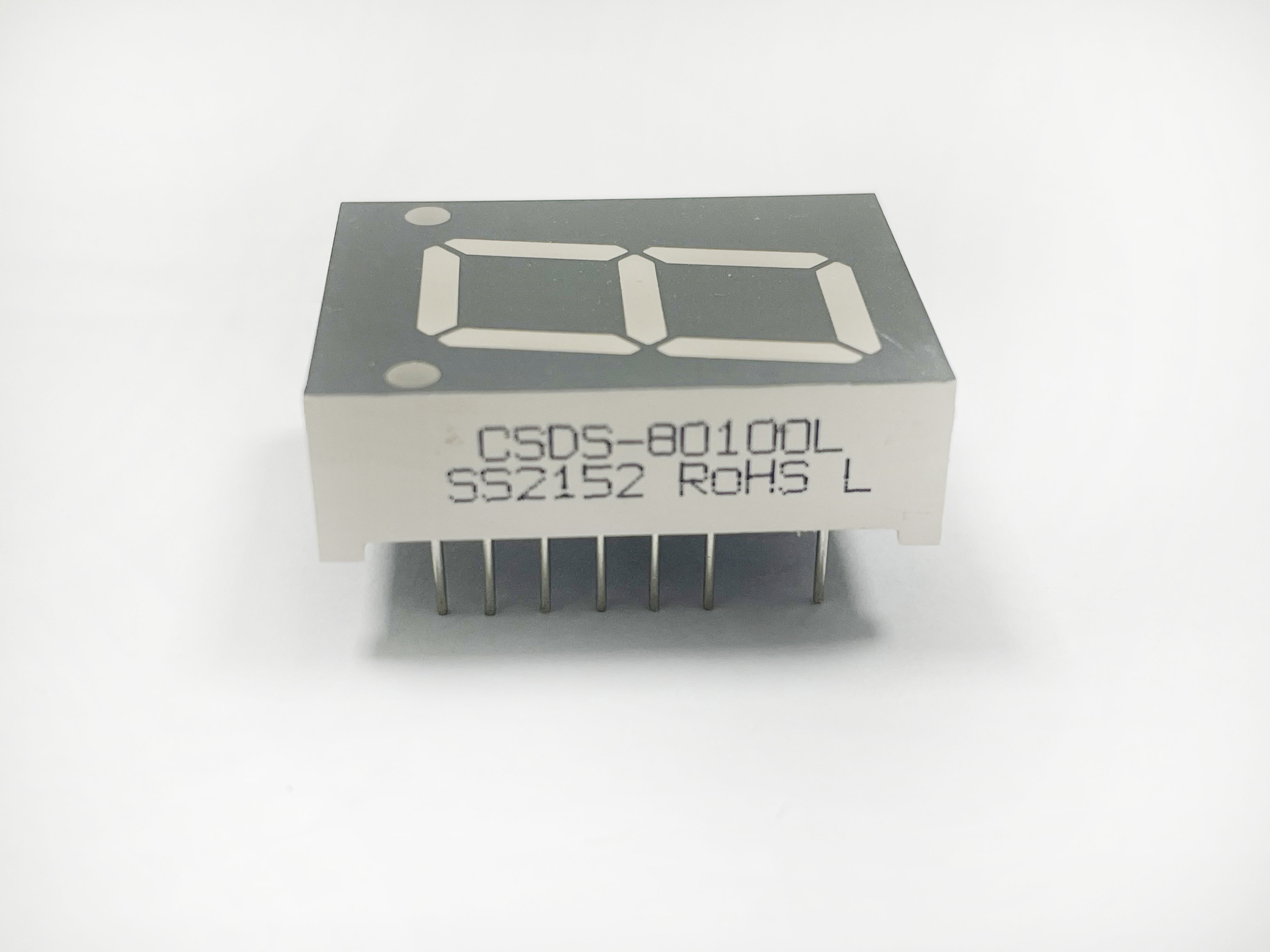

CSDS-80100_CSDS-80101
Basic information
1.Single digit  display .
2.0.8 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.80 inch 20*27.7*8.4 Green CSDS-80100M CSDS-80101M 570 7 14 10
0.80 inch 20*27.7*8.4 Yellow CSDS-80100T CSDS-80101T 590 27 55 10
0.80 inch 20*27.7*8.4 Orange CSDS-80100A CSDS-80101A 605 27 65 10
0.80 inch 20*27.7*8.4 Red CSDS-80100V CSDS-80101V 625 17 34 10
0.80 inch 20*27.7*8.4 Red CSDS-80100L CSDS-80101L 630 17 32 10
0.80 inch 20*27.7*8.4 Red CSDS-80100U CSDS-80101U 645 12 19 10
0.80 inch 20*27.7*8.4 Green CSDS-80100M2 CSDS-801012 525 120 220 10
