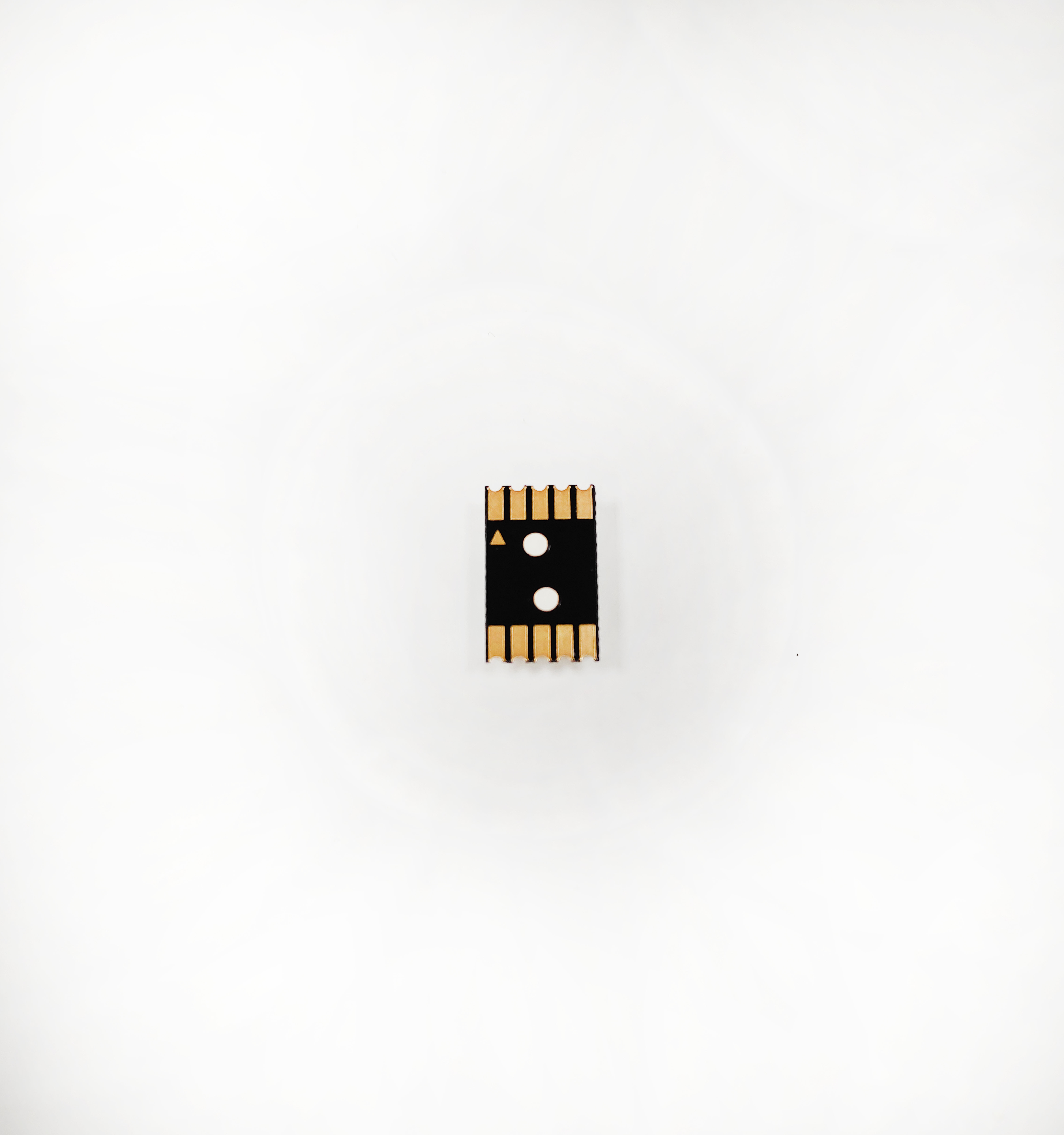

CSDS-S40124X-CSDS-S40125X
Basic information
1.Single Digit  SMD Display .
2.0.4 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.40 inch Single Digit 9.2*15*3.75 Green CSDS-S401242 CSDS-S401252 35 60 10
0.40 inch Single Digit 9.2*15*3.75 Green CSDS-S40124M CSDS-S40125M 2 5 10
0.40 inch Single Digit 9.2*15*3.75 Yellow CSDS-S40124T CSDS-S40125T 6 12 10
0.40 inch Single Digit 9.2*15*3.75 Orange CSDS-S40124A CSDS-S40125A 6 12 10
0.40 inch Single Digit 9.2*15*3.75 Red CSDS-S40124V CSDS-S40125V 4 8 10
0.40 inch Single Digit 9.2*15*3.75 Red CSDS-S40124L CSDS-S40125L 4 8 10
0.40 inch Single Digit 9.2*15*3.75 Red CSDS-S40124U CSDS-S40125U 3 7 10
