CSDS-S40126X-CSDS-S40127X
Basic information

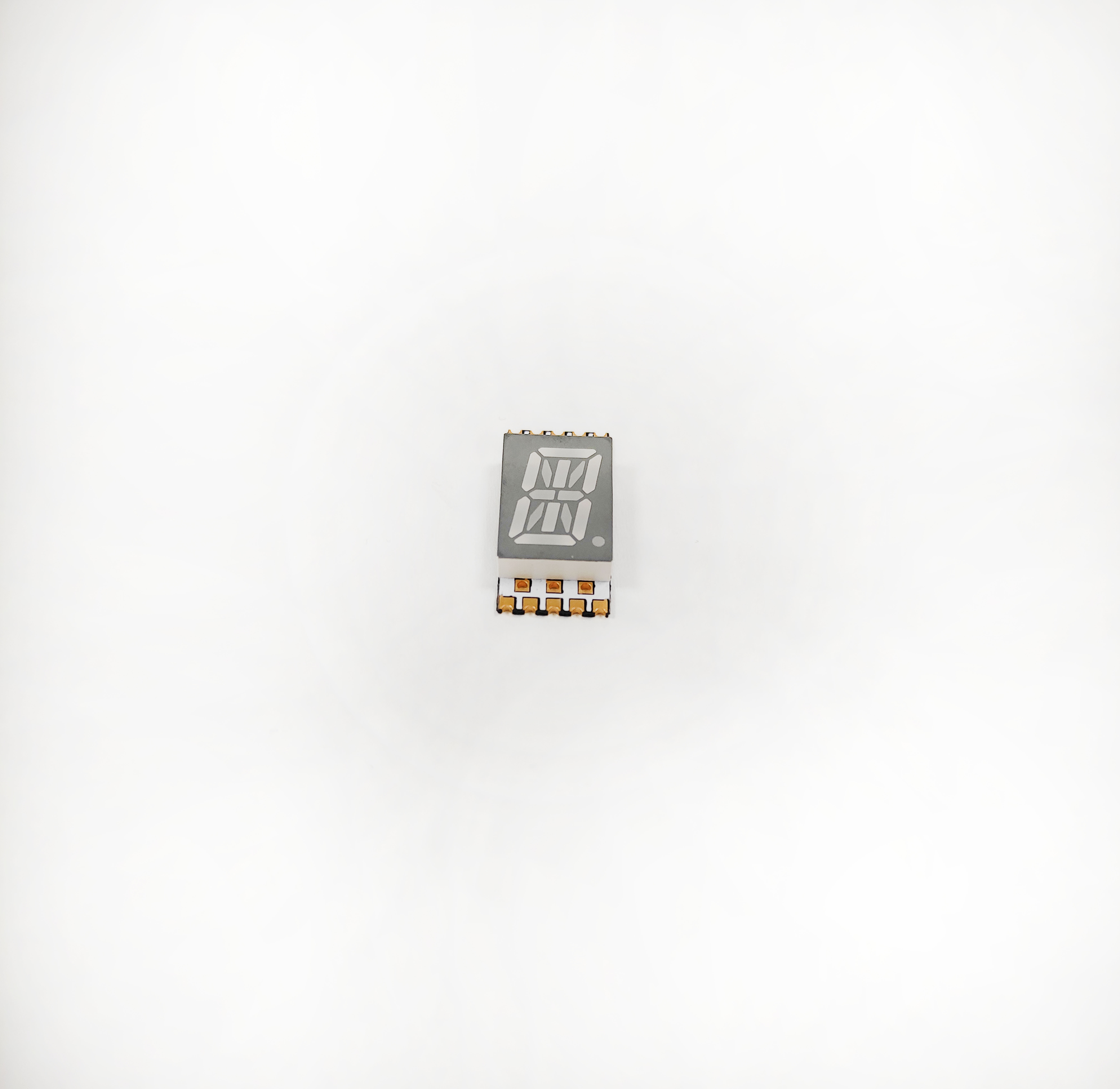

1.Single Digit  SMD Alphanumeric Display .
2.0.4 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.40 inch Single Digit 9.3*19*3.75 Green CSDS-S401262 CSDS-S401272 30 50 10
0.40 inch Single Digit 9.3*19*3.75 Green CSDS-S40126M CSDS-S40127M 2 5 10
0.40 inch Single Digit 9.3*19*3.75 Yellow CSDS-S40126T CSDS-S40127T 6 12 10
0.40 inch Single Digit 9.3*19*3.75 Orange CSDS-S40126A CSDS-S40127A 6 12 10
0.40 inch Single Digit 9.3*19*3.75 Red CSDS-S40126V CSDS-S40127V 4 8 10
0.40 inch Single Digit 9.3*19*3.75 Red CSDS-S40126L CSDS-S40127L 4 8 10
0.40 inch Single Digit 9.3*19*3.75 Red CSDS-S40126U CSDS-S40127U 3 7 10
