CSDS-S56124X_CSDS-S56125X
Basic information

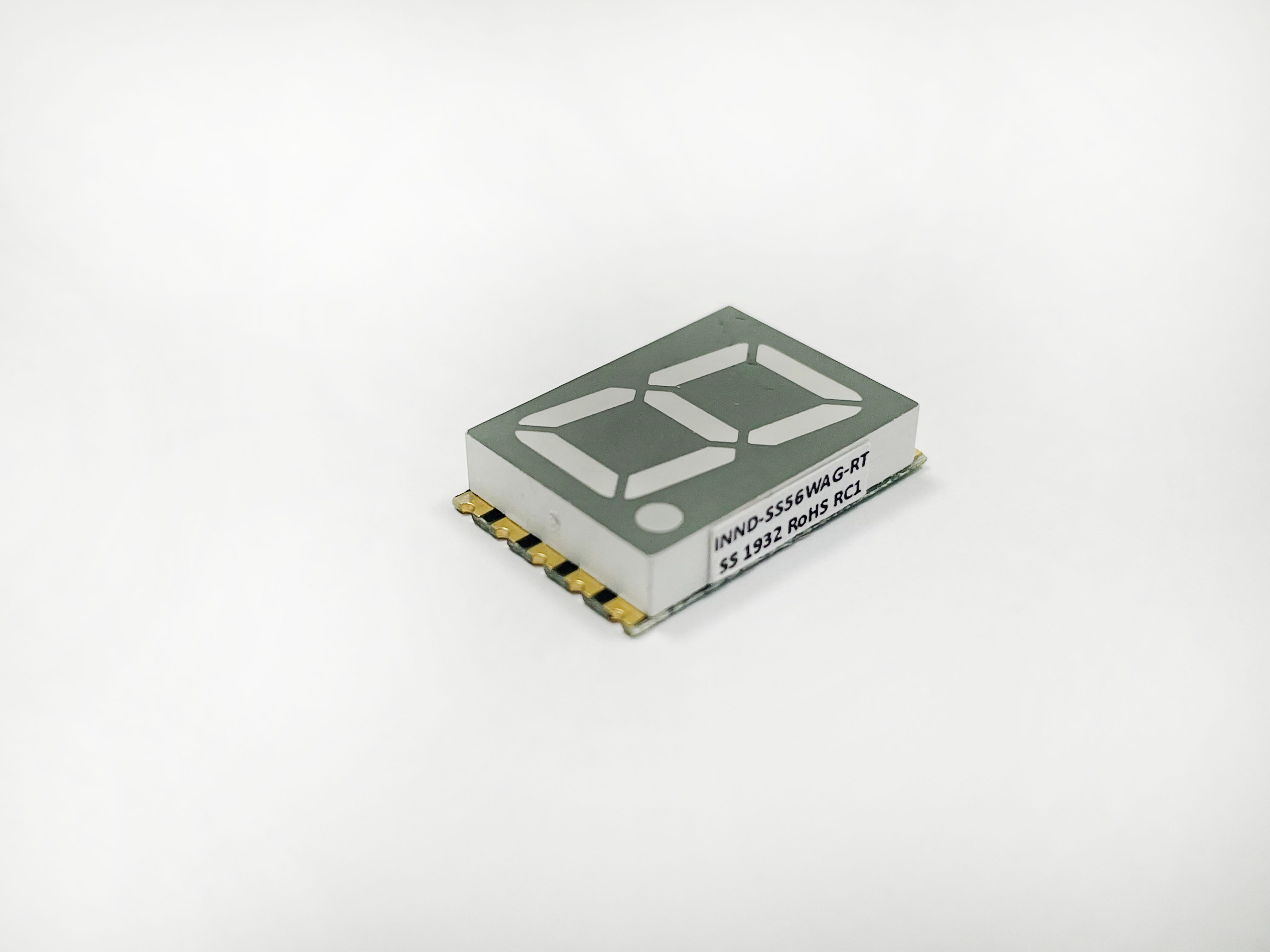

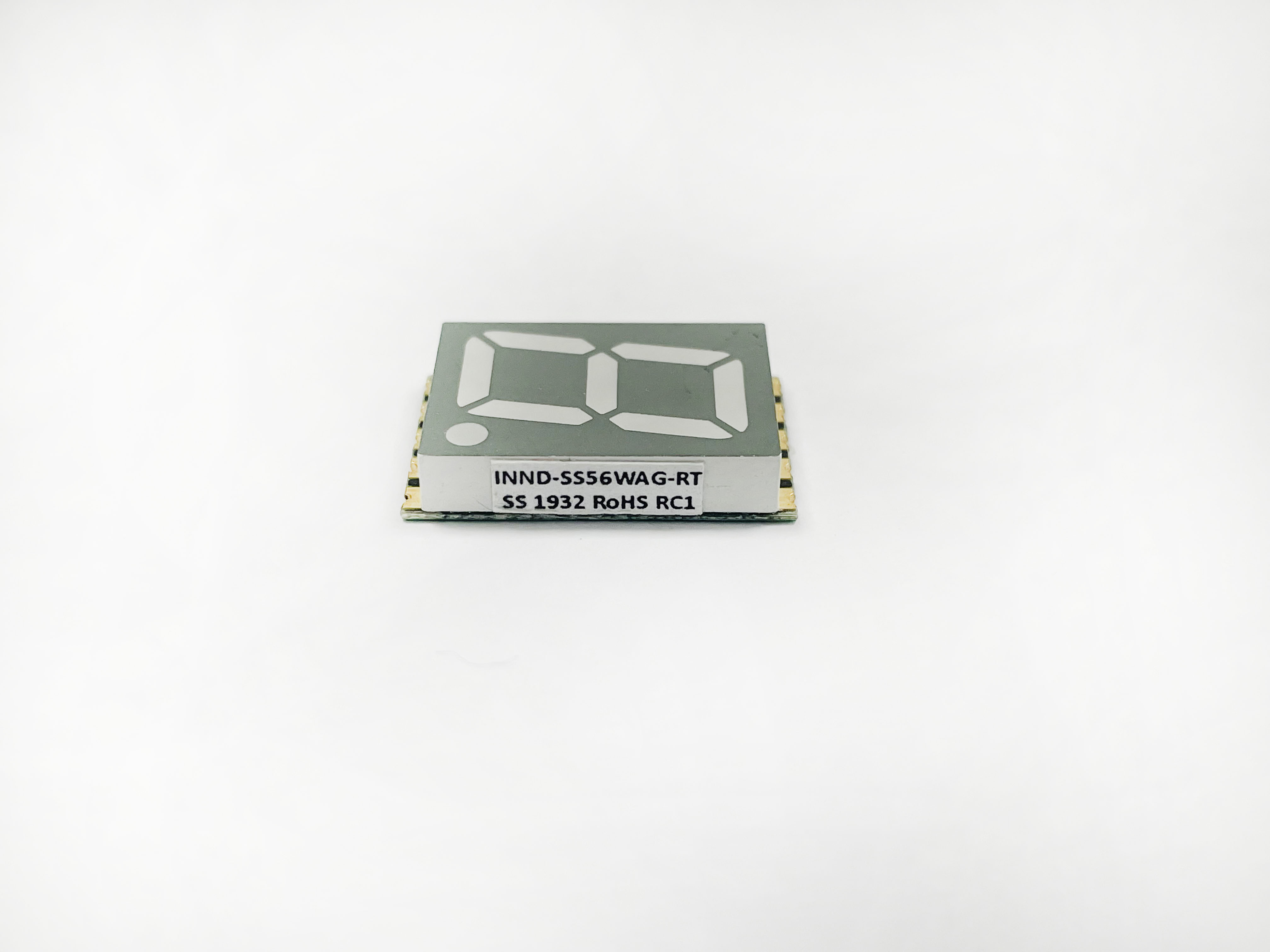

1.Single Digit  SMD Display .
2.0.56 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.56 inch Single Digit 12.4*19*3.75 Red CSDS-S56124V CSDS-S56125V 5 10 10
0.56 inch Single Digit 12.4*19*3.75 Red CSDS-S56124L CSDS-S56125L 5 10 10
0.56 inch Single Digit 12.4*19*3.75 Red CSDS-S56124U CSDS-S56125U 4 9 10
0.56 inch Single Digit 12.4*19*3.75 Green CSDS-S561242 CSDS-S561252 40 70 10
0.56 inch Single Digit 12.4*19*3.75 Green CSDS-S56124M CSDS-S56125M 3 6 10
0.56 inch Single Digit 12.4*19*3.75 Yellow CSDS-S56124T CSDS-S56125T 7 15 10
0.56 inch Single Digit 12.4*19*3.75 Orange CSDS-S56124A CSDS-S56125A 7 15 10
