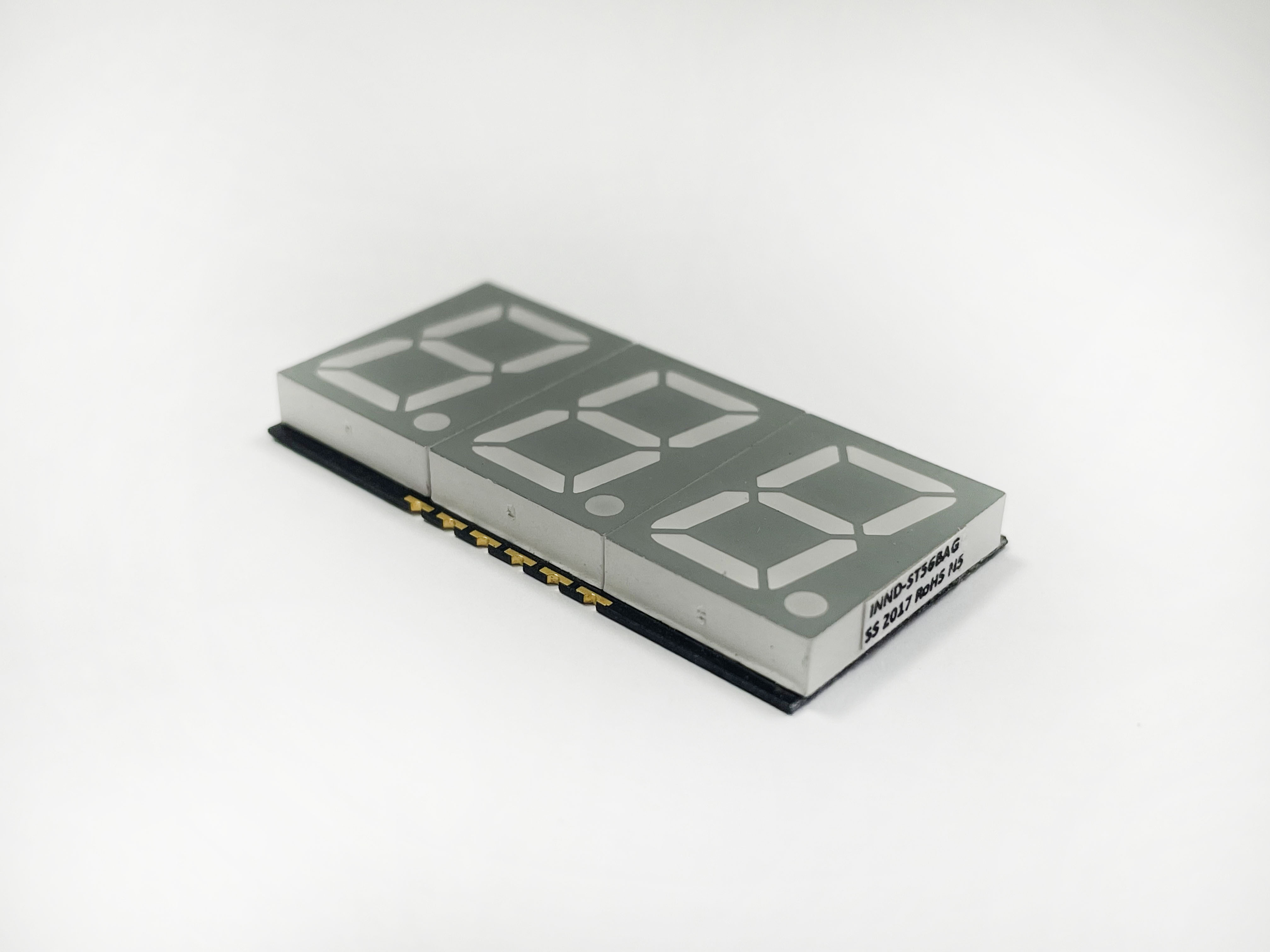

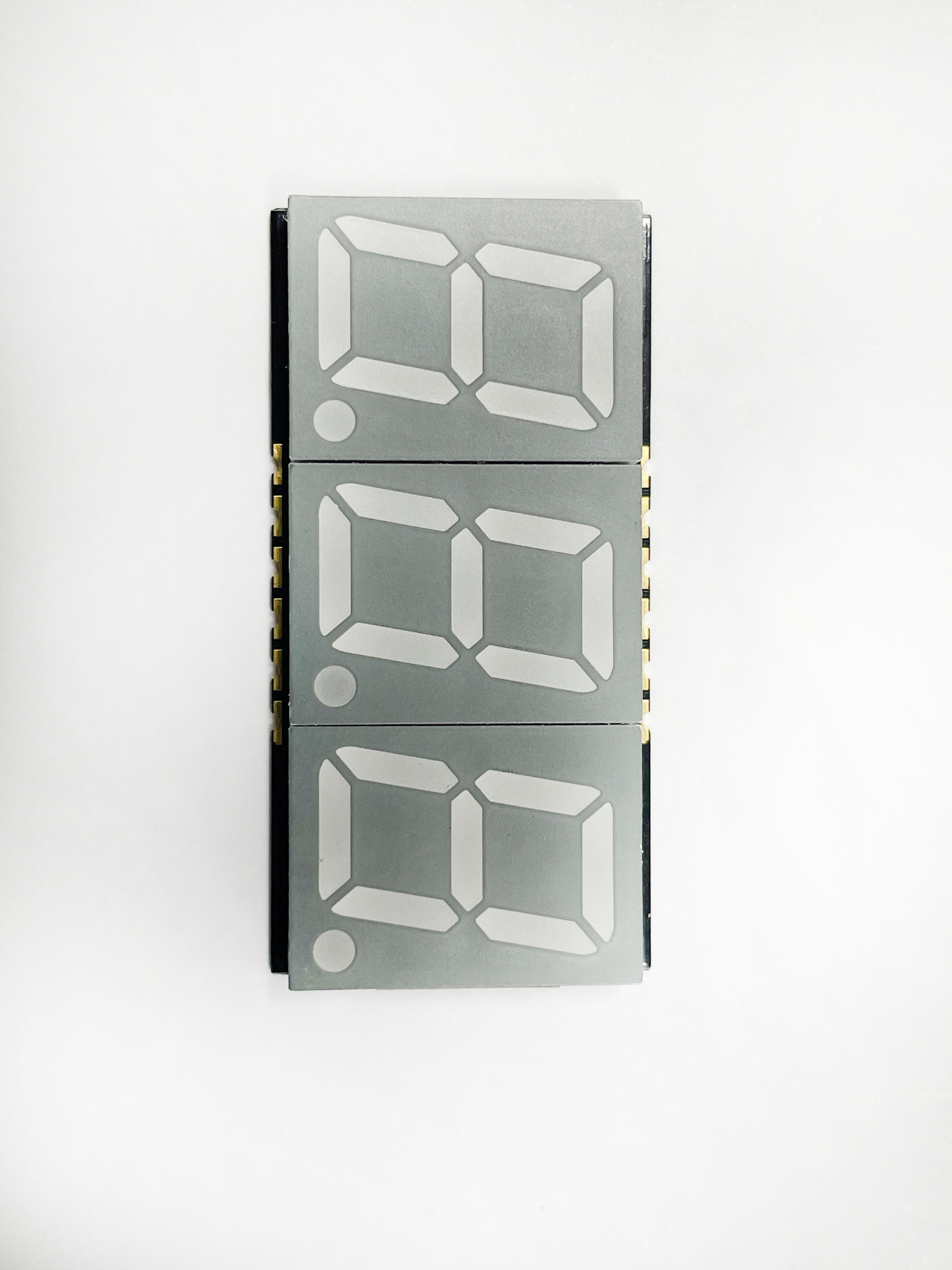

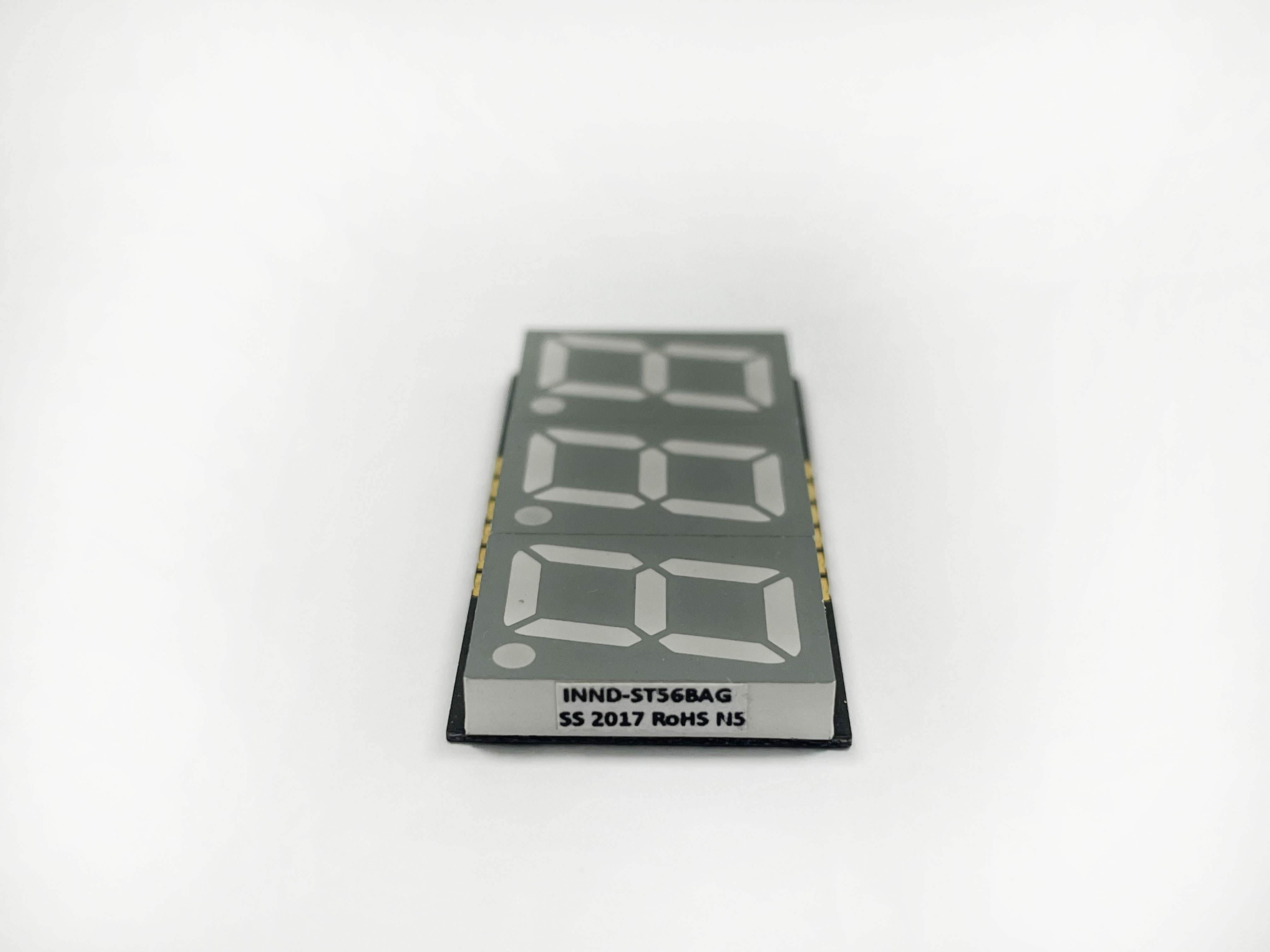

CSDT-S56320X_CSDT-S56321X
Basic information
1.Triple Digit  SMD Display .
2.0.56 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.56 inch Triple Digit 37.8*19*3.8 Green CSDT-S563202 CSDT-S563212 40 70 10
0.56 inch Triple Digit 37.8*19*3.8 Green CSDT-S56320M CSDT-S56321M 3 6 10
0.56 inch Triple Digit 37.8*19*3.8 Yellow CSDT-S56320T CSDT-S56321T 7 15 10
0.56 inch Triple Digit 37.8*19*3.8 Orange CSDT-S56320A CSDT-S56321A 7 15 10
0.56 inch Triple Digit 37.8*19*3.8 Red CSDT-S56320V CSDT-S56321V 5 10 10
0.56 inch Triple Digit 37.8*19*3.8 Red CSDT-S56320L CSDT-S56321L 5 10 10
0.56 inch Triple Digit 37.8*19*3.8 Red CSDT-S56320U CSDT-S56321U 4 9 10
