CSOT-S56320B_CSOT-S56321B
Basic information

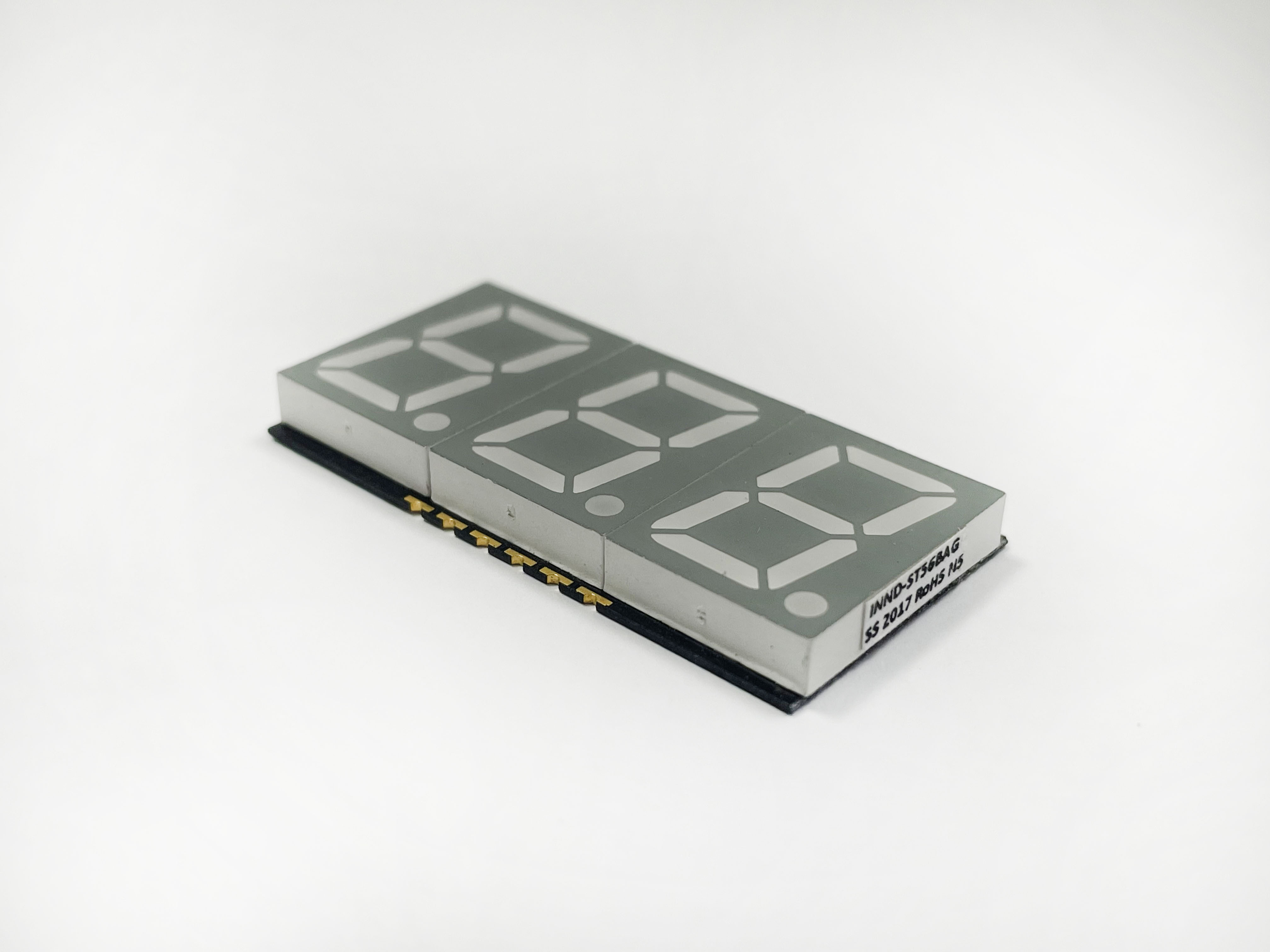

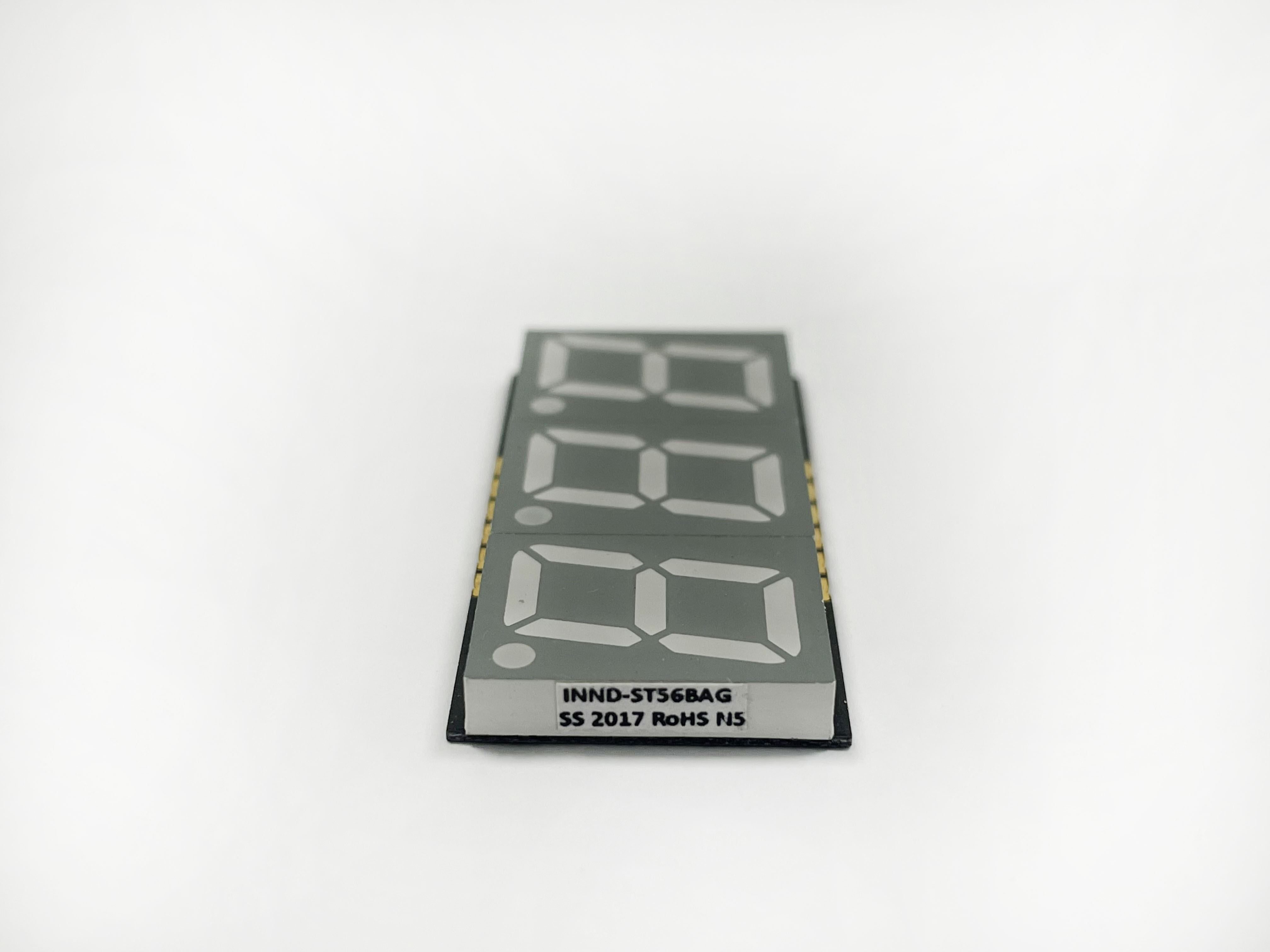

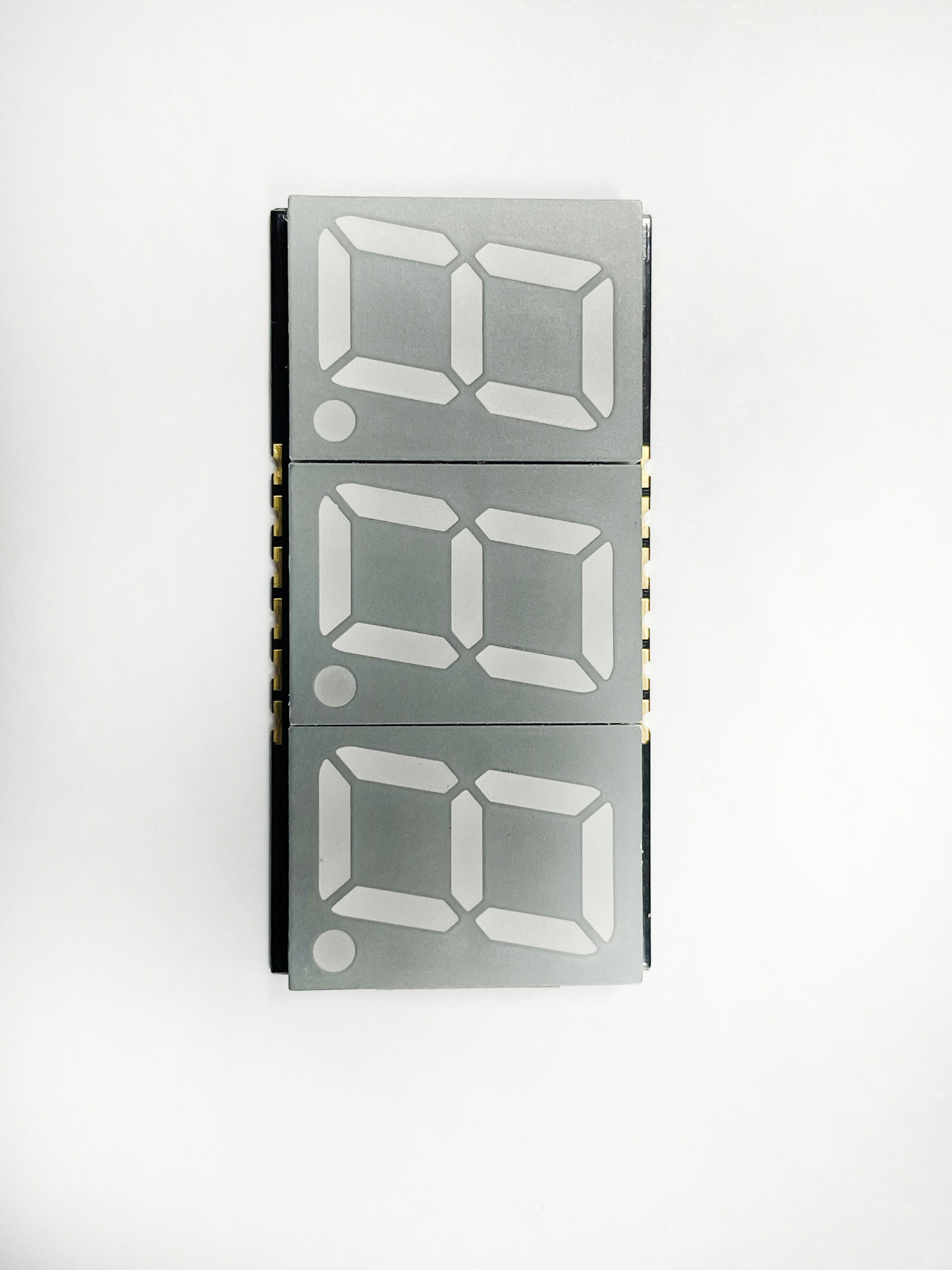

1.Triple Digit SMD Display .
2.0.56 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.OBOL product.
2.0.56 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.OBOL product.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | |||||
| 0.56 inch Triad Digit | 37.8*19*3.8 | Blue | CSOT-S56320B | CSOT-S56321B | 465 | 7 | 12 | 10 |
