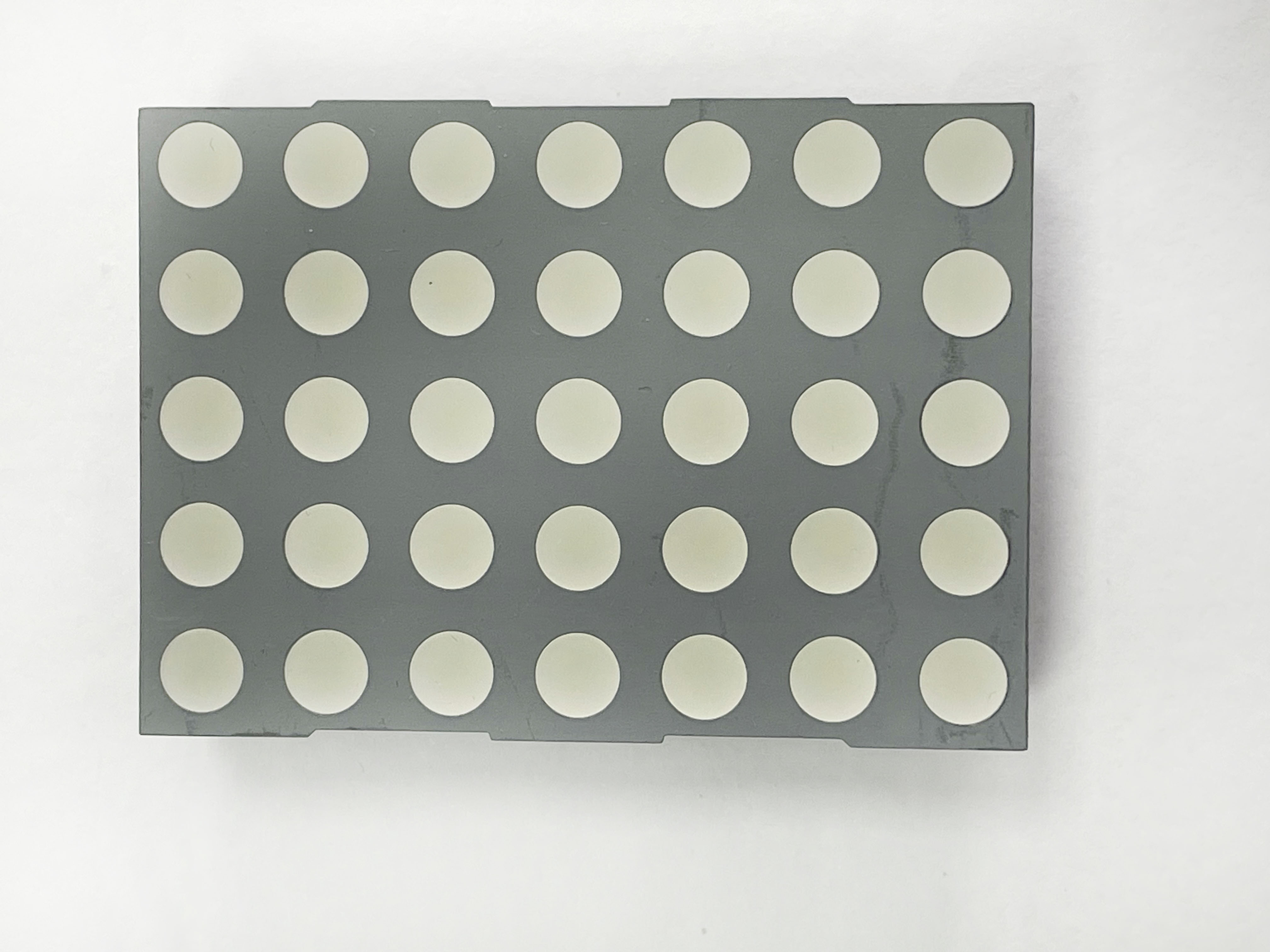

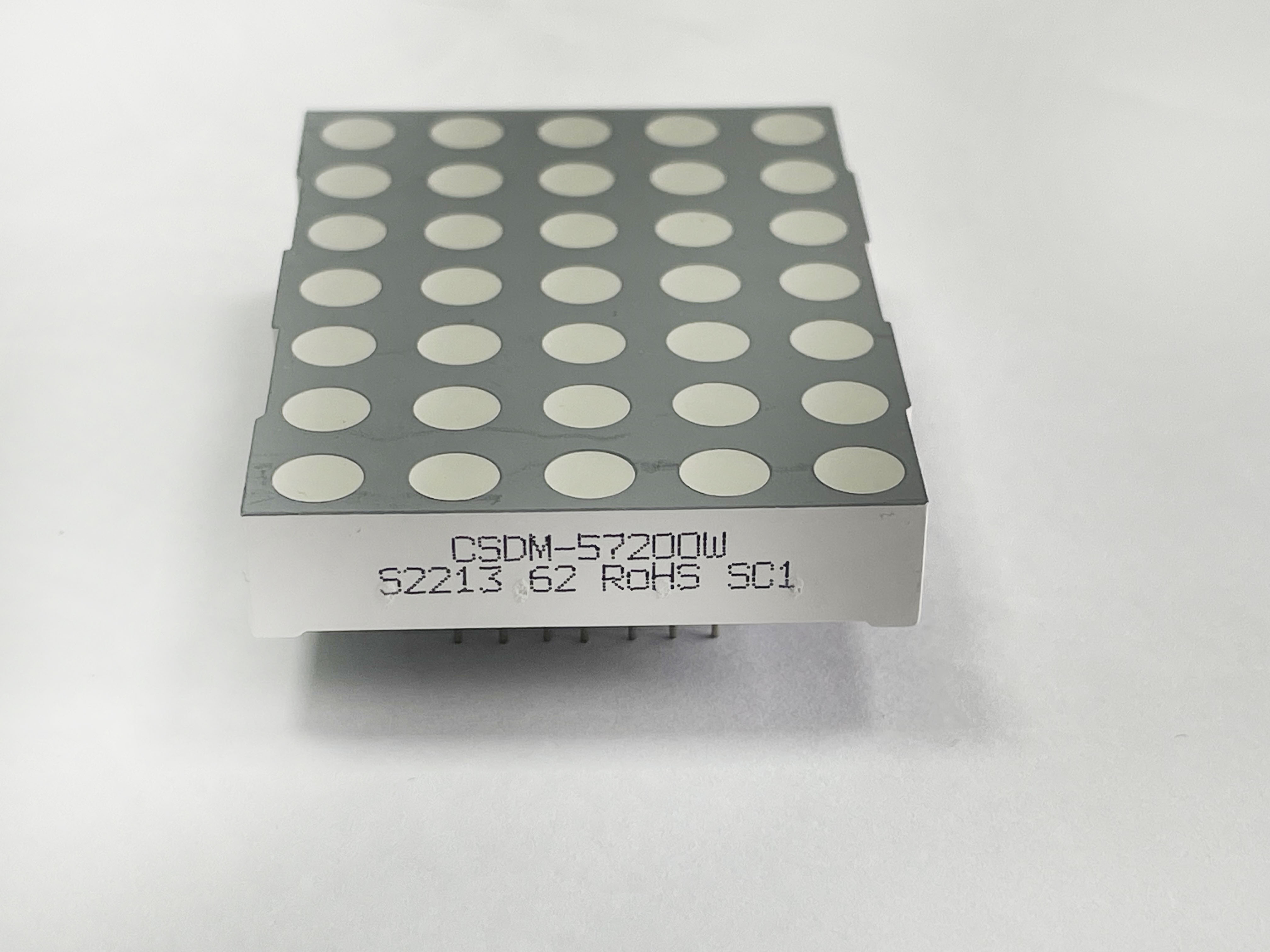

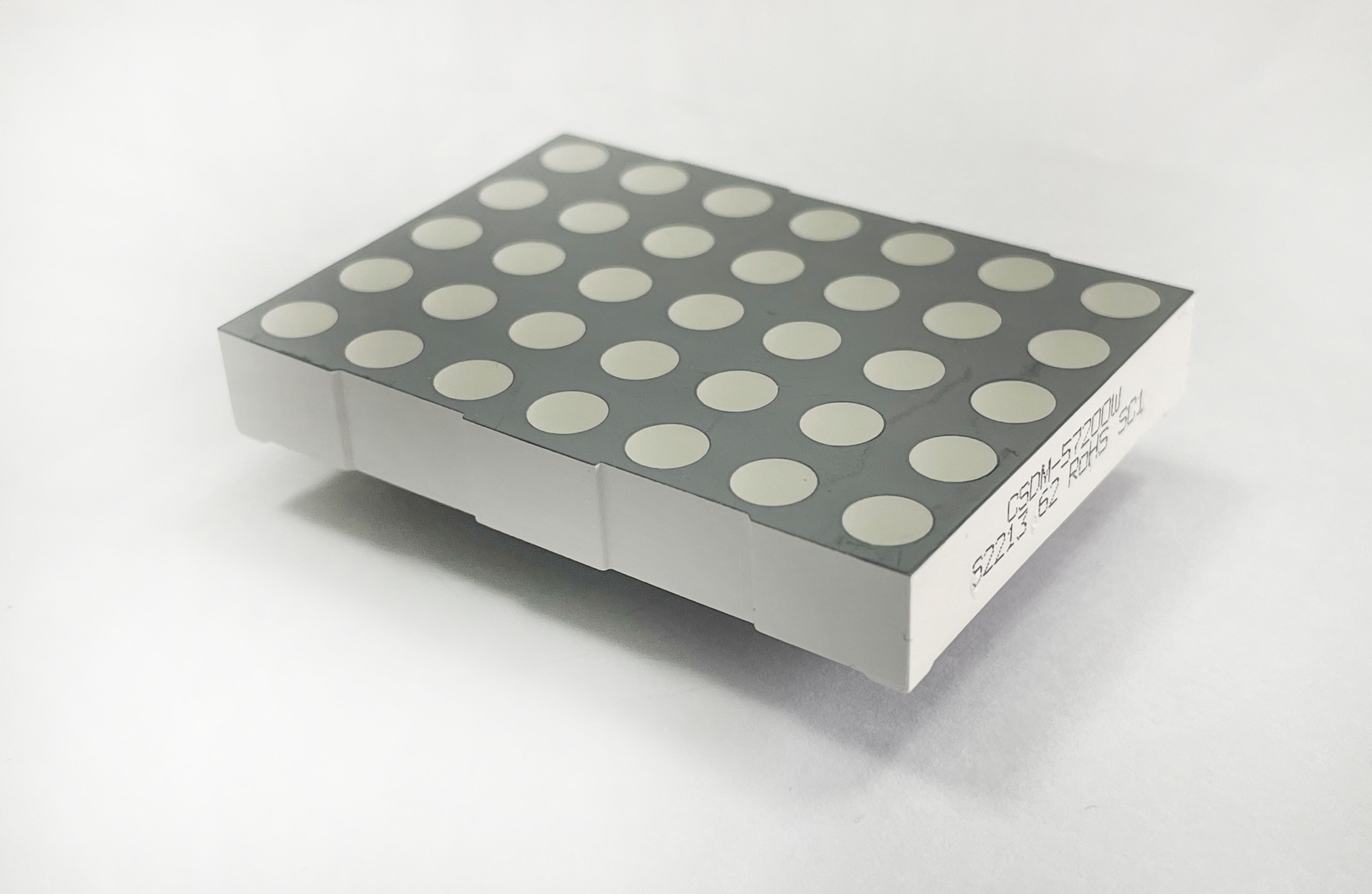

CSDM-57200X_CSDM-57201X
Basic information
1.2.0 Inch Dot-Matrix Display.
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Green | CSDM-572002 | CSDM-572012 | 525 | * | 220 | 450 | 10 |
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Green | CSDM-57200M | CSDM-57201M | 570 | * | 15 | 28 | 10 |
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Yellow | CSDM-57200T | CSDM-57201T | 590 | * | 42 | 80 | 10 |
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Orange | CSDM-57200A | CSDM-57201A | 605 | * | 50 | 90 | 10 |
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Red | CSDM-57200V | CSDM-57201V | 625 | * | 40 | 70 | 10 |
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Red | CSDM-57200L | CSDM-57201L | 630 | * | 40 | 70 | 10 |
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Red | CSDM-57200U | CSDM-57201U | 645 | * | 25 | 45 | 10 |
