CSDM-57300X_CSDM-57301X
Basic information

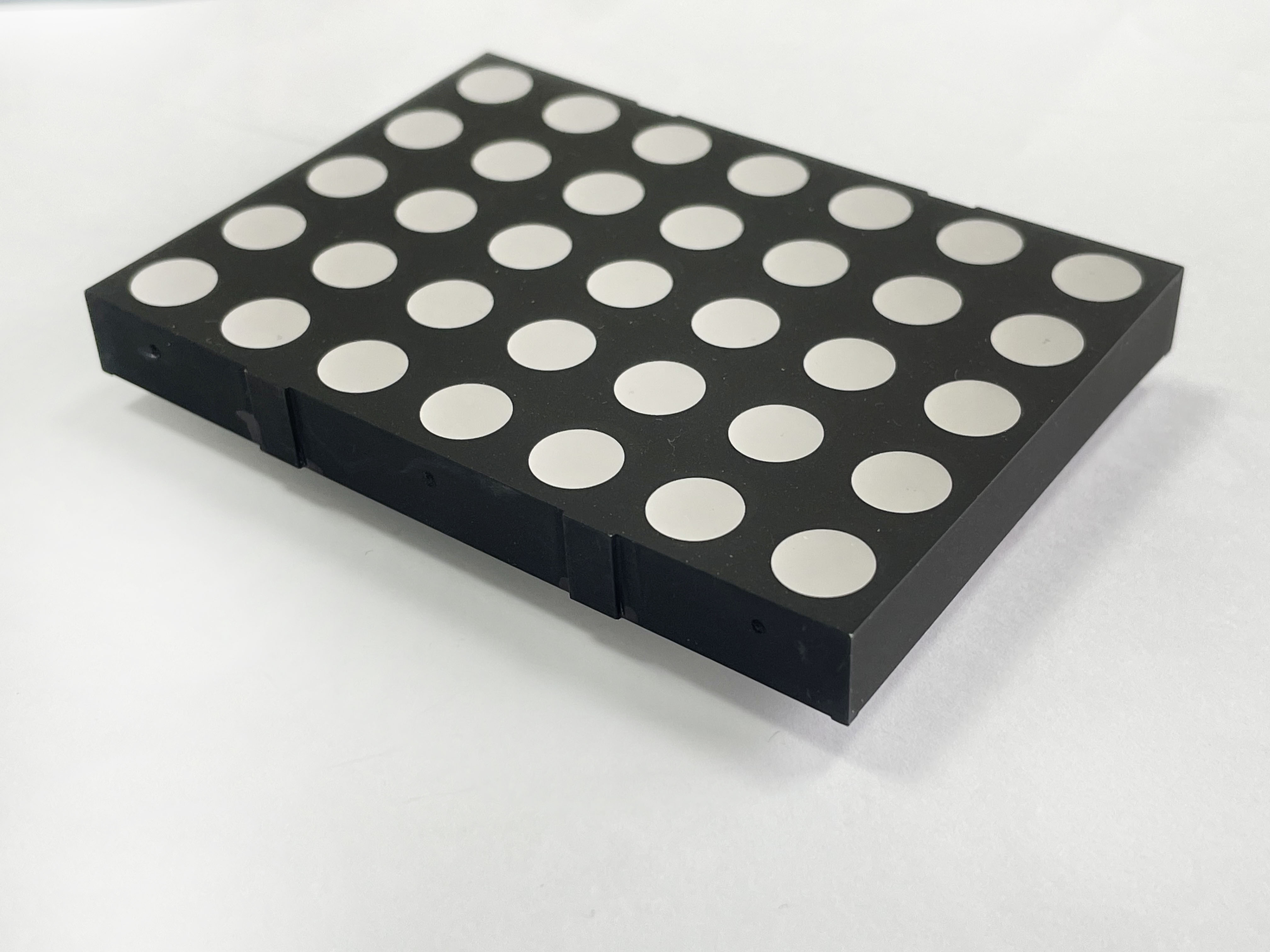

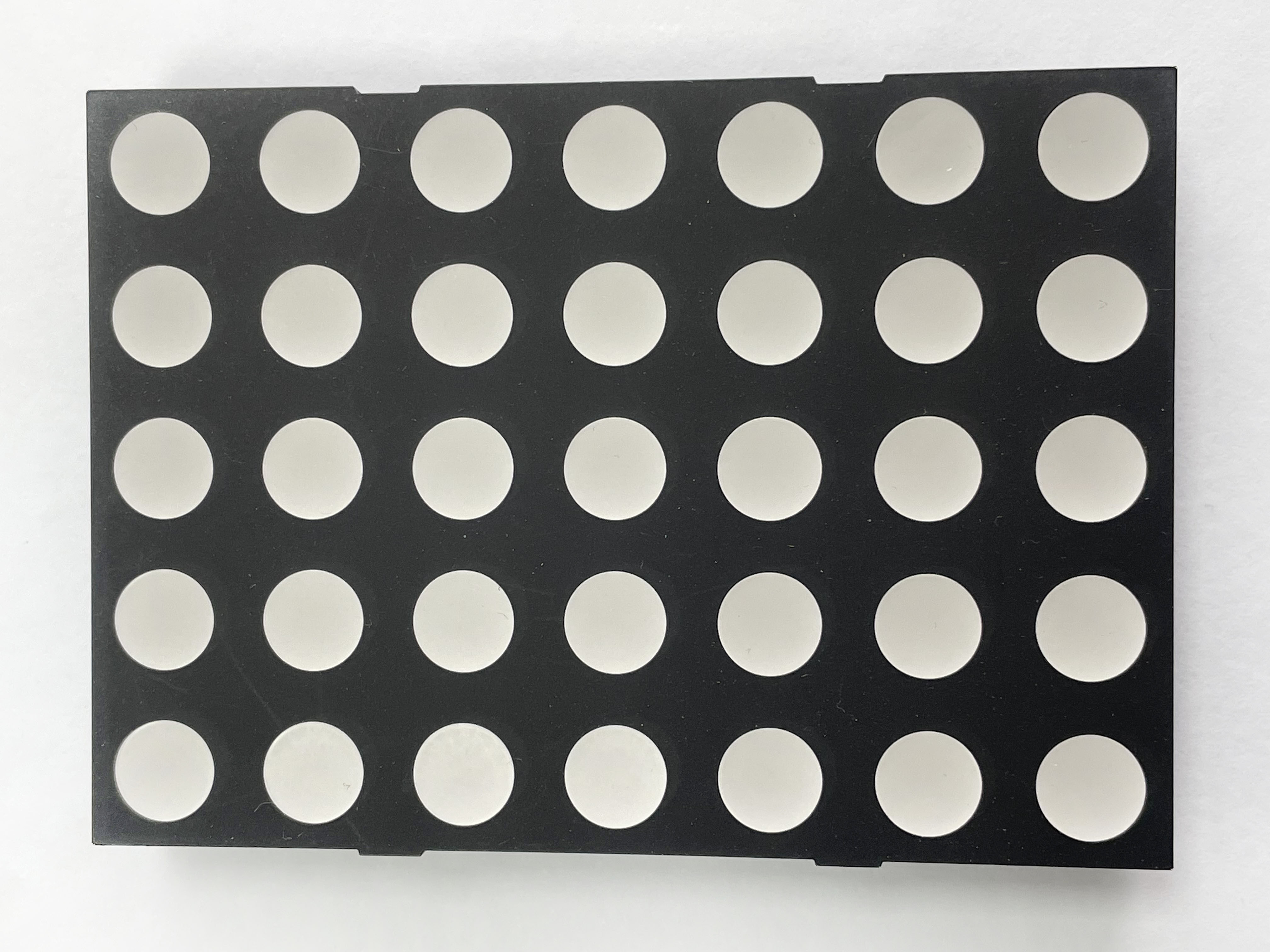

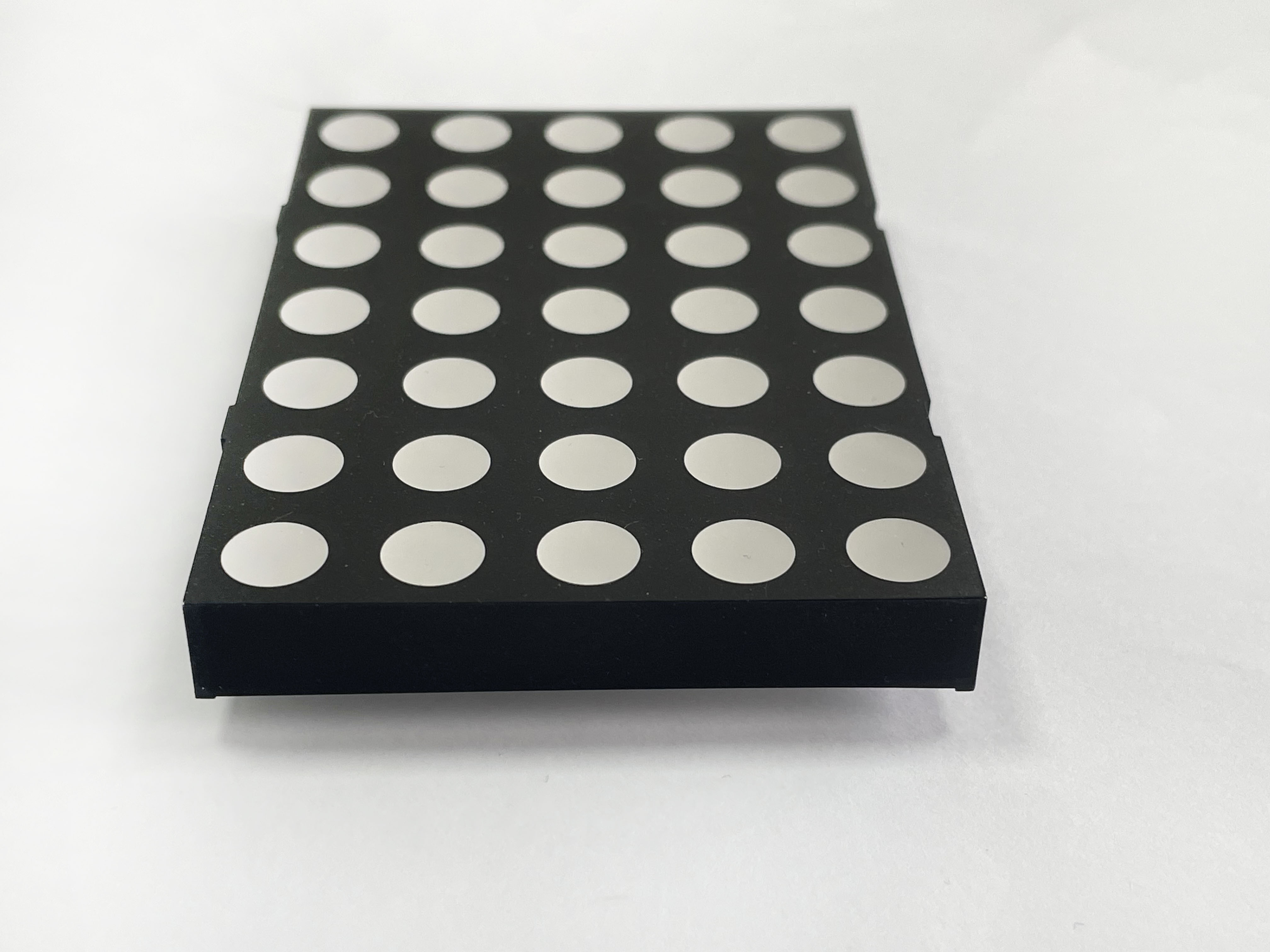

1.3.0 Inch Dot-Matrix Display .
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Green | CSDM-573002 | CSDM-573012 | 525 | * | 550 | 1000 | 10 |
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Green | CSDM-57300M | CSDM-57301M | 570 | * | 25 | 50 | 10 |
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Yellow | CSDM-57300T | CSDM-57301T | 590 | * | 70 | 140 | 10 |
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Orange | CSDM-57300A | CSDM-57301A | 605 | * | 80 | 160 | 10 |
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Red | CSDM-57300V | CSDM-57301V | 625 | * | 60 | 120 | 10 |
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Red | CSDM-57300L | CSDM-57301L | 630 | * | 60 | 120 | 10 |
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Red | CSDM-57300U | CSDM-57301U | 645 | * | 35 | 70 | 10 |
