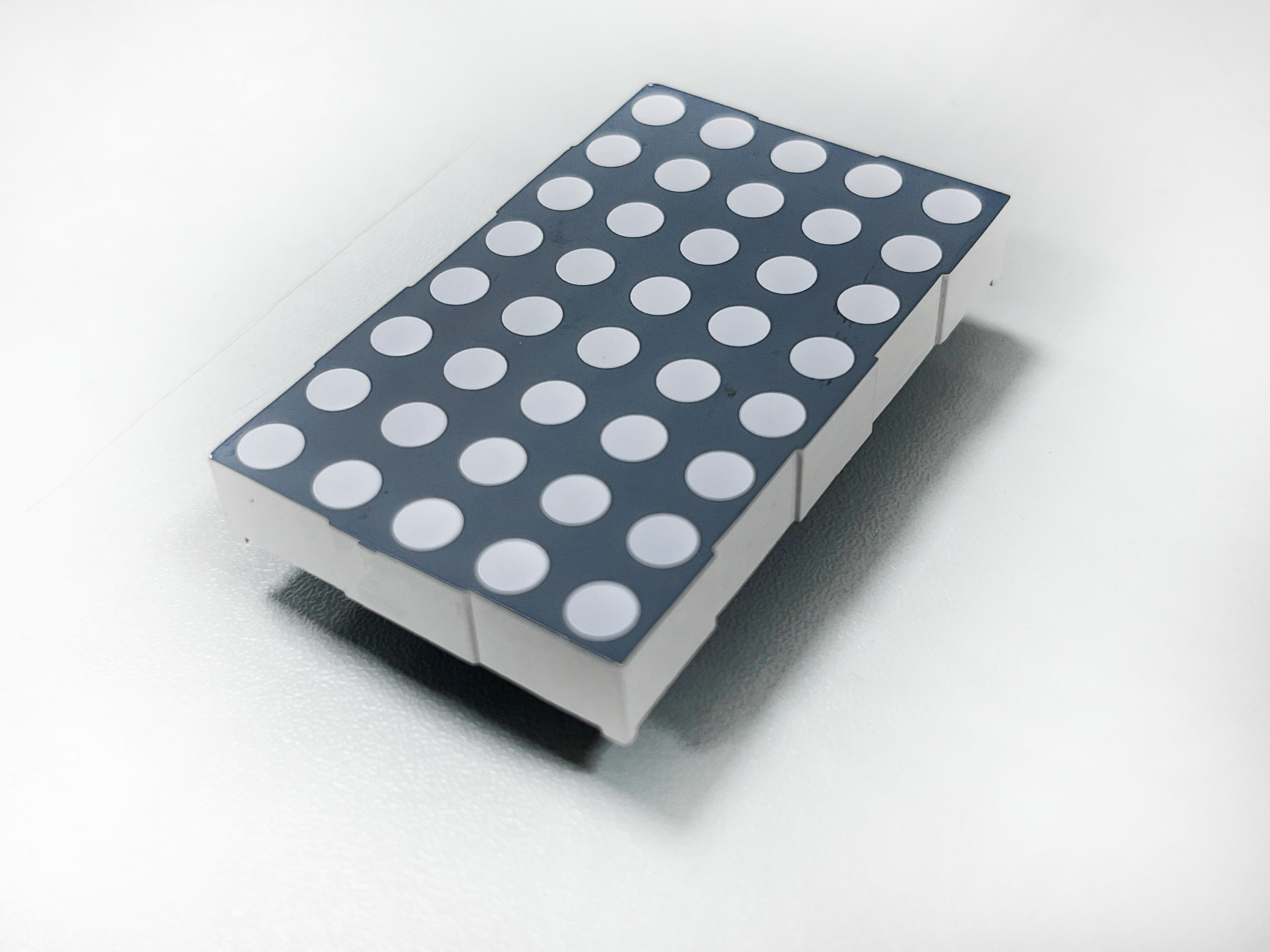

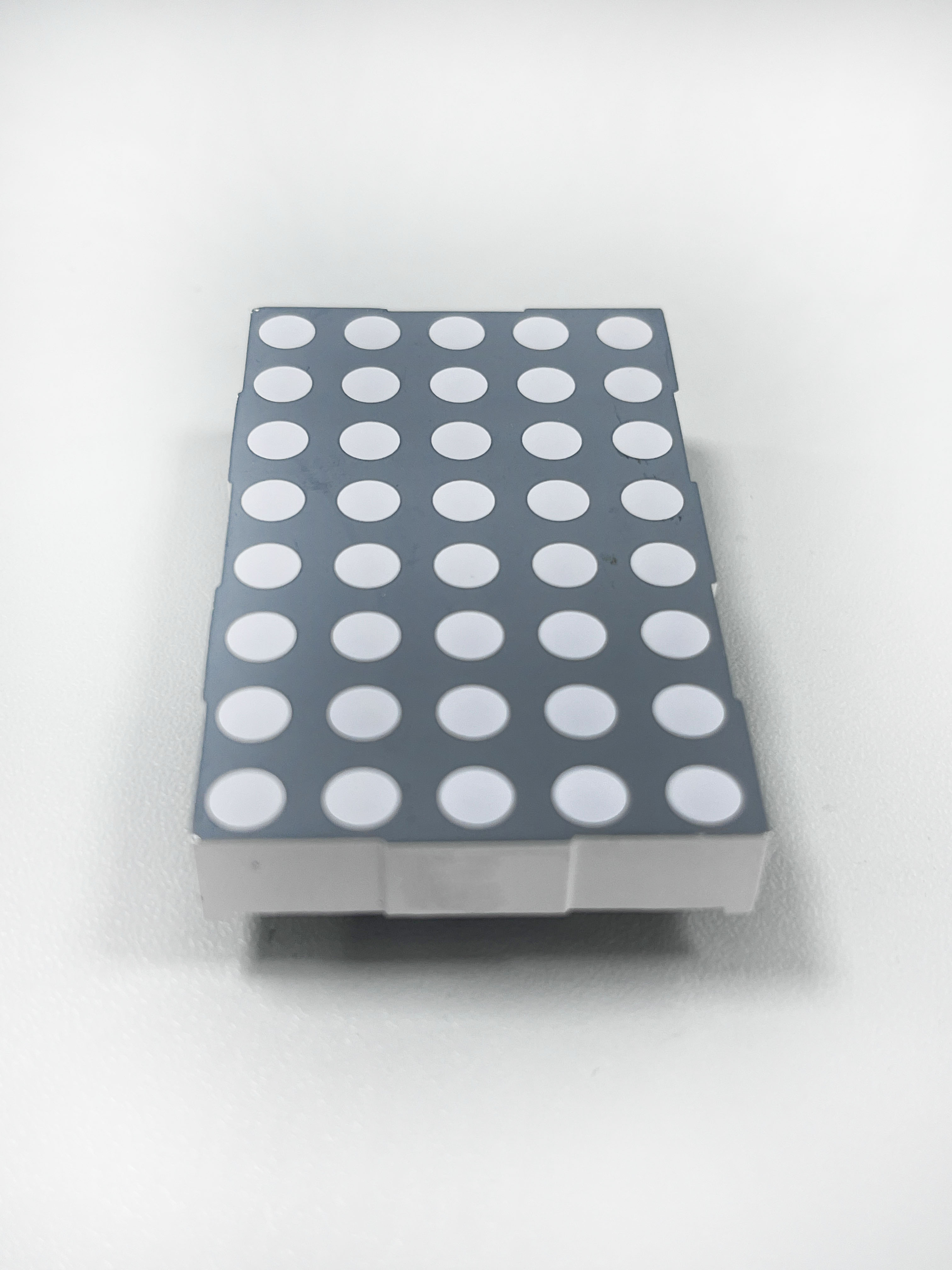

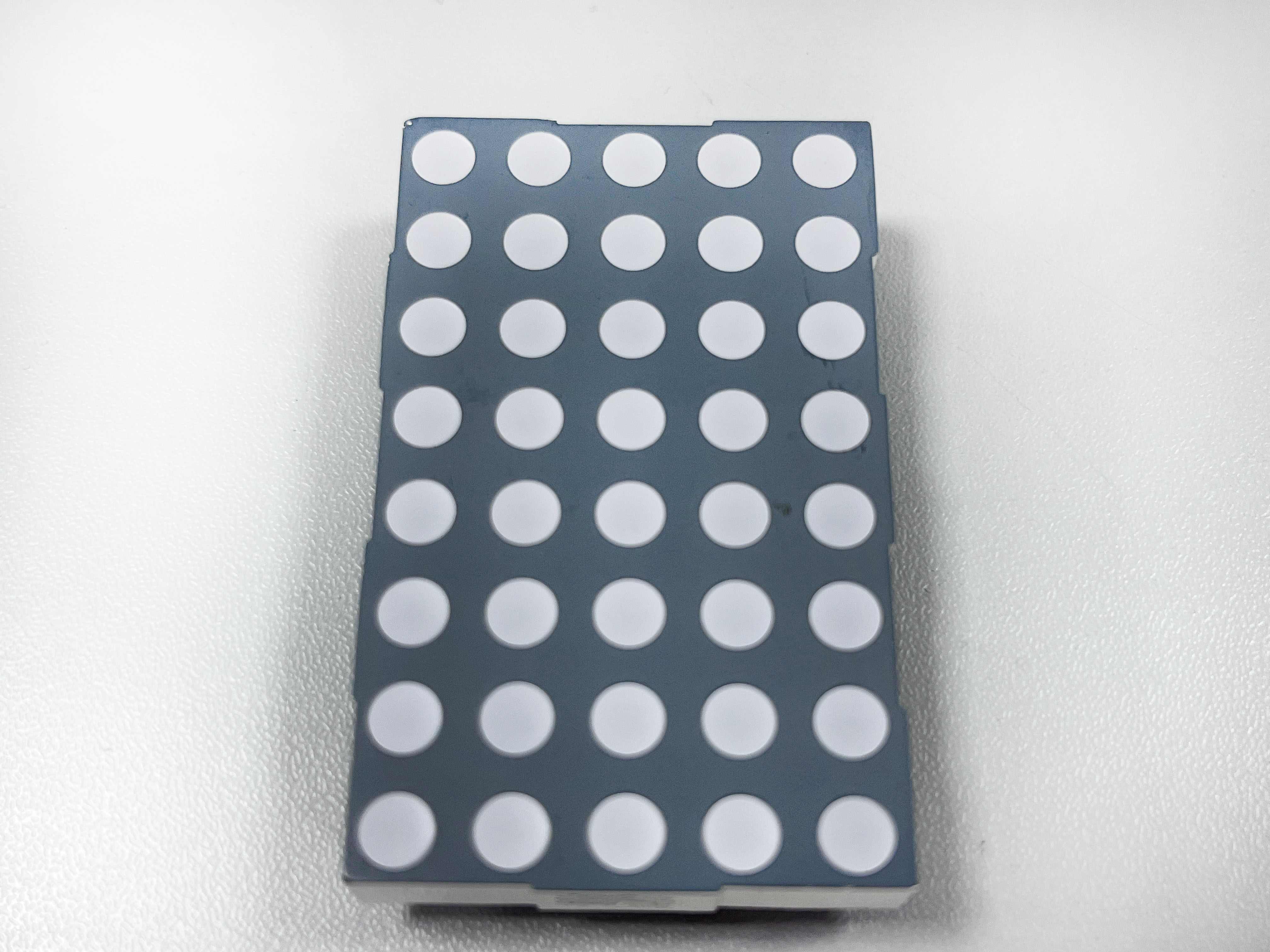

CSDM-58200X_CSDM-58201X
Basic information
1.2.3 Inch Dot-Matrix Display .
2.5*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.5*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 5*8 | 38*60.8*8.8 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Green | CSDM-582002 | CSDM-582012 | 525 | * | 220 | 450 | 10 |
| Dot 5*8 | 38*60.8*8.8 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Green | CSDM-58200M | CSDM-58201M | 570 | * | 15 | 28 | 10 |
| Dot 5*8 | 38*60.8*8.8 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Yellow | CSDM-58200T | CSDM-58201T | 590 | * | 42 | 80 | 10 |
| Dot 5*8 | 38*60.8*8.8 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Orange | CSDM-58200A | CSDM-58201A | 605 | * | 50 | 90 | 10 |
| Dot 5*8 | 38*60.8*8.8 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Red | CSDM-58200V | CSDM-58201V | 625 | * | 40 | 70 | 10 |
| Dot 5*8 | 38*60.8*8.8 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Red | CSDM-58200L | CSDM-58201L | 630 | * | 40 | 70 | 10 |
| Dot 5*8 | 38*60.8*8.8 | 58.3mm (2.3 inch) | Ø5.0mm, 7.62mm | Red | CSDM-58200U | CSDM-58201U | 645 | * | 25 | 45 | 10 |
