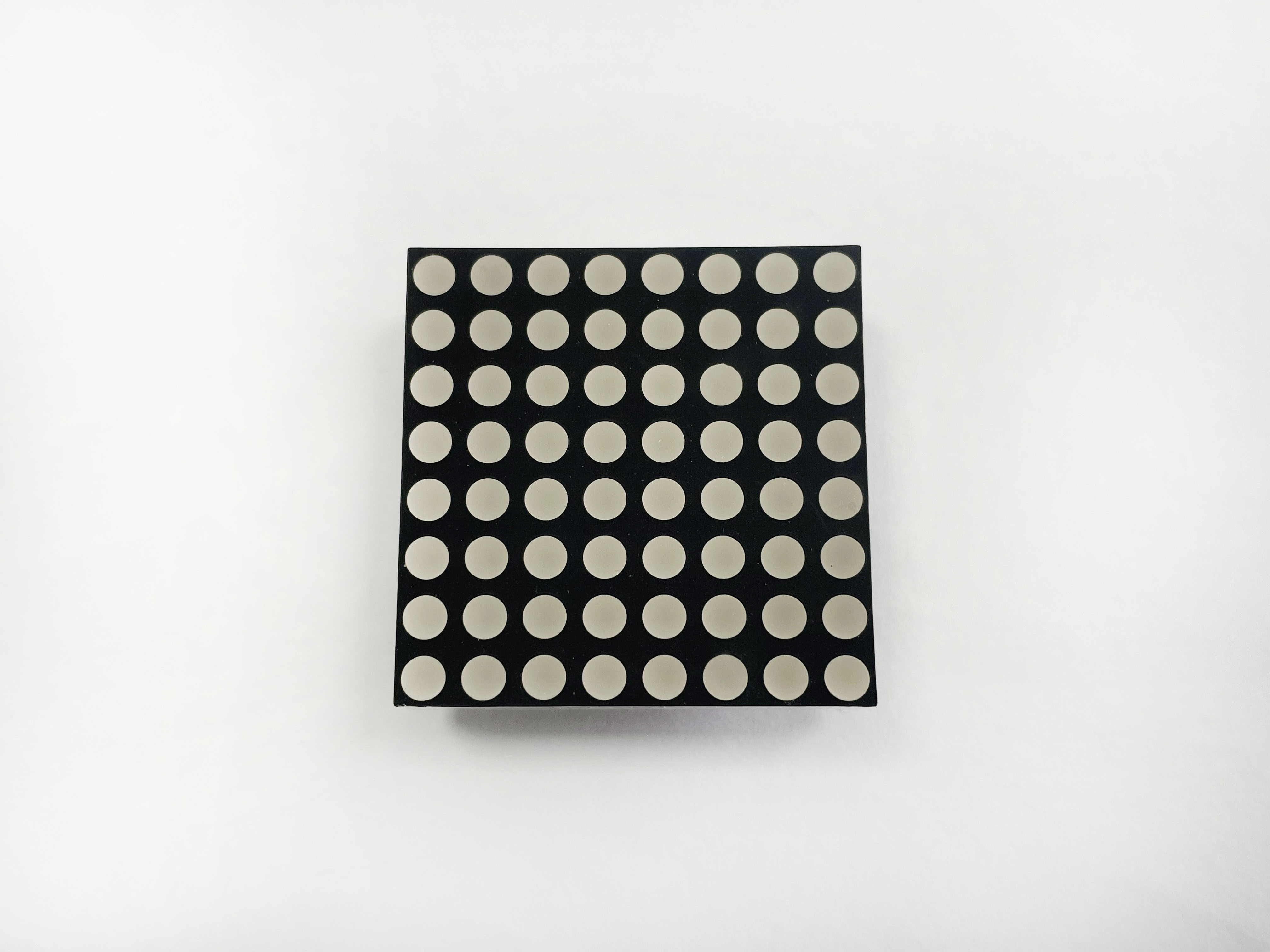

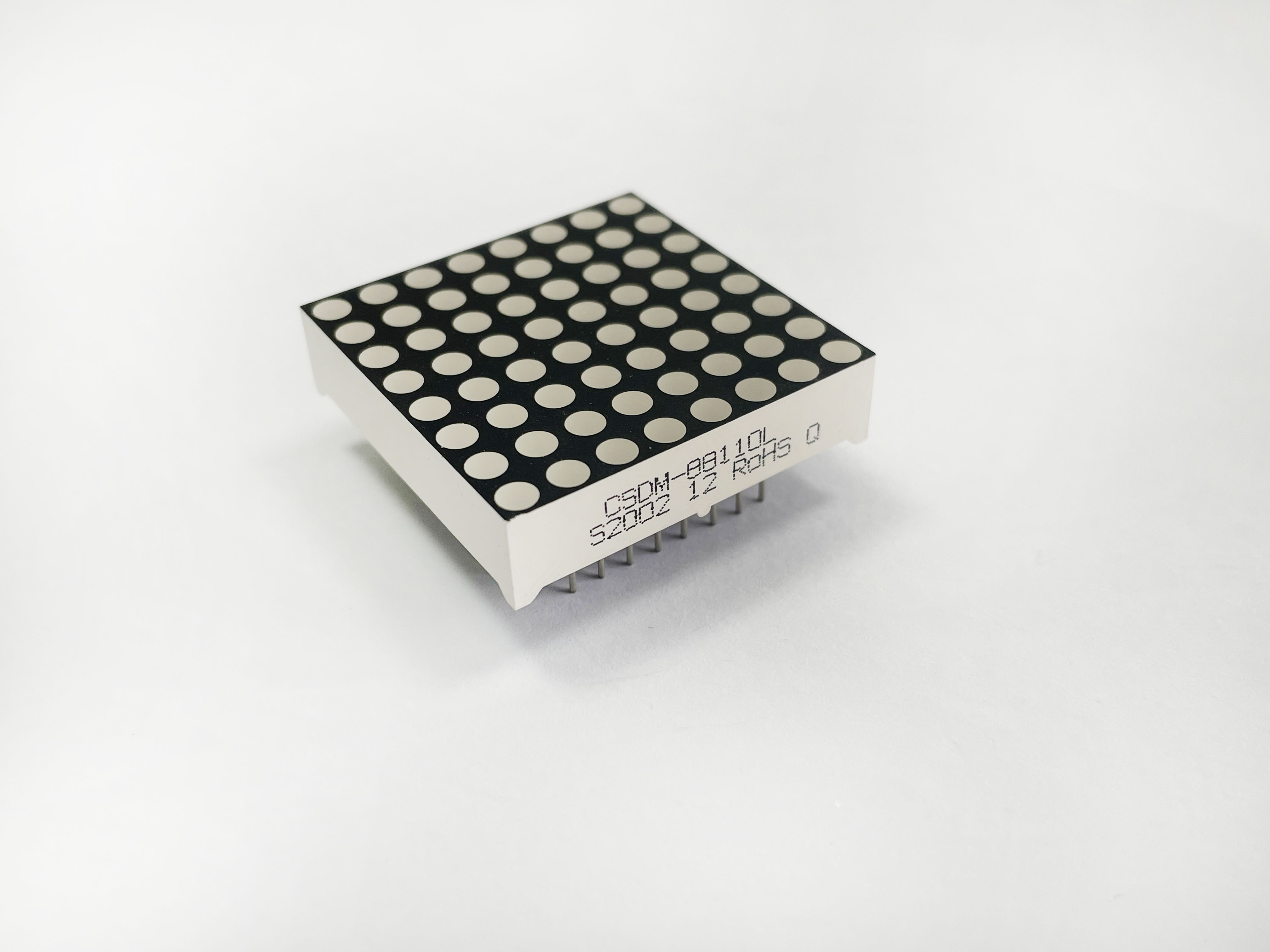

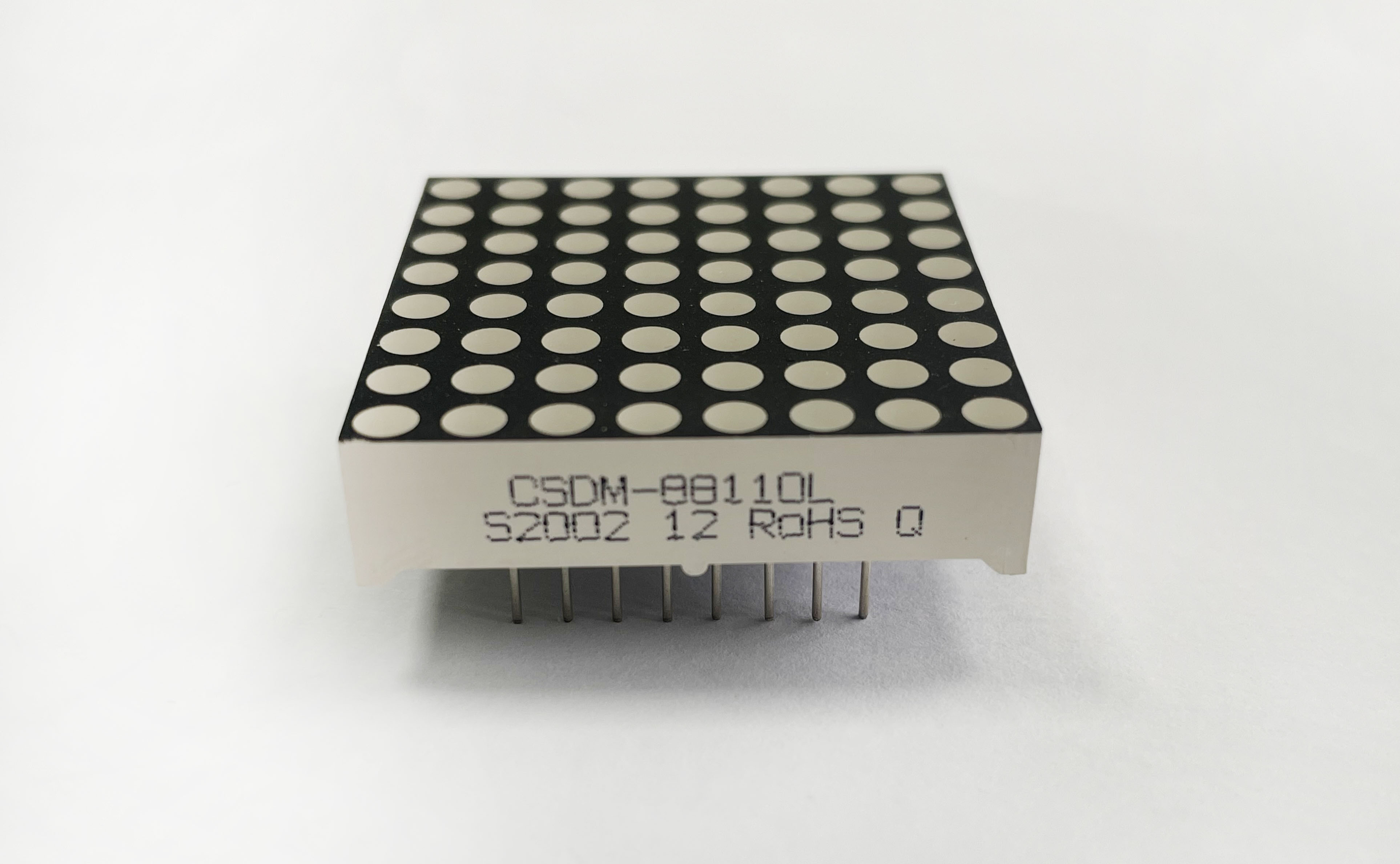

CSDM-88110X_CSDM-88111X
Basic information
1.1.2 Inch Dot-Matrix Display .
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 8*8 | 32*32*8 | 31.0mm (1.2 inch) | Ø3.0mm, 4.0mm | Green | CSDM-881102 | CSDM-881112 | 525 | * | 160 | 330 | 10 |
| Dot 8*8 | 32*32*8 | 31.0mm (1.2 inch) | Ø3.0mm, 4.0mm | Green | CSDM-88110M | CSDM-88111M | 570 | * | 12 | 22 | 10 |
| Dot 8*8 | 32*32*8 | 31.0mm (1.2 inch) | Ø3.0mm, 4.0mm | Yellow | CSDM-88110T | CSDM-88111T | 590 | * | 35 | 70 | 10 |
| Dot 8*8 | 32*32*8 | 31.0mm (1.2 inch) | Ø3.0mm, 4.0mm | Orange | CSDM-88110A | CSDM-88111A | 605 | * | 40 | 80 | 10 |
| Dot 8*8 | 32*32*8 | 31.0mm (1.2 inch) | Ø3.0mm, 4.0mm | Red | CSDM-88110V | CSDM-88111V | 625 | * | 30 | 60 | 10 |
| Dot 8*8 | 32*32*8 | 31.0mm (1.2 inch) | Ø3.0mm, 4.0mm | Red | CSDM-88110L | CSDM-88111L | 630 | * | 30 | 60 | 10 |
| Dot 8*8 | 32*32*8 | 31.0mm (1.2 inch) | Ø3.0mm, 4.0mm | Red | CSDM-88110U | CSDM-88111U | 645 | * | 20 | 40 | 10 |
