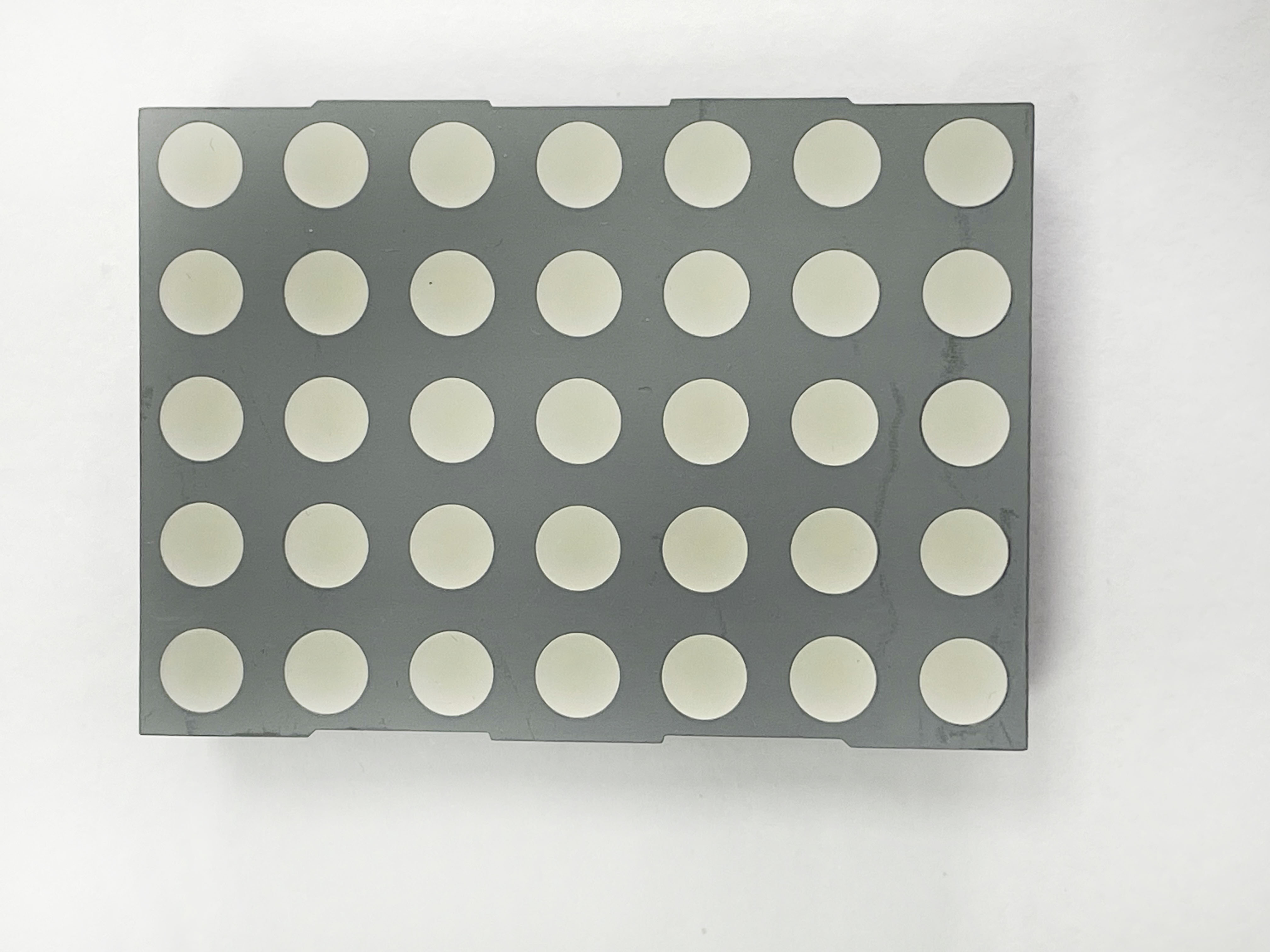

CSDM-57202VM
Basic information
1.2.0 Inch Dot-Matrix Display .
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Red | CSDM-57202VM | * | 625 | * | 40 | 70 | 10 |
| Dot 5*7 | 38*53.2*8.5 | 50.7mm (2.0 inch) | Ø5.0mm, 7.62mm | Green | CSDM-57202VM | * | 570 | * | 18 | 30 | 10 |
