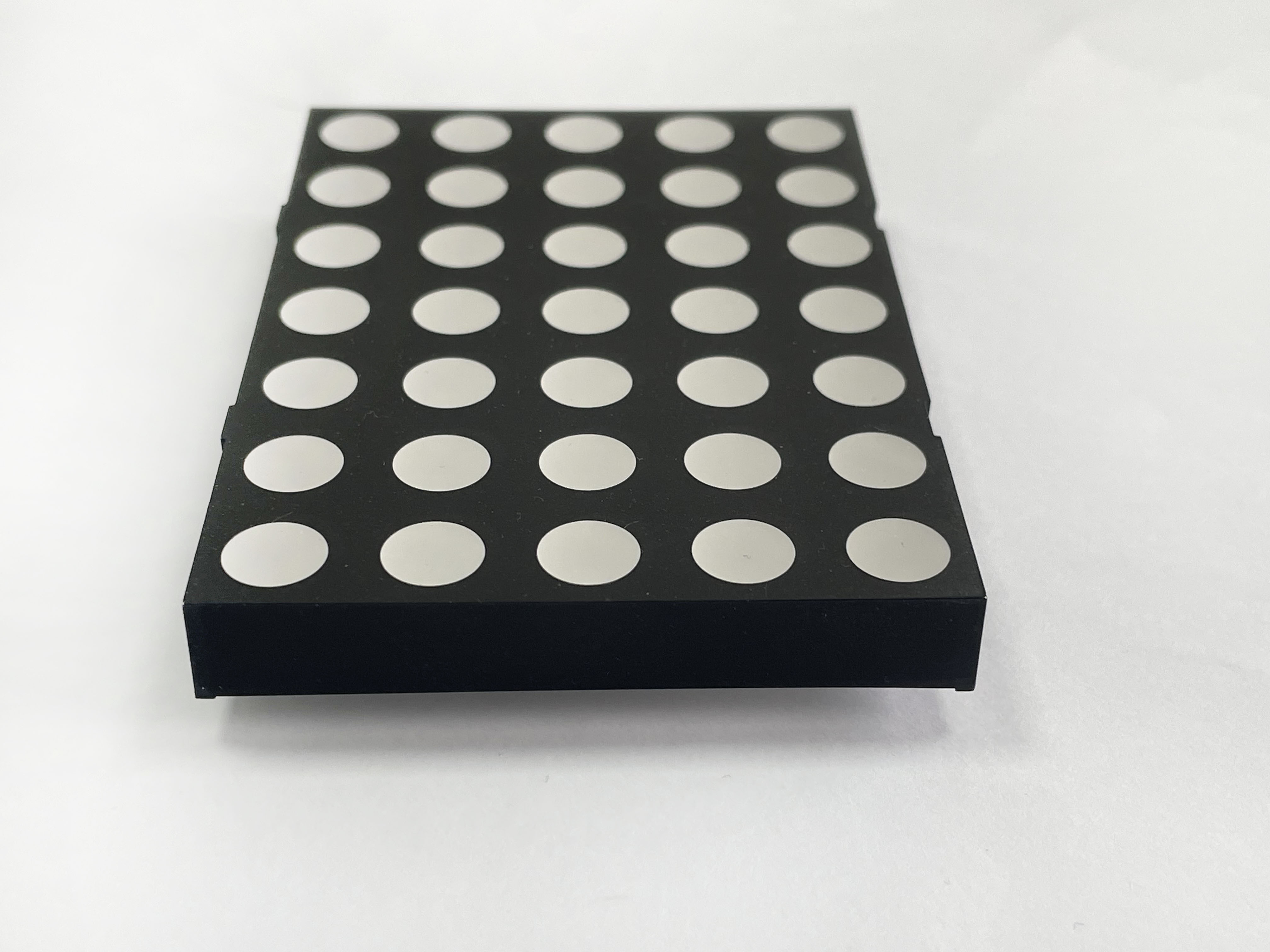

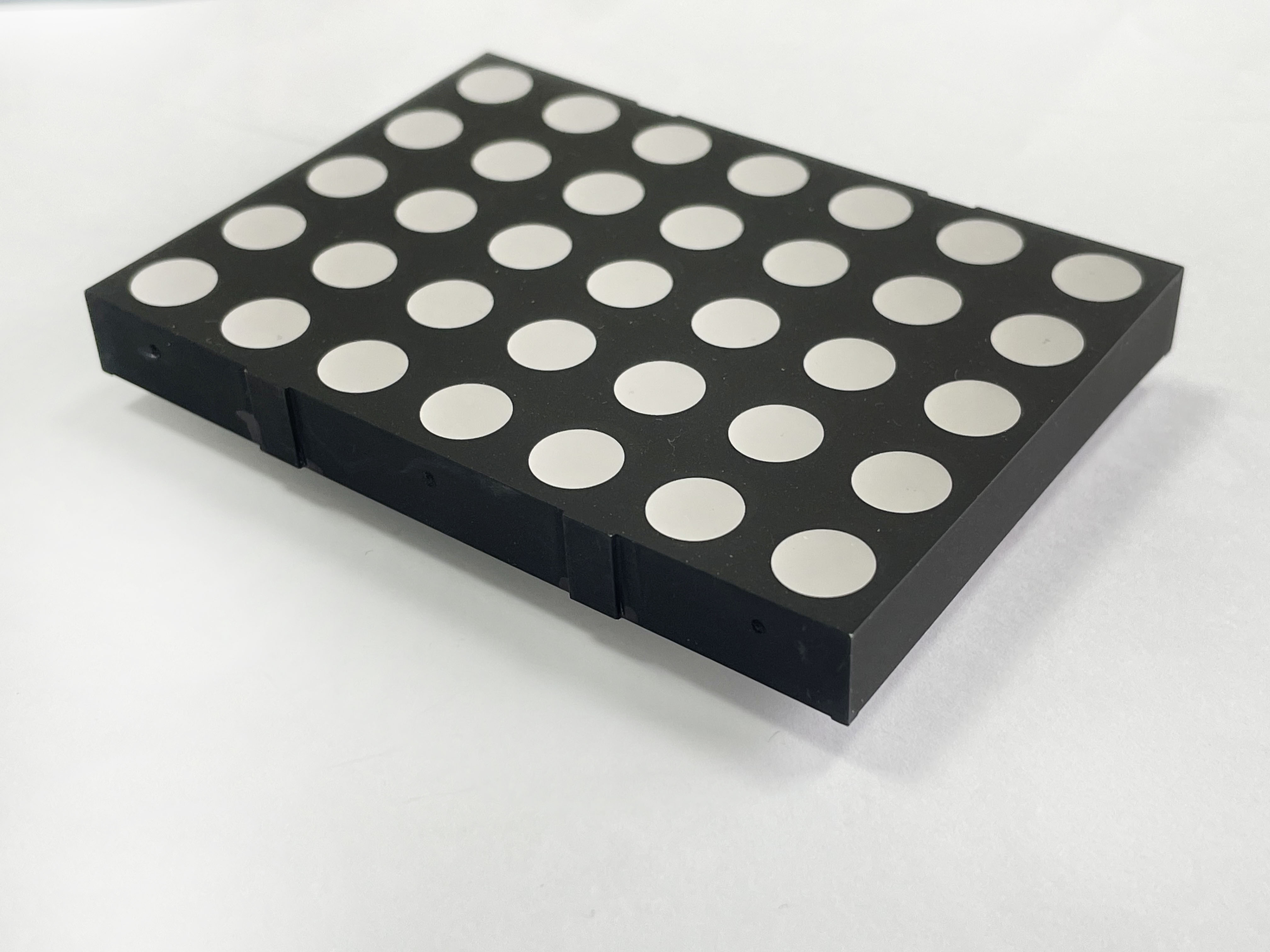

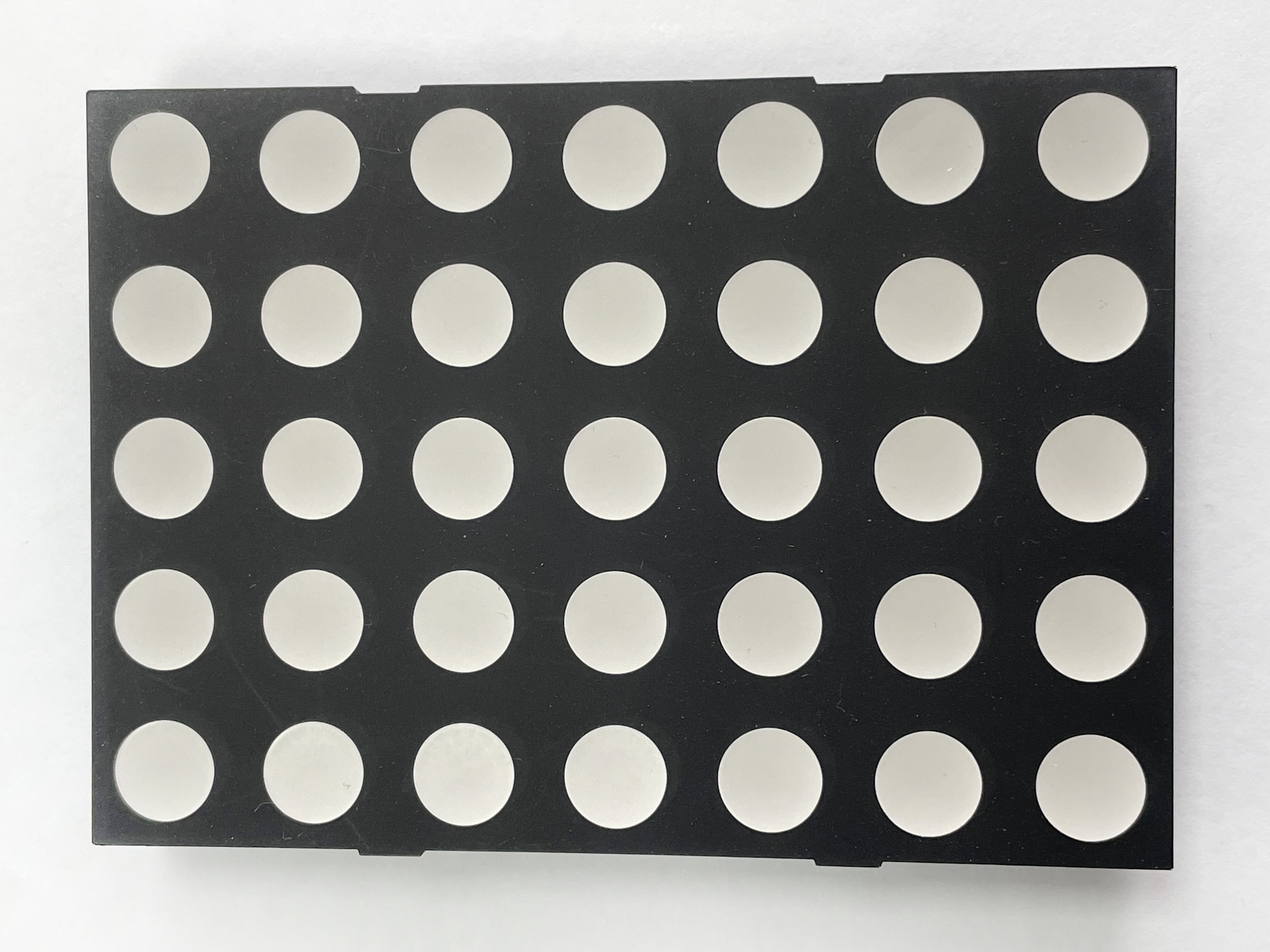

CSDM-57302VM
Basic information
1.3.0 Inch Dot-Matrix Display .
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Red | CSDM-57302VM | * | 625 | * | 70 | 120 | 10 |
| Dot 5*7 | 57*80*9 | 76.2mm (3.0 inch) | Ø7.62mm, 11.43mm | Green | CSDM-57302VM | * | 570 | * | 30 | 58 | 10 |
