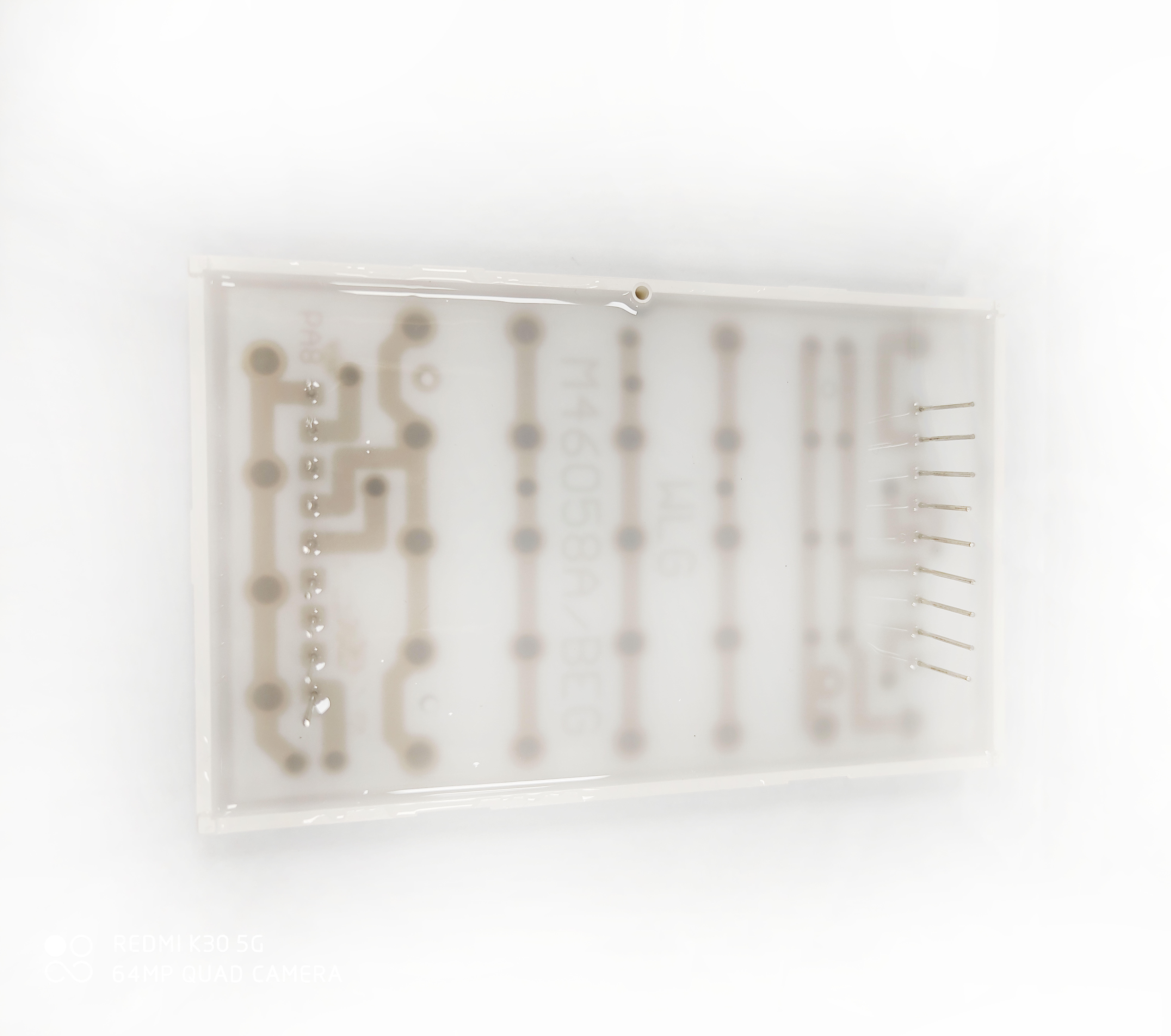

CSDM-58402UM
Basic information
1.4.6 Inch Dot-Matrix Display .
2.5*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
2.5*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 5*8 | 76*121.6*13 | 116.7mm (4.6 inch) | Ø10.0mm, 15.24mm | Red | CSDM-58402UM | * | 645 | * | 35 | 70 | 10 |
| Dot 5*8 | 76*121.6*13 | 116.7mm (4.6 inch) | Ø10.0mm, 15.24mm | Green | CSDM-58402UM | * | 570 | * | 30 | 60 | 10 |
