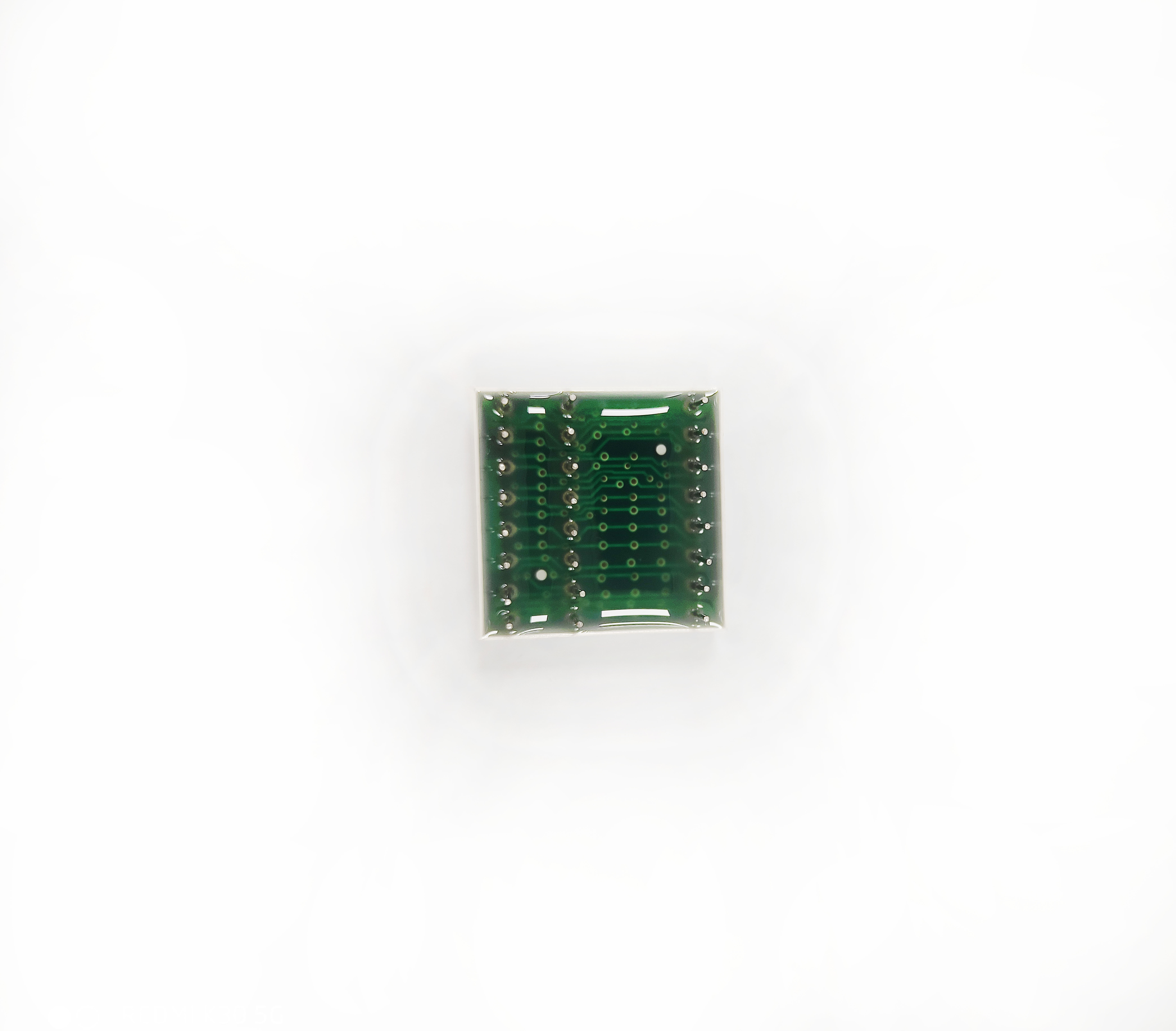

CSDM-88008V2
Basic information

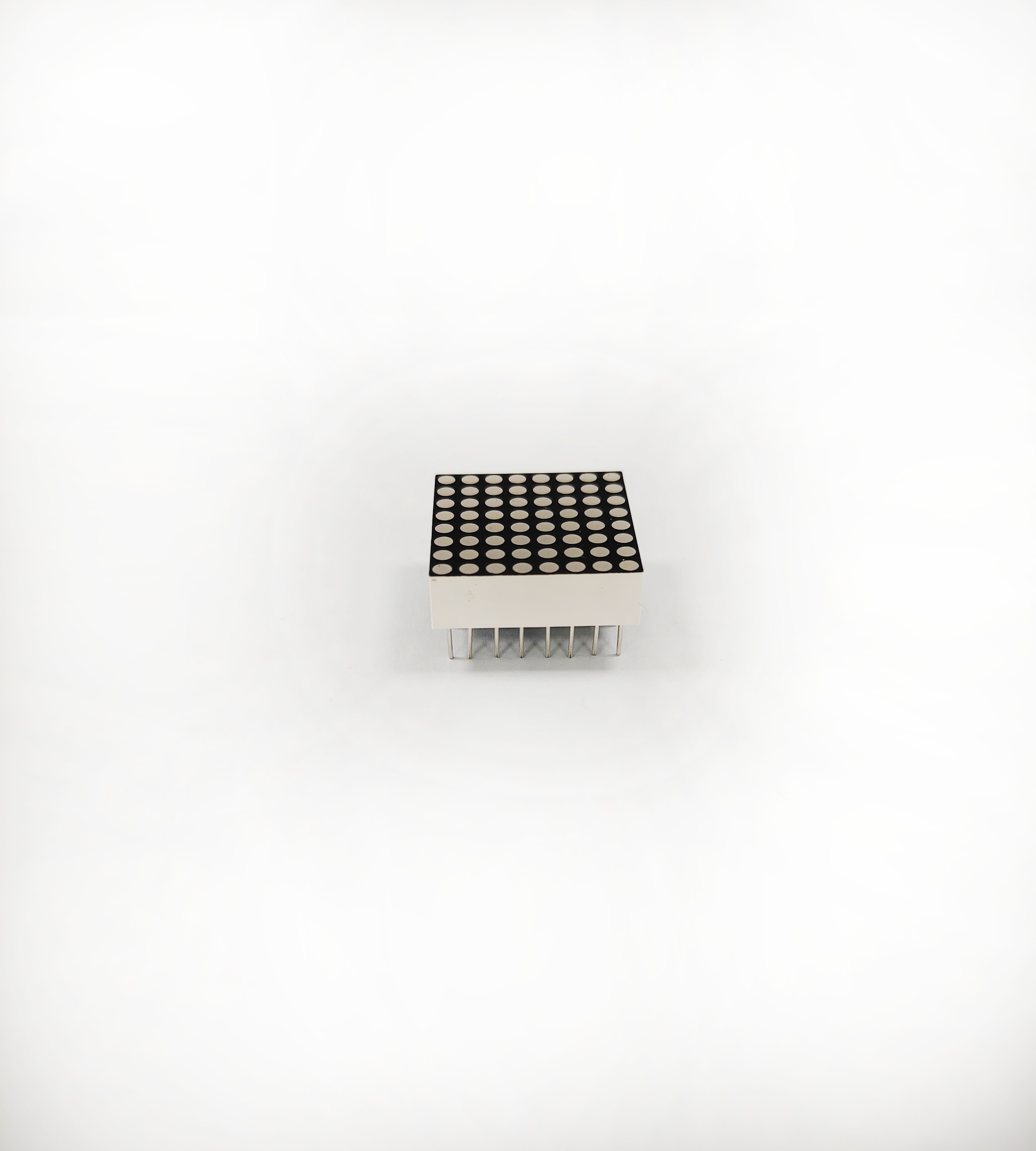

1.0.76 Inch Dot-Matrix Display .
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
2.8*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
Featured Benefits
Product specifications
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 8*8 | 20*20*5.9 | 19.4mm (0.76 inch) | Ø1.9mm, 2.5mm | Red | CSDM-88008V2 | * | 625 | * | 20 | 40 | 10 |
| Dot 8*8 | 20*20*5.9 | 19.4mm (0.76 inch) | Ø1.9mm, 2.5mm | Green | CSDM-88008V2 | * | 525 | * | 120 | 230 | 10 |
