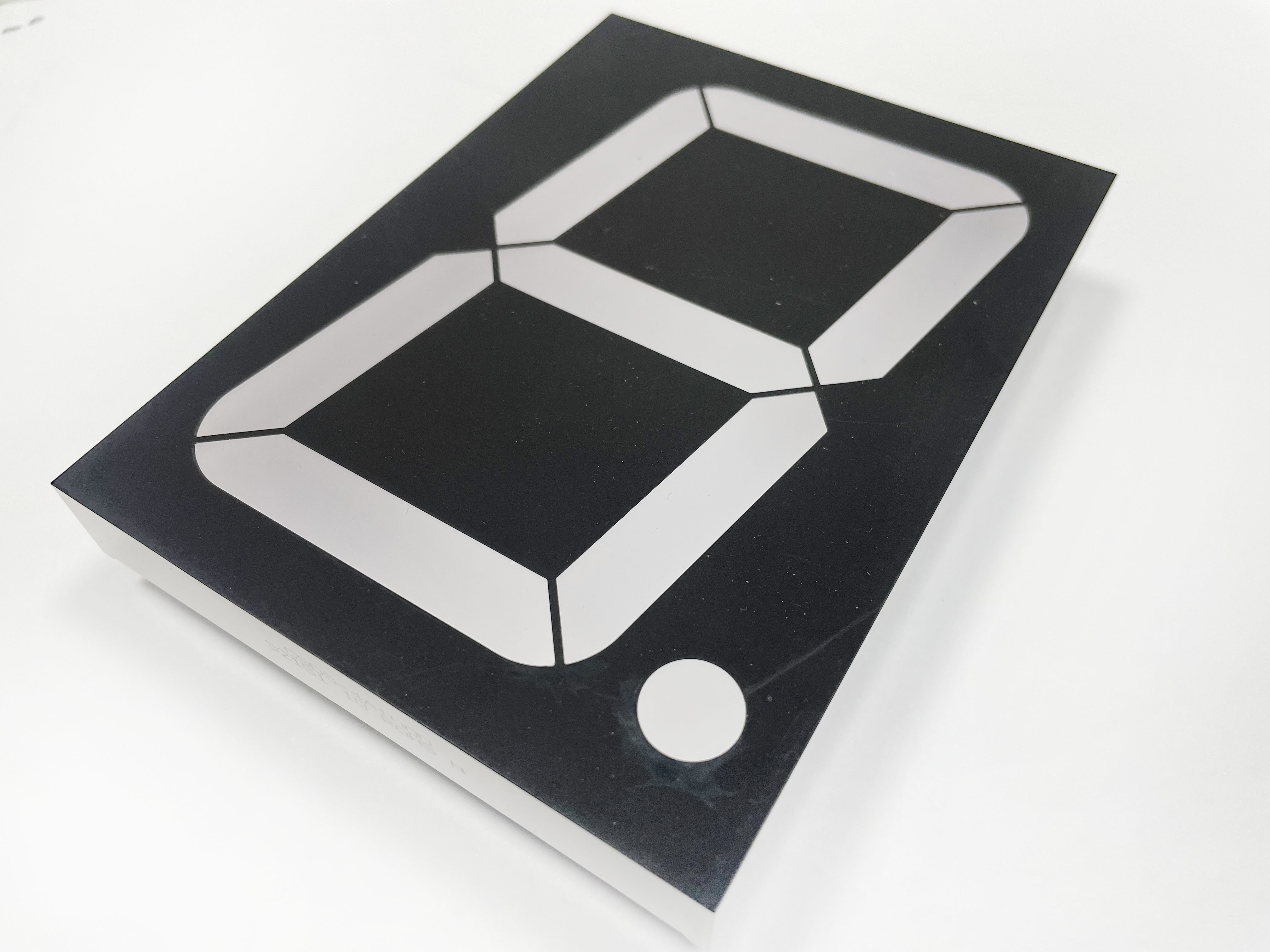

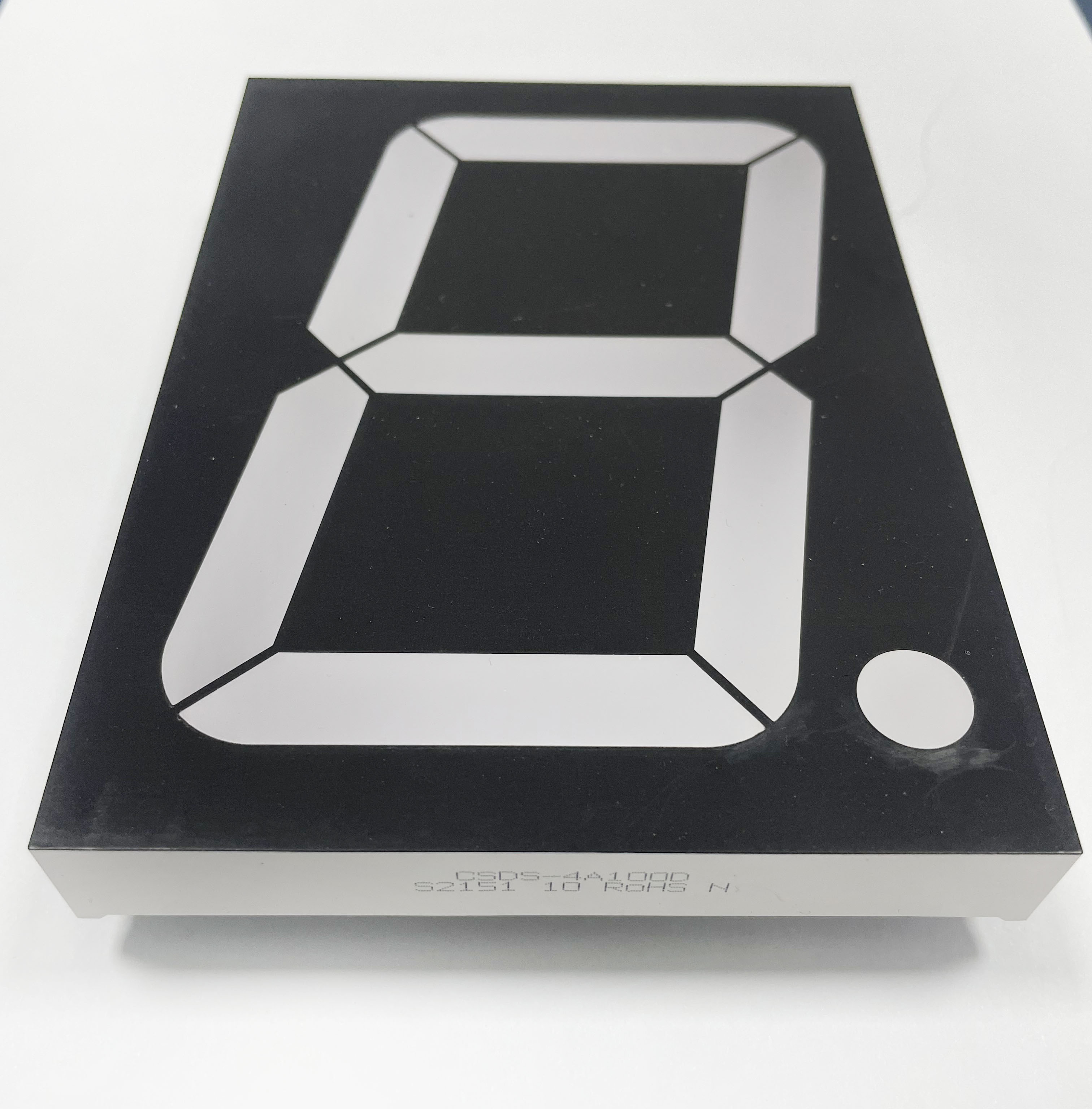

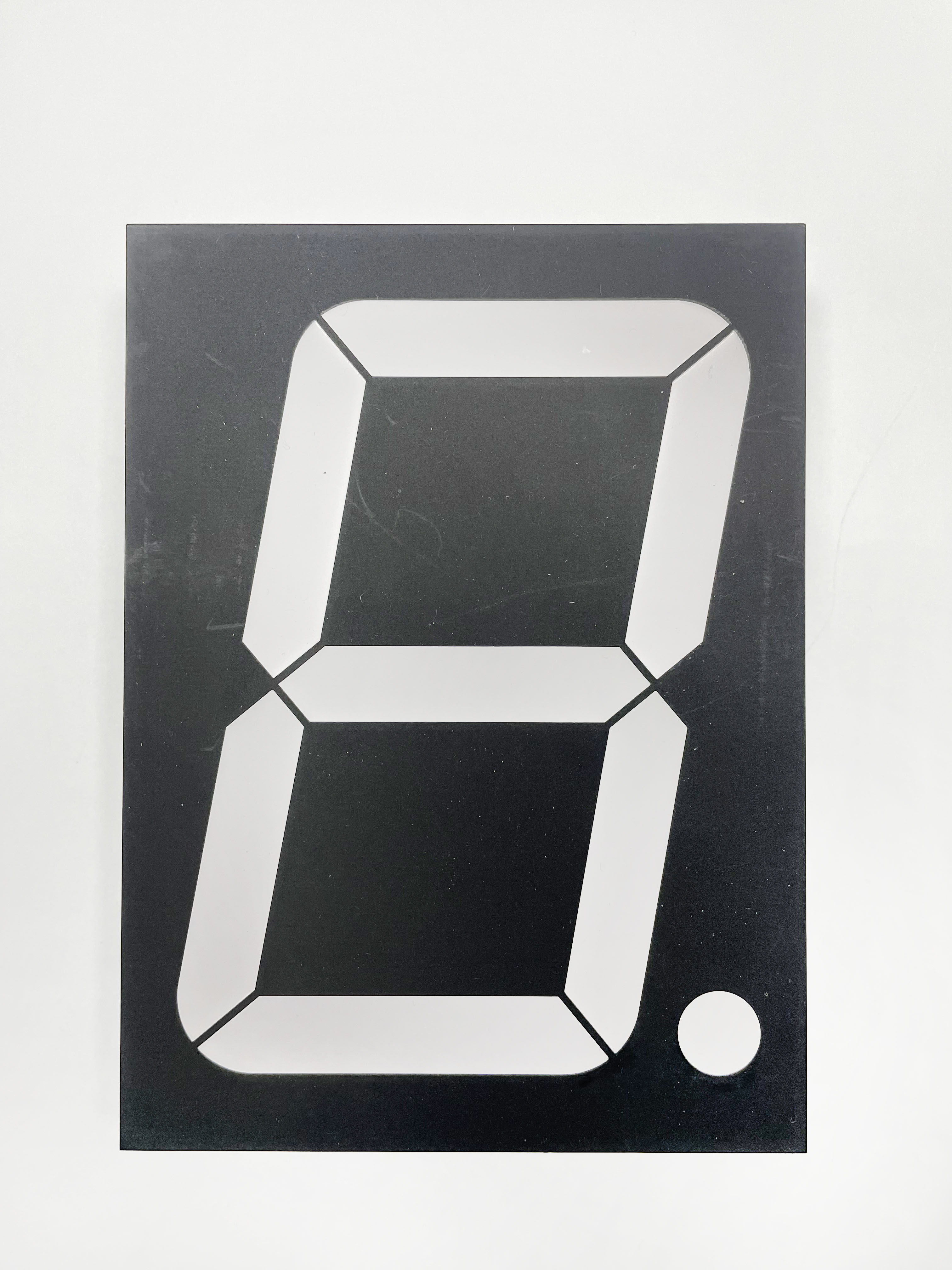

CSDS-4A100_CSDS-4A101
基本信息
1.Single digit display .
2.4.0 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.4.0 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
特色优点
产品规格
| Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | |||||
| 4.00 inch | 90*122*15 | Green | CSDS-4A1002 | CSDS-4A1012 | 525 | 1000 | 2000 | 10 |
| 4.00 inch | 90*122*15 | Green | CSDS-4A100M | CSDS-4A101M | 570 | 50 | 120 | 10 |
| 4.00 inch | 90*122*15 | Yellow | CSDS-4A100T | CSDS-4A101T | 590 | 150 | 330 | 10 |
| 4.00 inch | 90*122*15 | Orange | CSDS-4A100A | CSDS-4A101A | 605 | 150 | 350 | 10 |
| 4.00 inch | 90*122*15 | Red | CSDS-4A100V | CSDS-4A101V | 625 | 130 | 290 | 10 |
| 4.00 inch | 90*122*15 | Red | CSDS-4A100L | CSDS-4A101L | 630 | 130 | 250 | 10 |
| 4.00 inch | 90*122*15 | Red | CSDS-4A100U | CSDS-4A101U | 645 | 80 | 180 | 10 |
