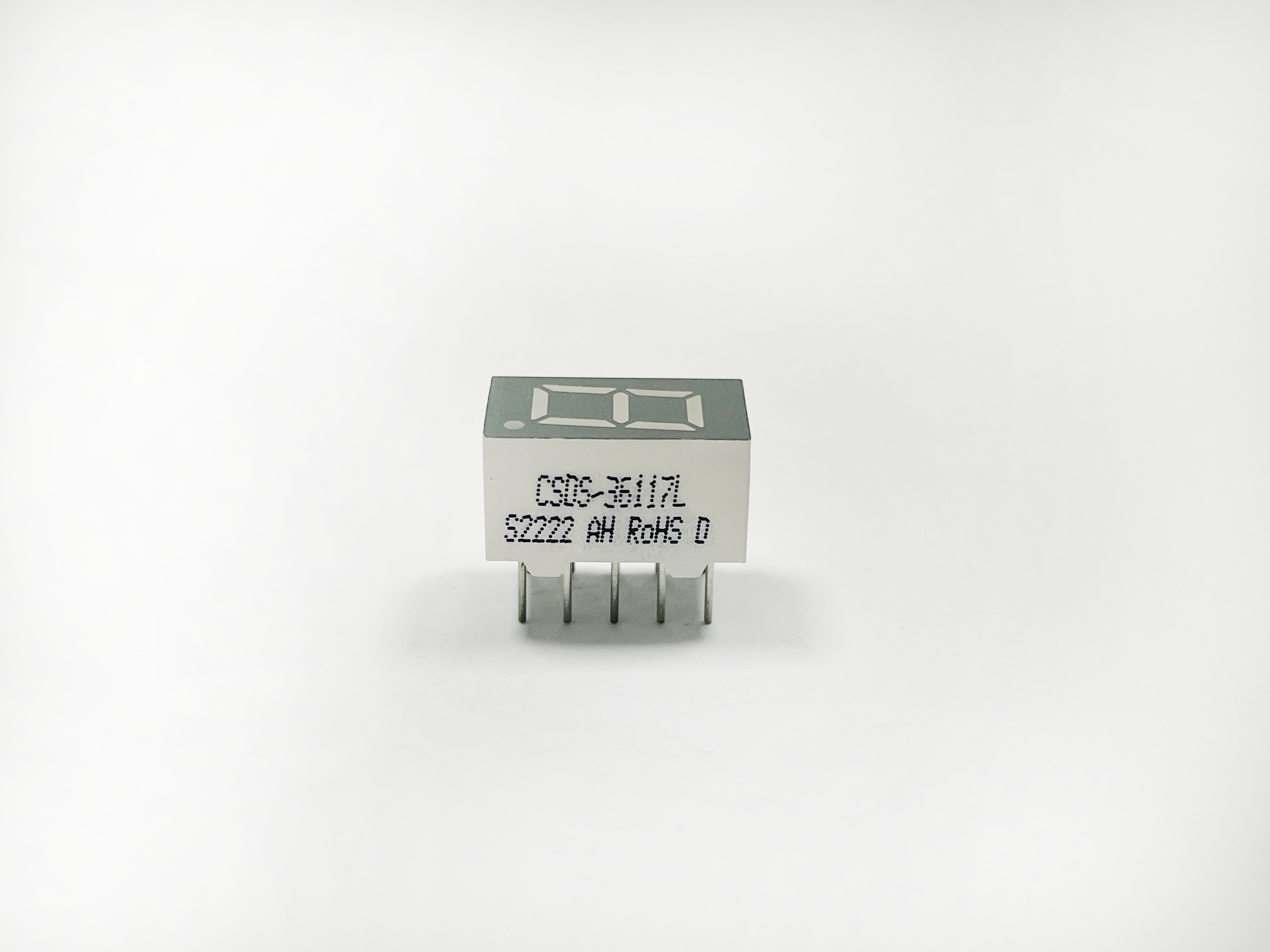

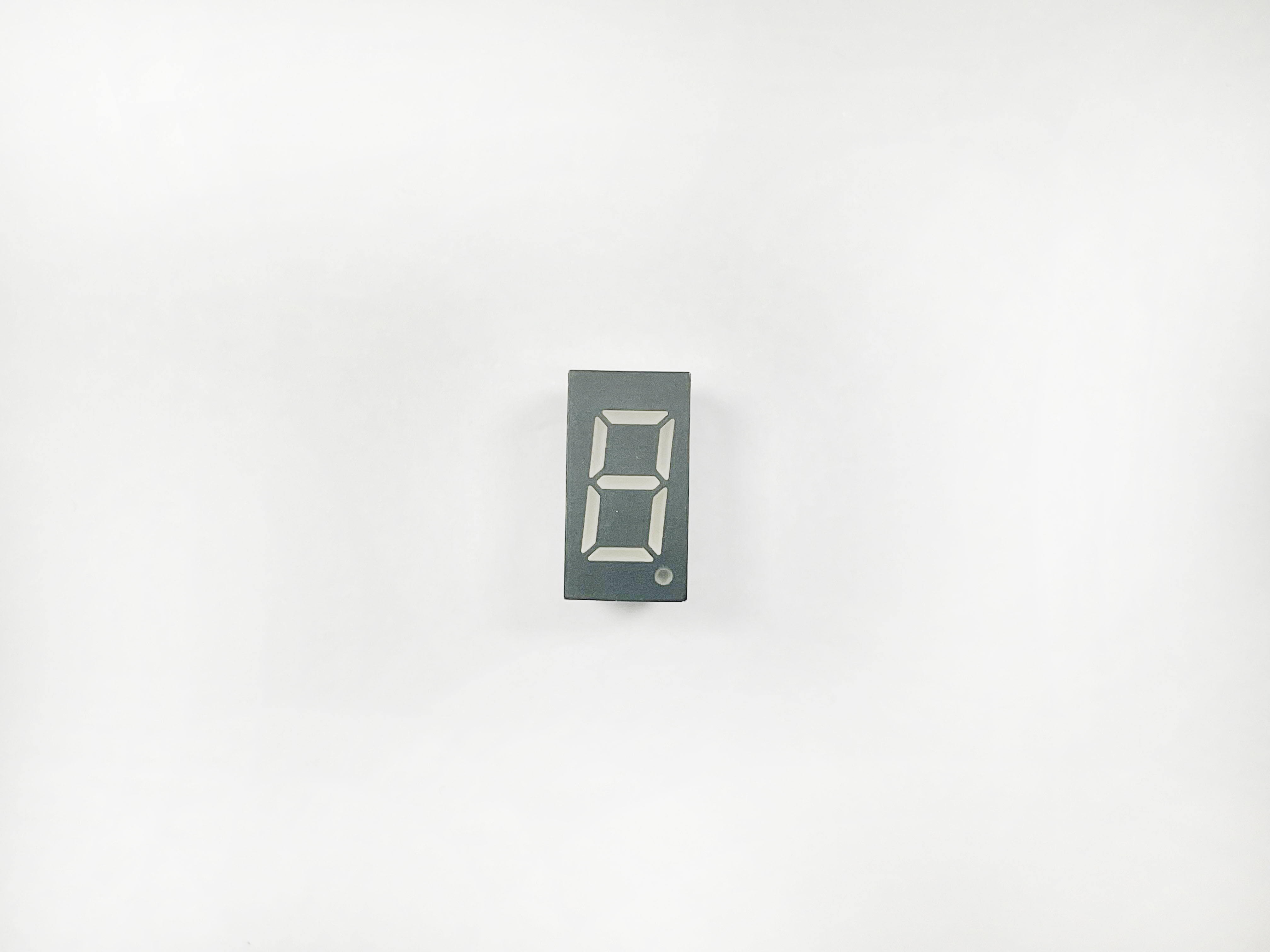

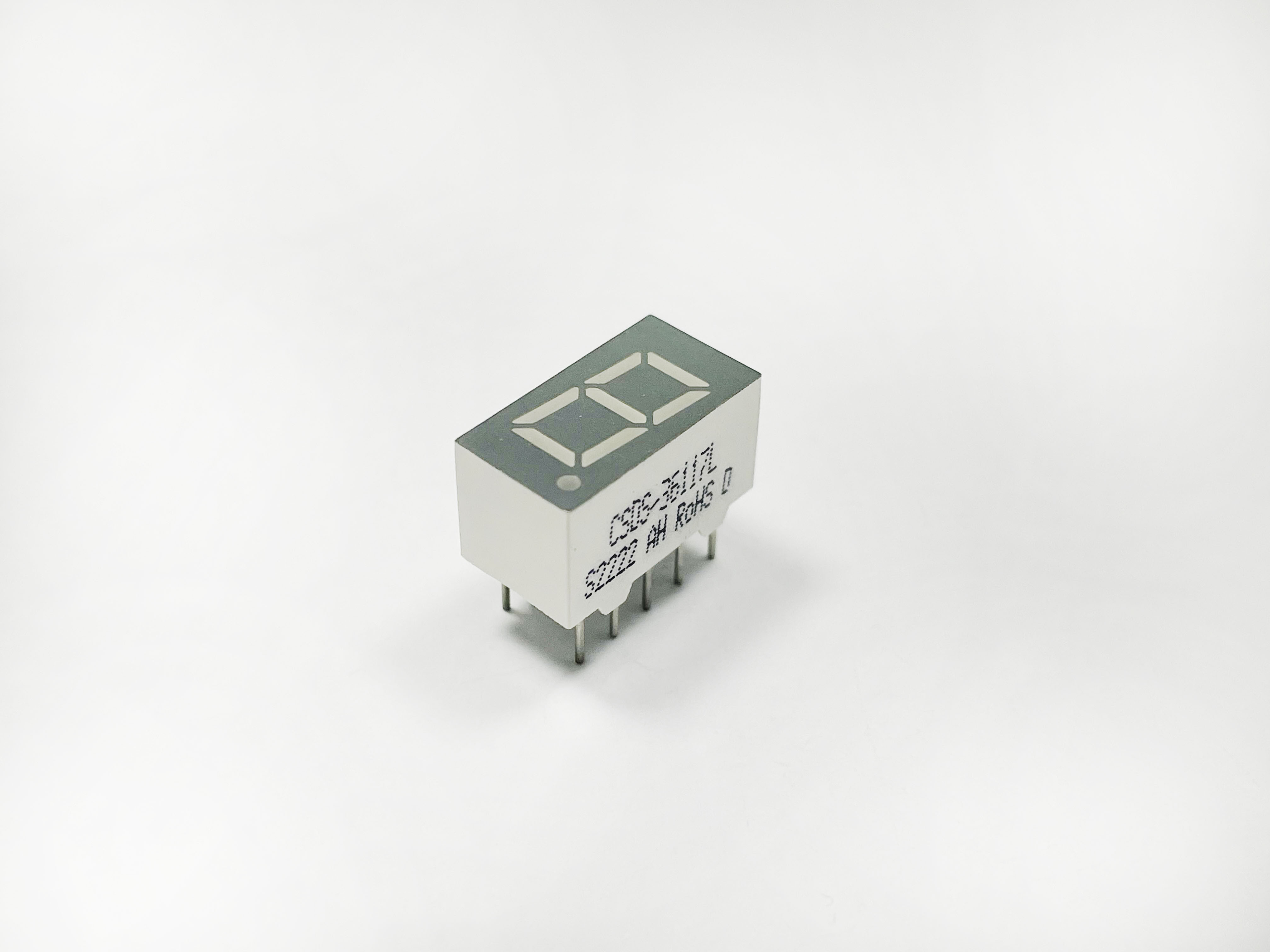

CSDS-36100_CSDS-36101
基本信息
1.Single digit display .
2.0.36 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.0.36 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
特色优点
产品规格
| Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | |||||
| 0.36 inch | 7.5*14*8.5 | Green | CSDS-361002 | CSDS-361012 | 525 | 70 | 150 | 10 |
| 0.36 inch | 7.5*14*8.5 | Green | CSDS-36100M | CSDS-36101M | 570 | 4 | 10 | 10 |
| 0.36 inch | 7.5*14*8.5 | Yellow | CSDS-36100T | CSDS-36101T | 590 | 17 | 38 | 10 |
| 0.36 inch | 7.5*14*8.5 | Orange | CSDS-36100A | CSDS-36101A | 605 | 17 | 45 | 10 |
| 0.36 inch | 7.5*14*8.5 | Red | CSDS-36100V | CSDS-36101V | 625 | 10 | 23 | 10 |
| 0.36 inch | 7.5*14*8.5 | Red | CSDS-36100L | CSDS-36101L | 630 | 10 | 22 | 10 |
| 0.36 inch | 7.5*14*8.5 | Red | CSDS-36100U | CSDS-36101U | 645 | 7 | 14 | 10 |
