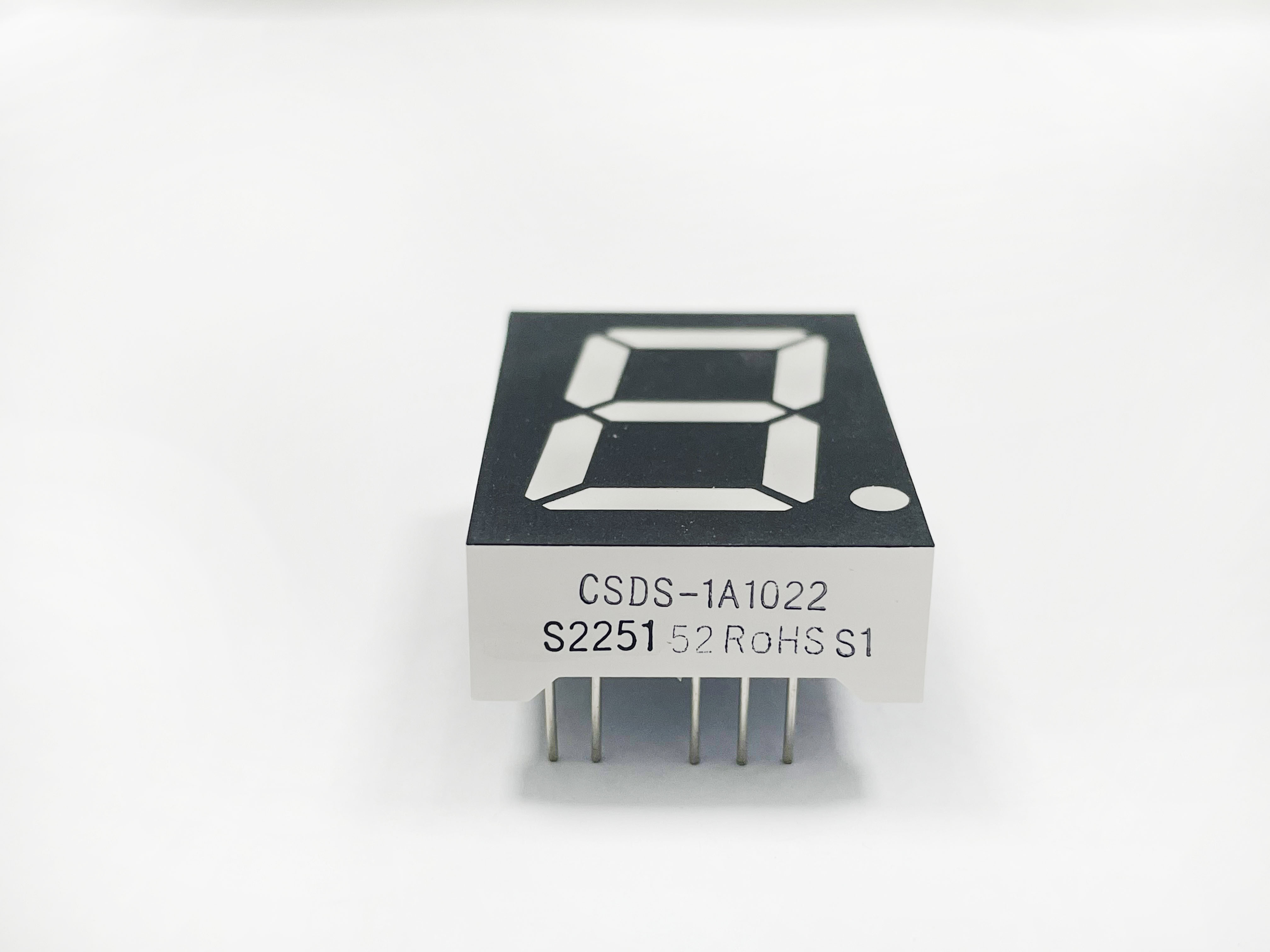

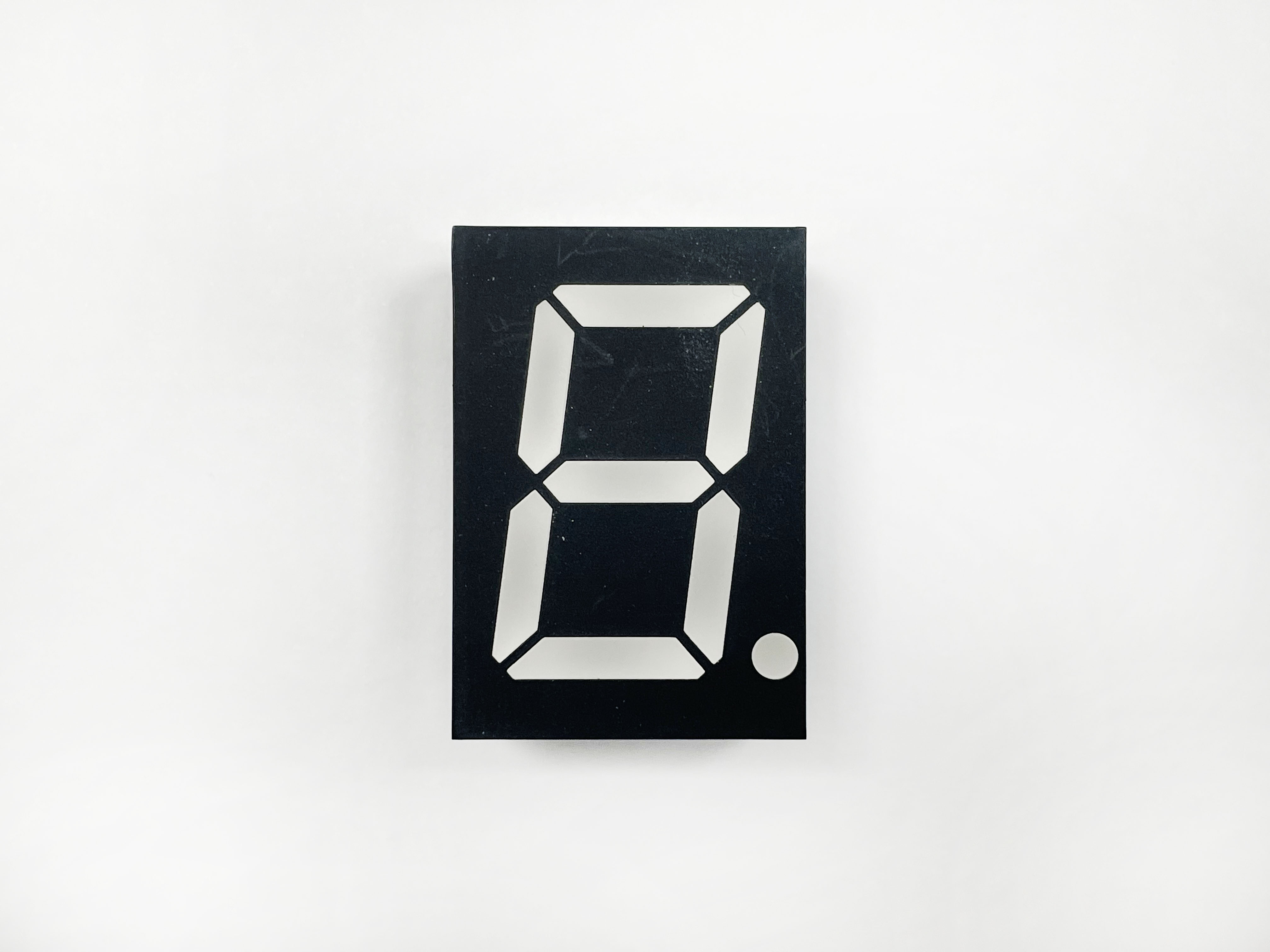

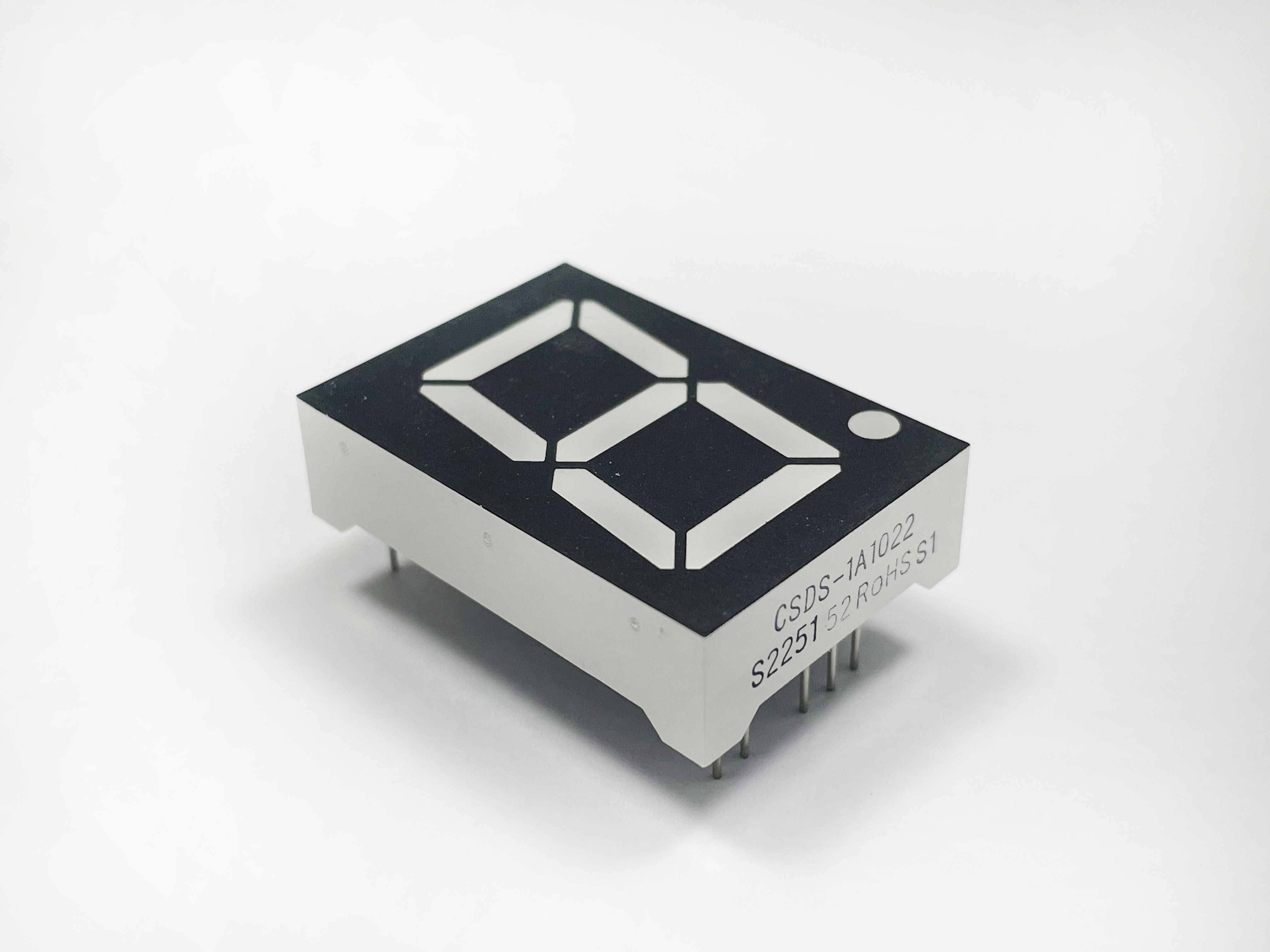

CSDS-1A102_CSDS-1A103
Basic information
1.Single digit  display .
2.1.0 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
1.00 inch 22.8*33*9 Green CSDS-1A1022 CSDS-1A1032 525 280 500 10
1.00 inch 22.8*33*9 Green CSDS-1A102M CSDS-1A103M 570 17 30 10
1.00 inch 22.8*33*9 Yellow CSDS-1A102T CSDS-1A103T 590 70 130 10
1.00 inch 22.8*33*9 Orange CSDS-1A102A CSDS-1A103A 605 70 140 10
1.00 inch 22.8*33*9 Red CSDS-1A102V CSDS-1A103V 625 50 90 10
1.00 inch 22.8*33*9 Red CSDS-1A102L CSDS-1A103L 630 50 85 10
1.00 inch 22.8*33*9 Red CSDS-1A102U CSDS-1A103U 645 30 50 10
