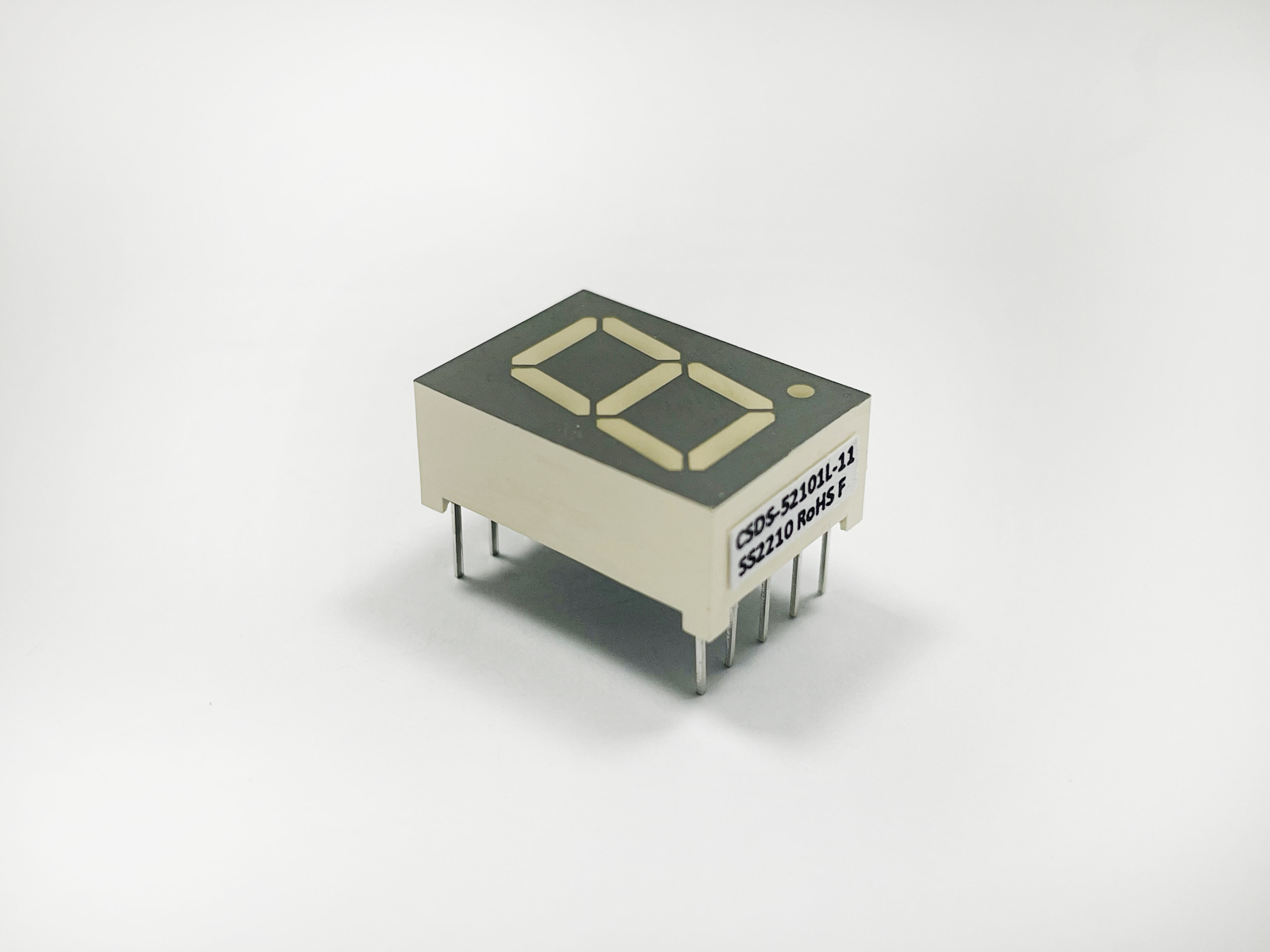

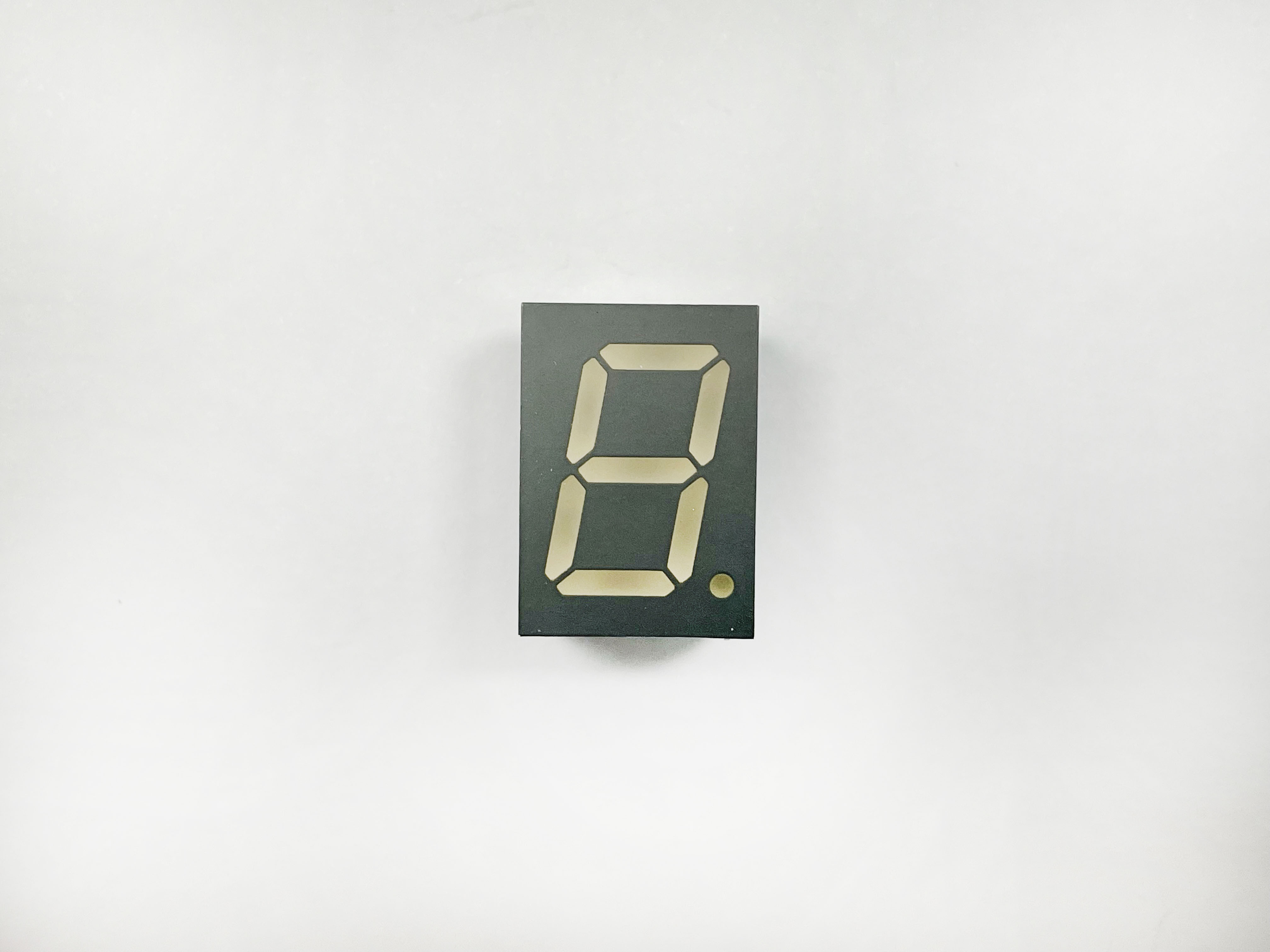

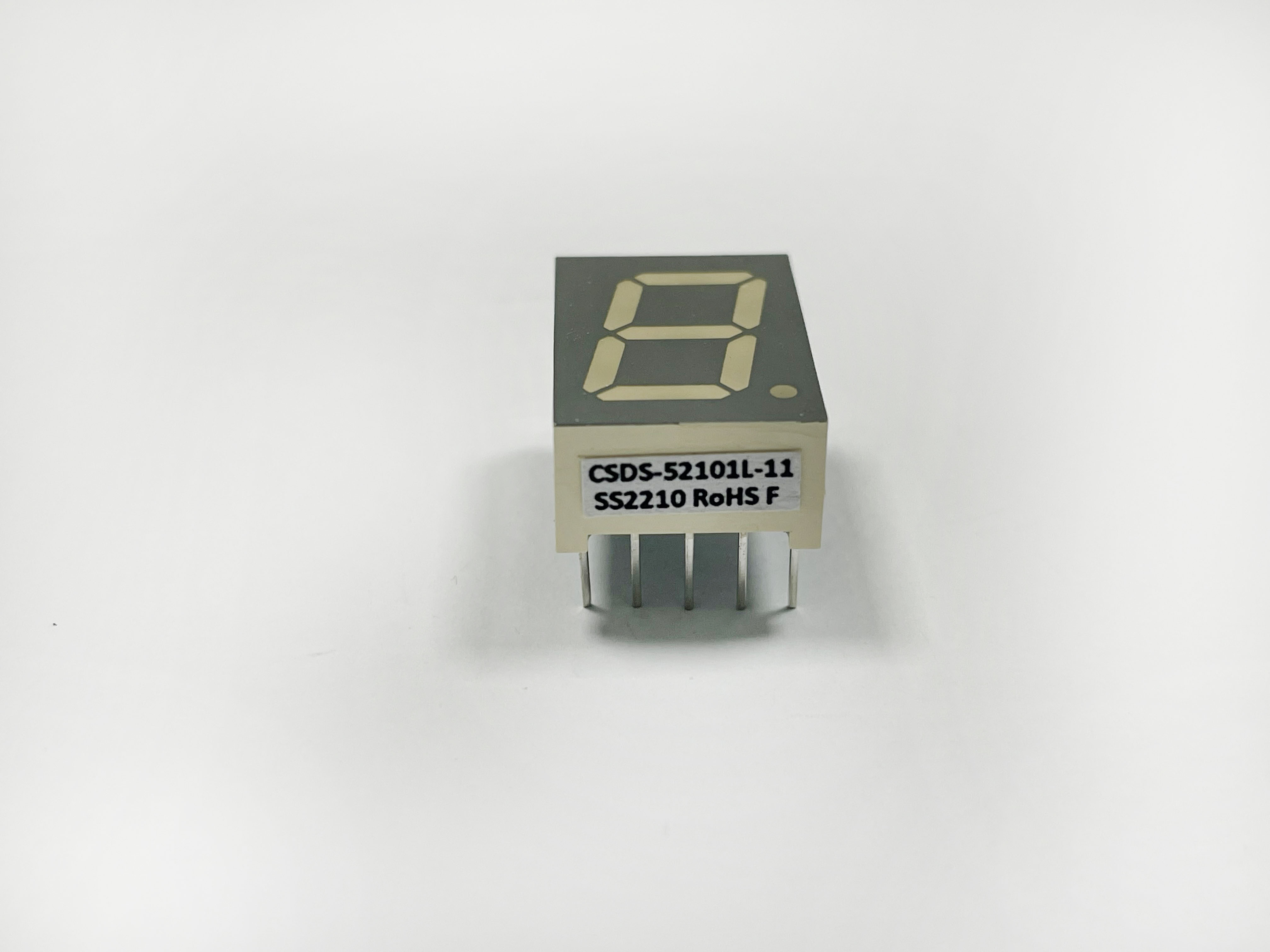

CSDS-52100_CSDS-52101
Basic information
1.Single digit  display .
2.0.52 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.52 inch 12.4*17.5*7 Green CSDS-521002 CSDS-521012 525 110 200 10
0.52 inch 12.4*17.5*7 Green CSDS-52100M CSDS-52101M 570 6 10 10
0.52 inch 12.4*17.5*7 Yellow CSDS-52100T CSDS-52101T 590 20 40 10
0.52 inch 12.4*17.5*7 Orange CSDS-52100A CSDS-52101A 605 20 55 10
0.52 inch 12.4*17.5*7 Red CSDS-52100V CSDS-52101V 625 17 30 10
0.52 inch 12.4*17.5*7 Red CSDS-52100L CSDS-52101L 630 17 30 10
0.52 inch 12.4*17.5*7 Red CSDS-52100U CSDS-52101U 645 8 15 10
