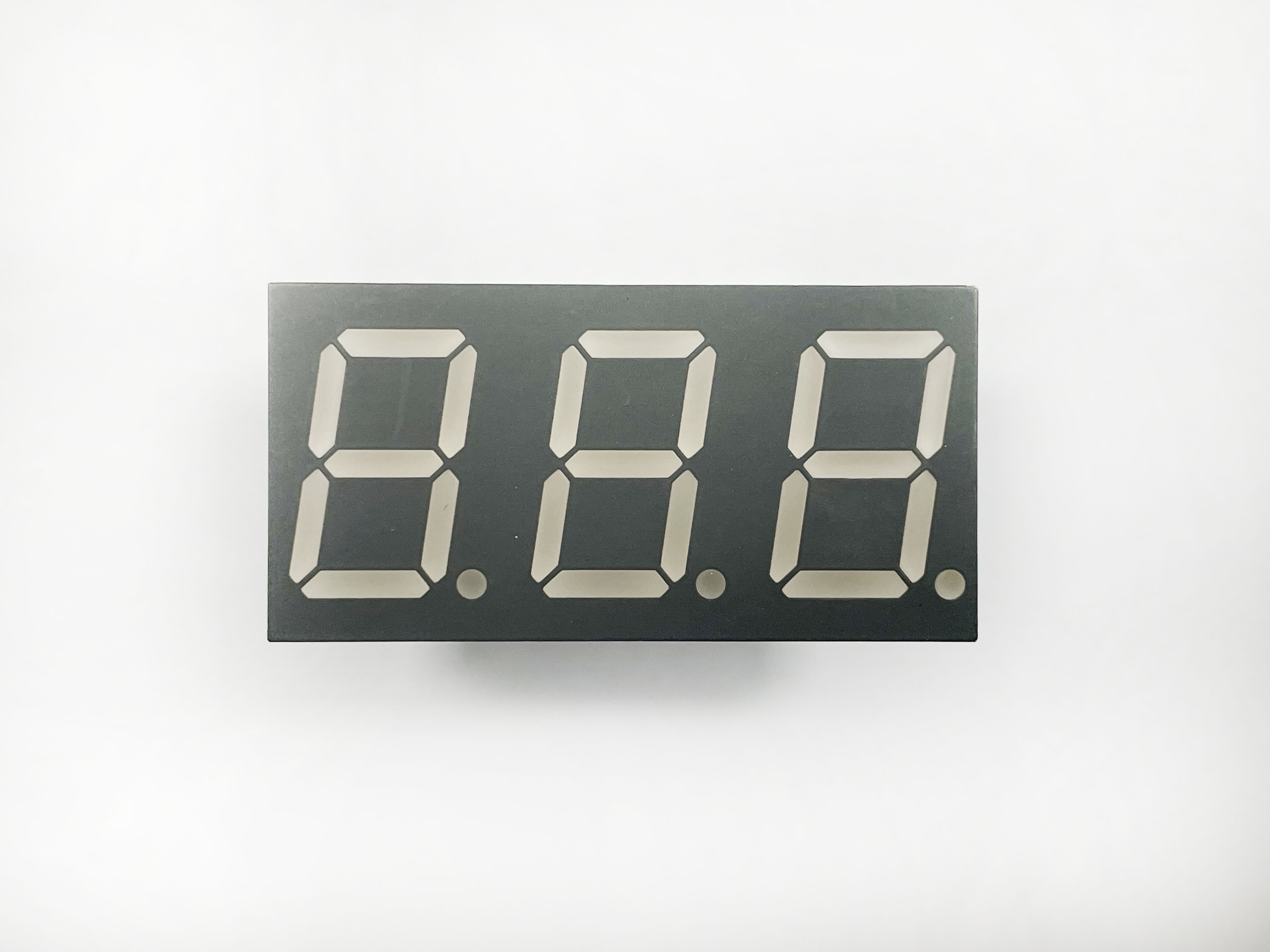

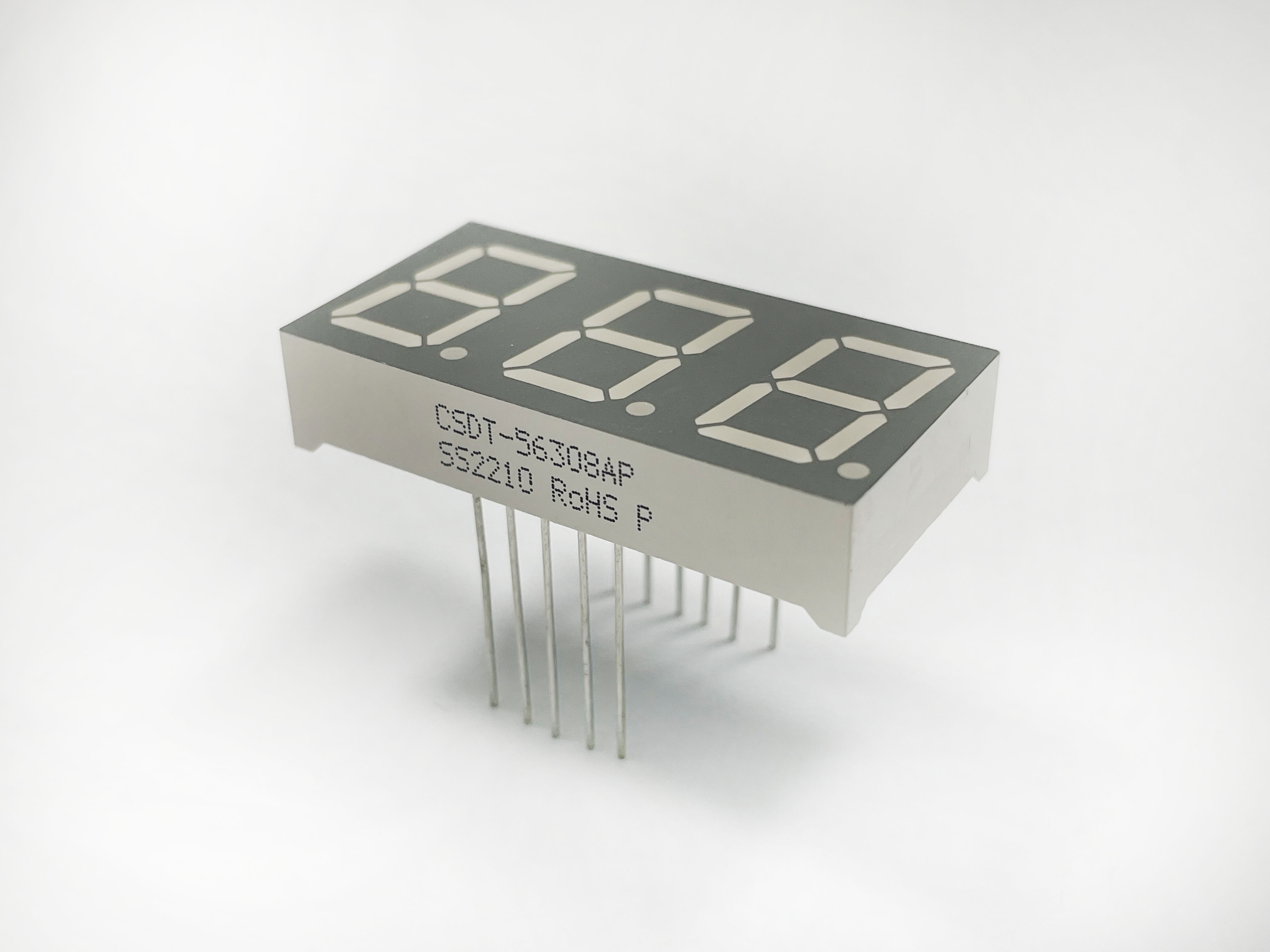

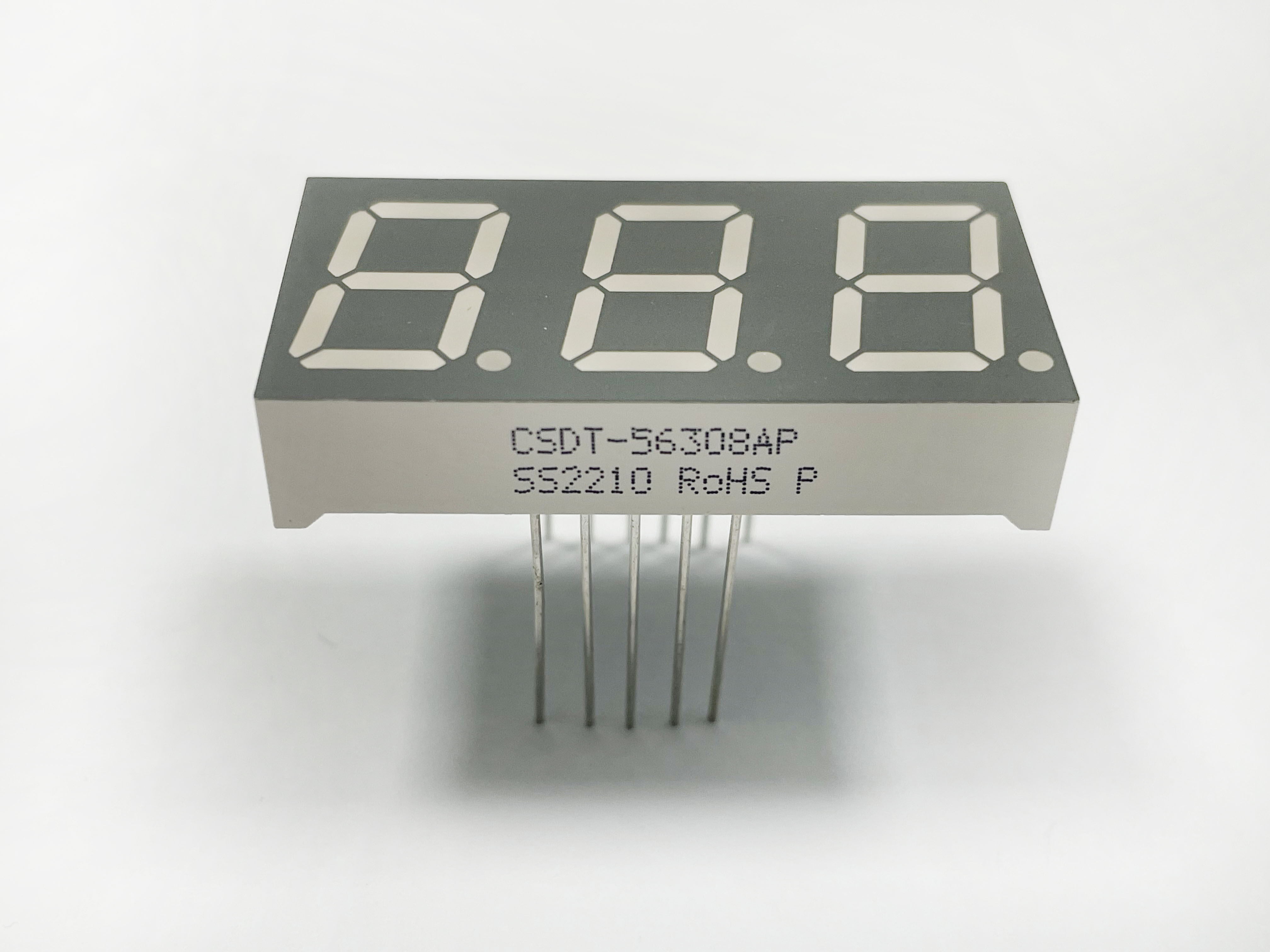

CSDT-56300_CSDT-56301
Basic information
1.Triple digit  display .
2.0.56 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.56 inch 37.7*19.1*8 Green CSDT-563002 CSDT-563012 525 110 200 10
0.56 inch 37.7*19.1*8 Green CSDT-56300M CSDT-56301M 570 7 12 10
0.56 inch 37.7*19.1*8 Yellow CSDT-56300T CSDT-56301T 590 27 50 10
0.56 inch 37.7*19.1*8 Orange CSDT-56300A CSDT-56301A 605 27 60 10
0.56 inch 37.7*19.1*8 Red CSDT-56300V CSDT-56301V 625 20 30 10
0.56 inch 37.7*19.1*8 Red CSDT-56300L CSDT-56301L 630 20 30 10
0.56 inch 37.7*19.1*8 Red CSDT-56300U CSDT-56301U 645 10 18 10
