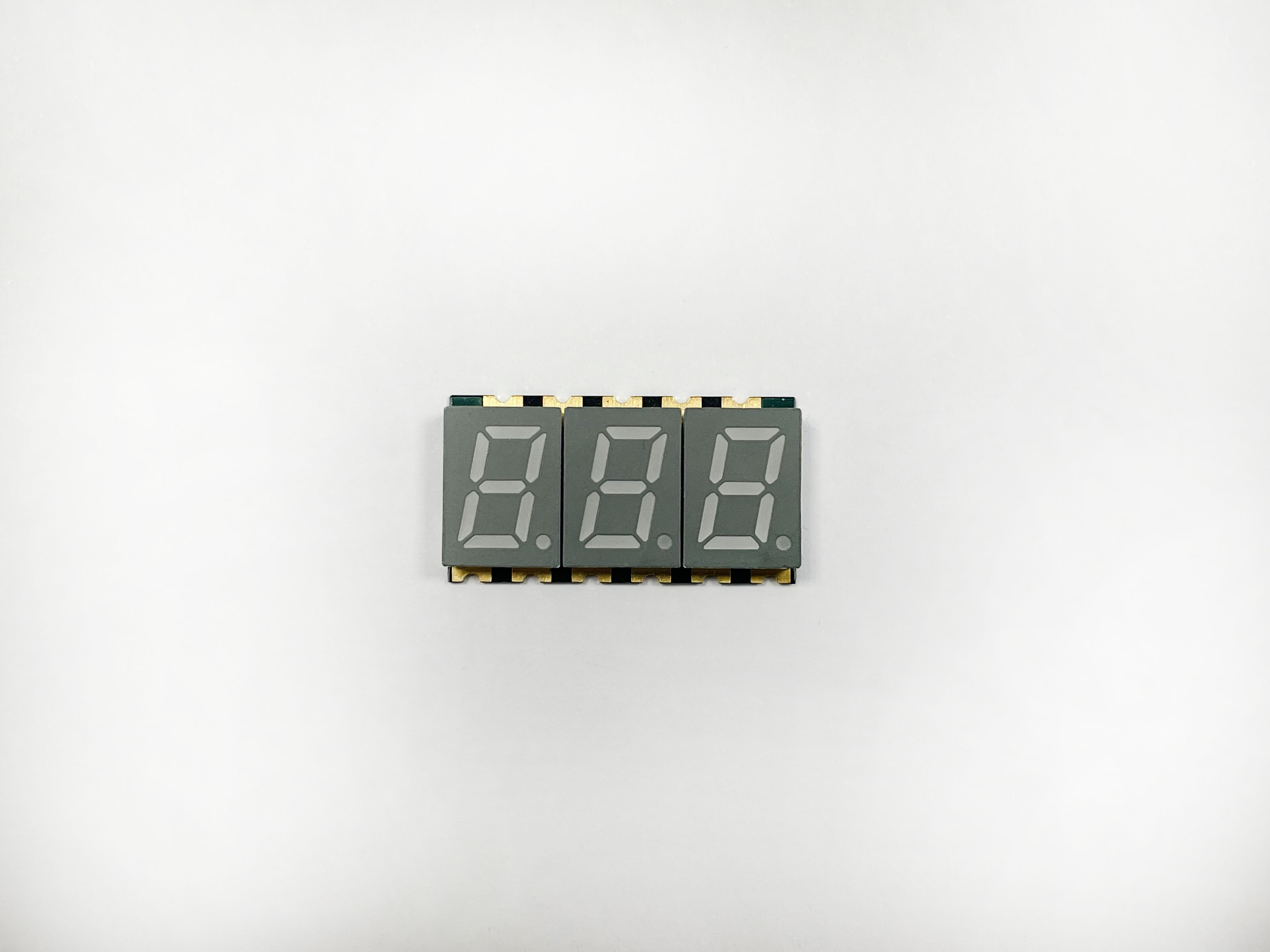

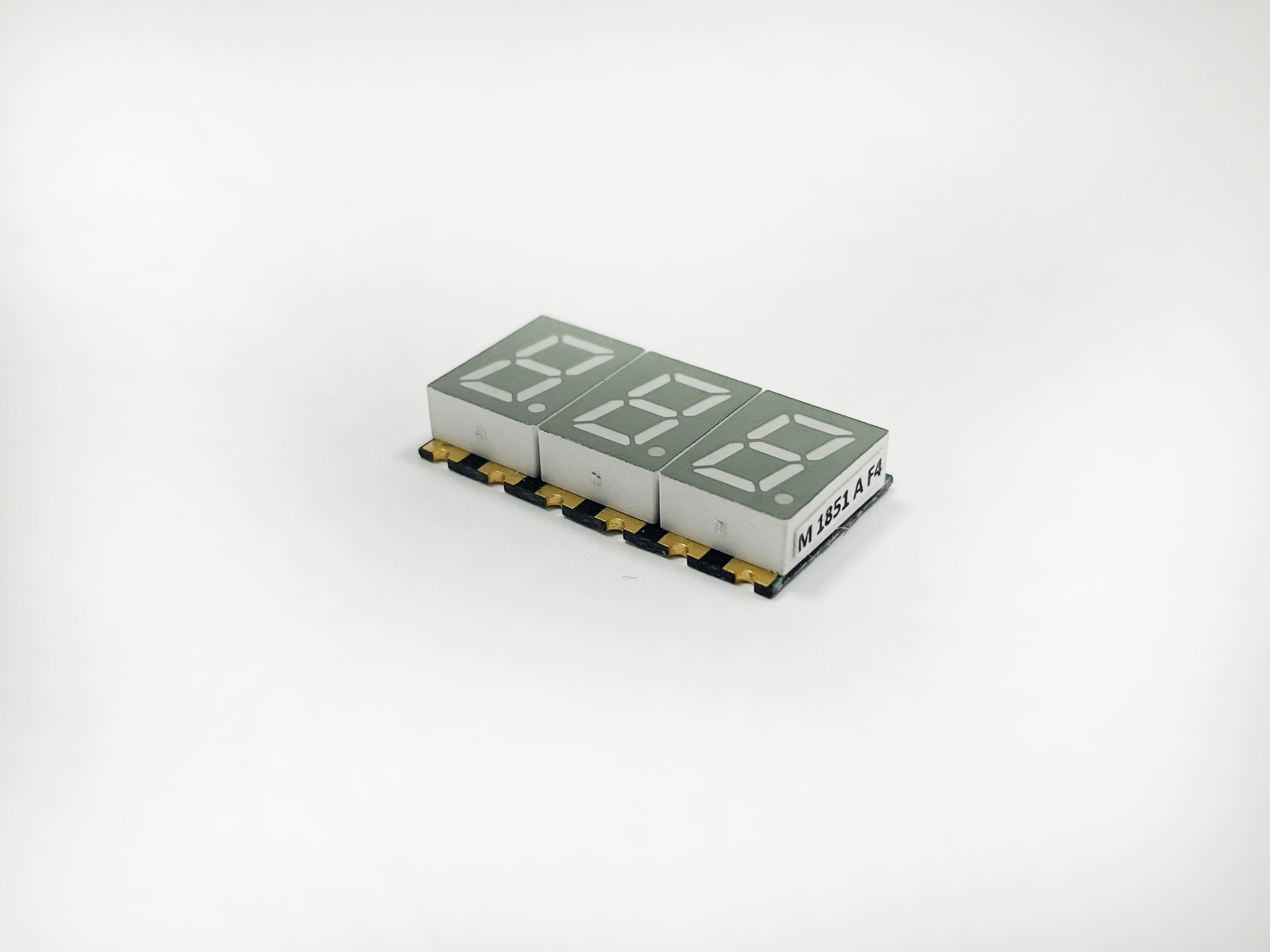

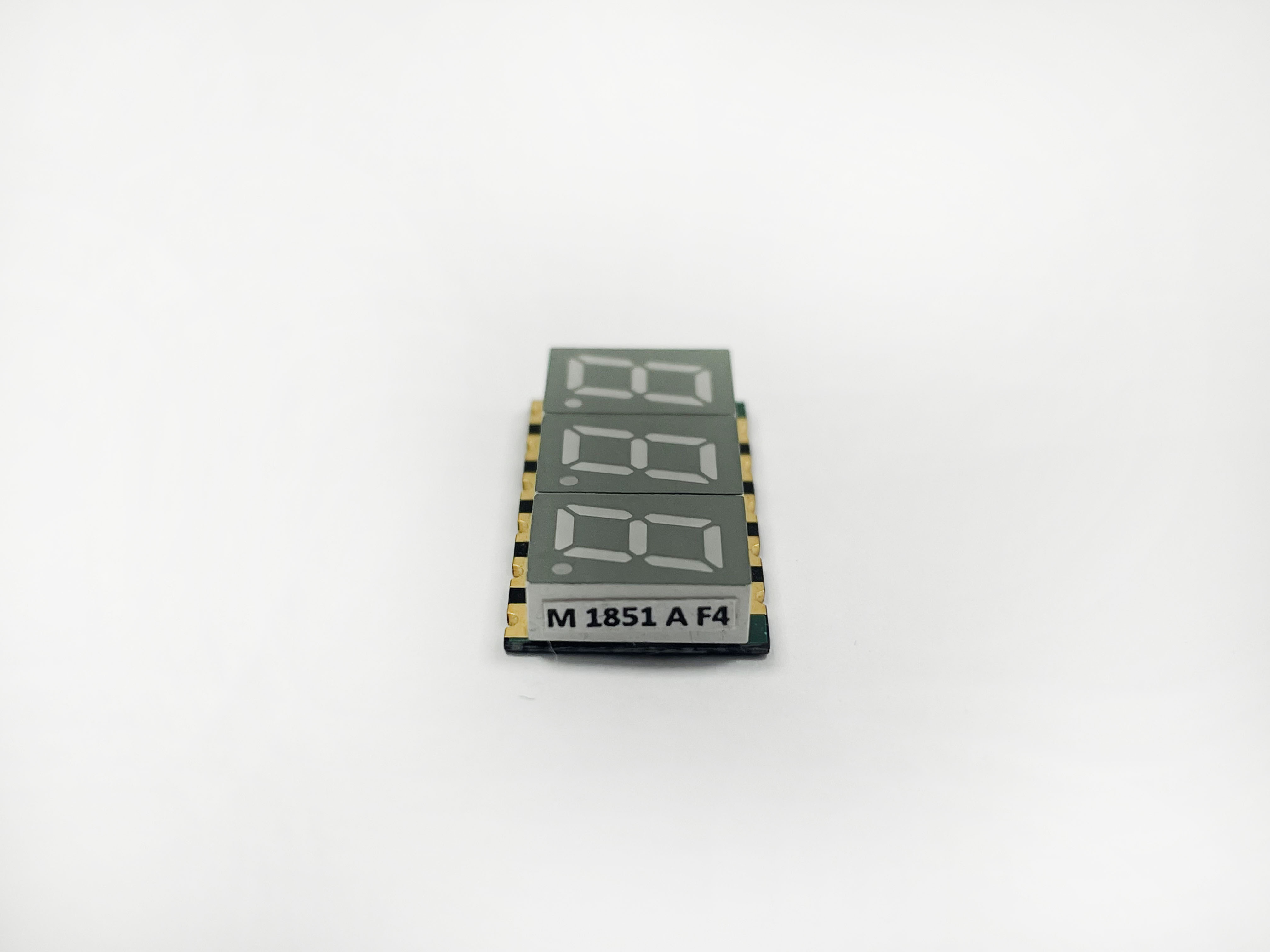

CSDT-S30320X_CSDT-S30321X
Basic information
1.Triple Digit  SMD Display .
2.0.3 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.Various color.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.30 inch Triple Digit 22.3*12*3.75 Green CSDT-S303202 CSDT-S303212 30 50 10
0.30 inch Triple Digit 22.3*12*3.75 Green CSDT-S30320M CSDT-S30321M 2 4 10
0.30 inch Triple Digit 22.3*12*3.75 Yellow CSDT-S30320T CSDT-S30321T 4 9 10
0.30 inch Triple Digit 22.3*12*3.75 Orange CSDT-S30320A CSDT-S30321A 4 9 10
0.30 inch Triple Digit 22.3*12*3.75 Red CSDT-S30320V CSDT-S30321V 3 7 10
0.30 inch Triple Digit 22.3*12*3.75 Red CSDT-S30320L CSDT-S30321L 3 7 10
0.30 inch Triple Digit 22.3*12*3.75 Red CSDT-S30320U CSDT-S30321U 3 6 10
