CSOT-S30320B_CSOT-S30321B
Basic information

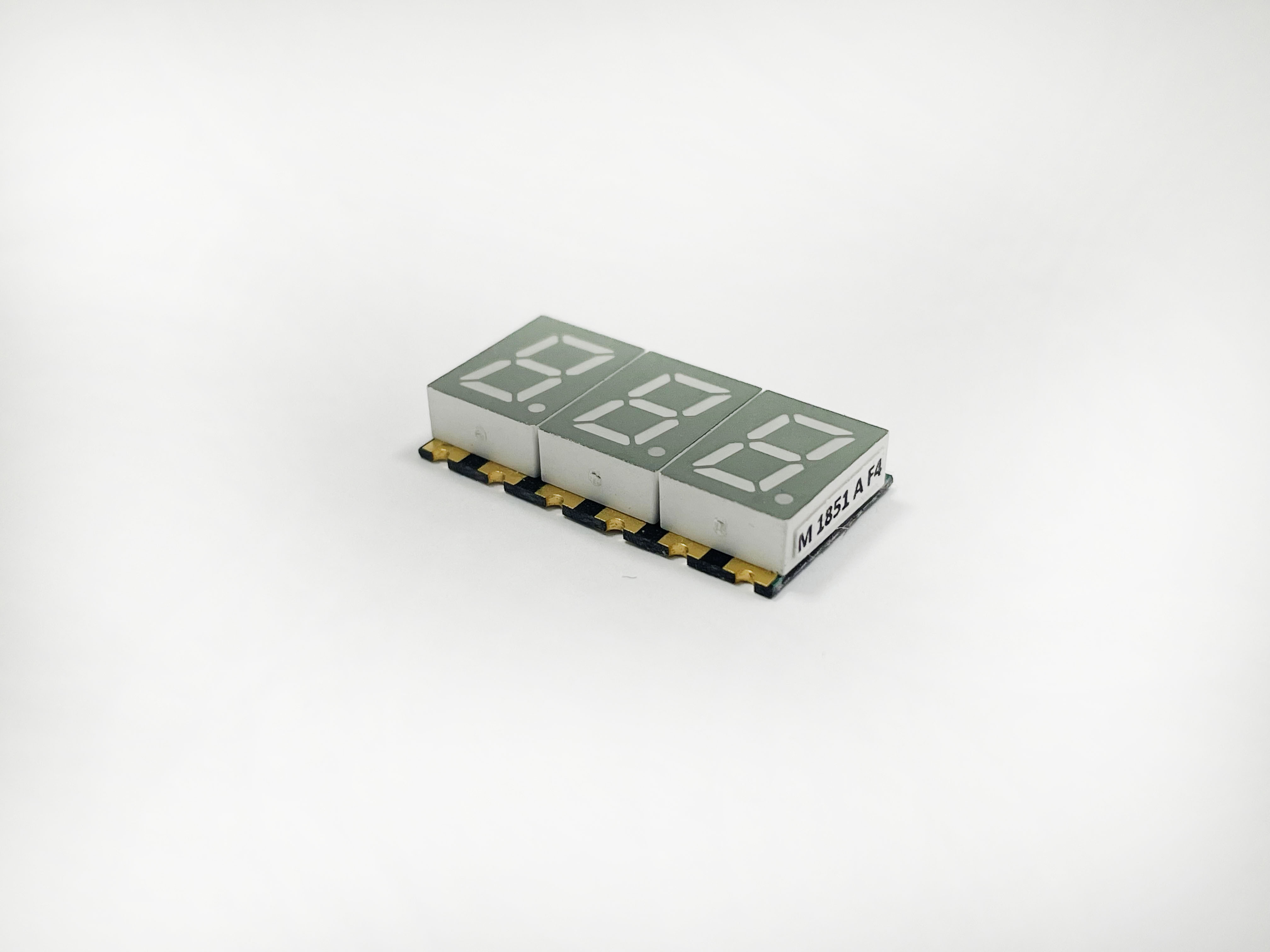

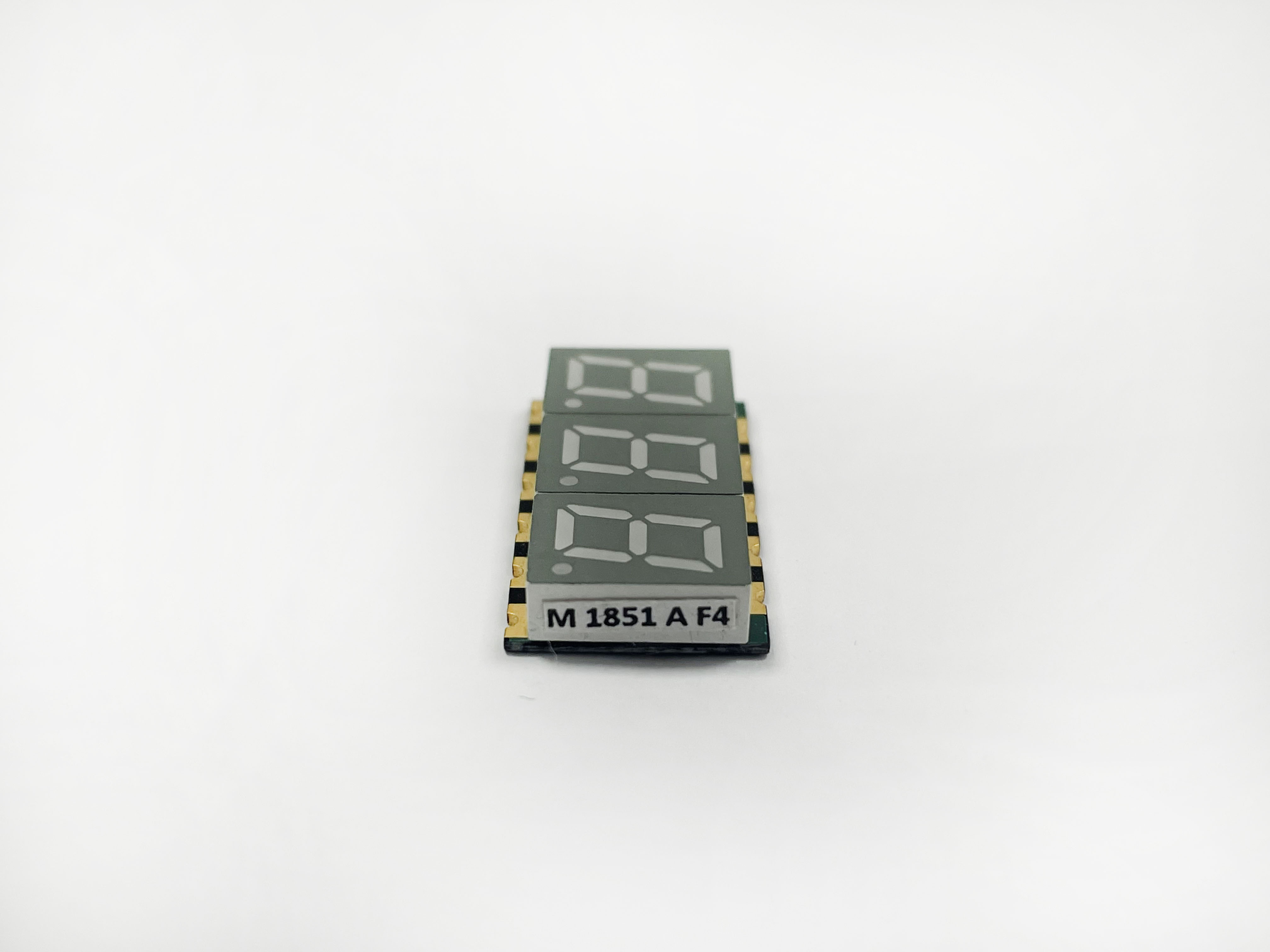

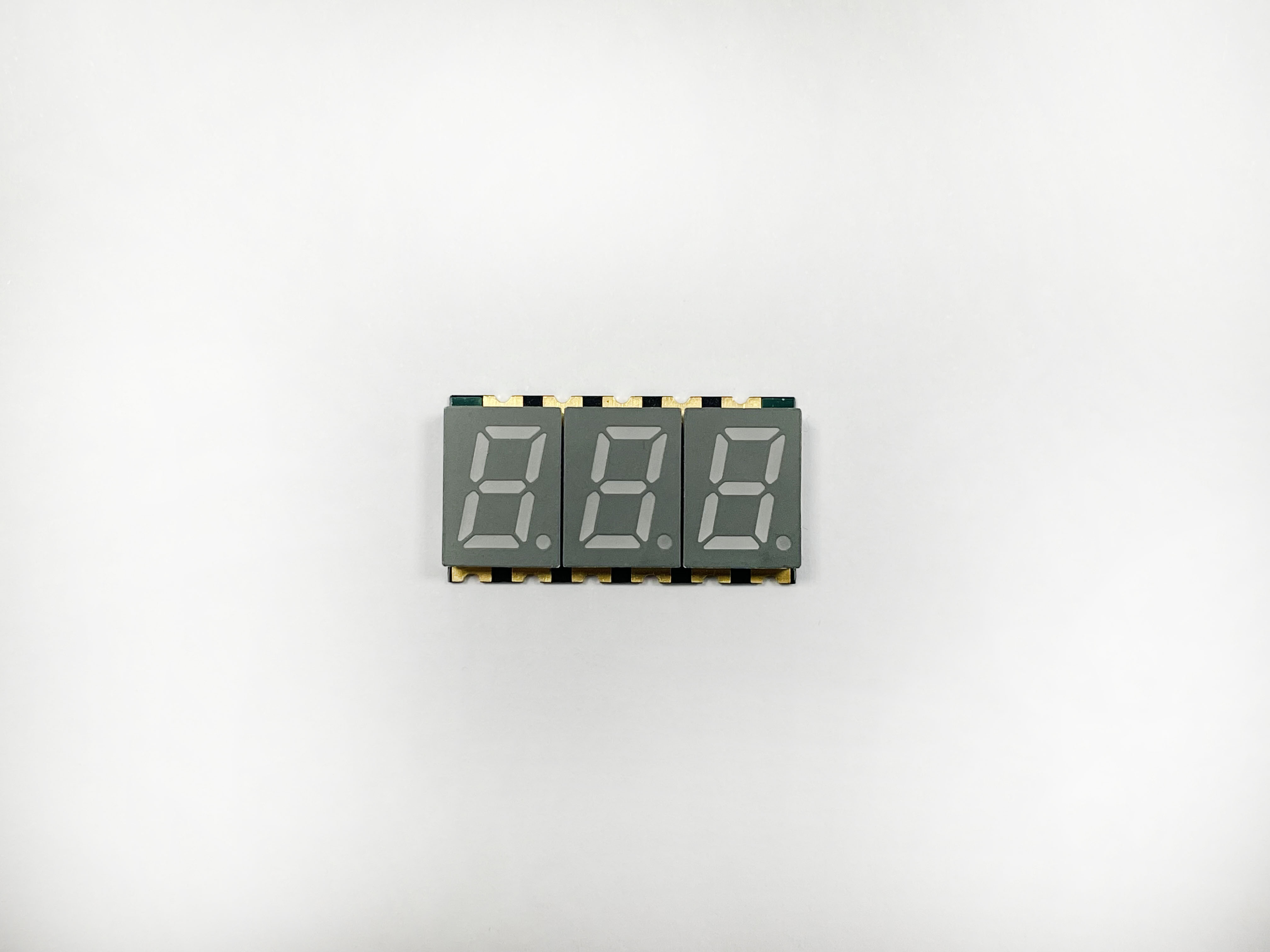

1.Triple Digit  SMD Display .
2.0.3 Inch.
3.Qualified according to JEDEC moisture sensitivity Level 2a.
4.Low power consumption.
5.OBOL product.
Featured Benefits
Contact us
Product specifications
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.30 inch Triad Digit 22.3*12*3.75 Blue CSOT-S30320B CSOT-S30321B 465 4.5 10 10
