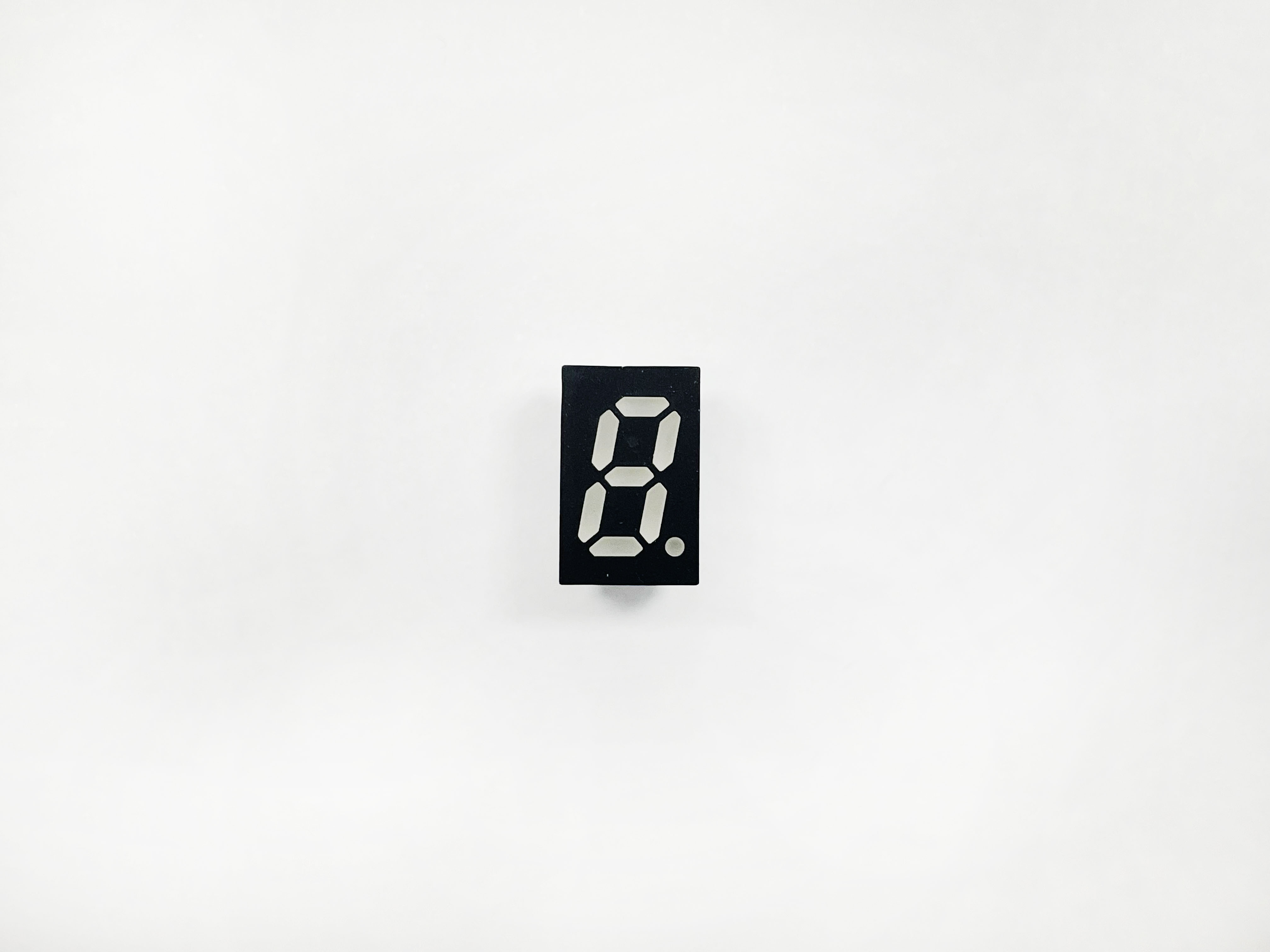

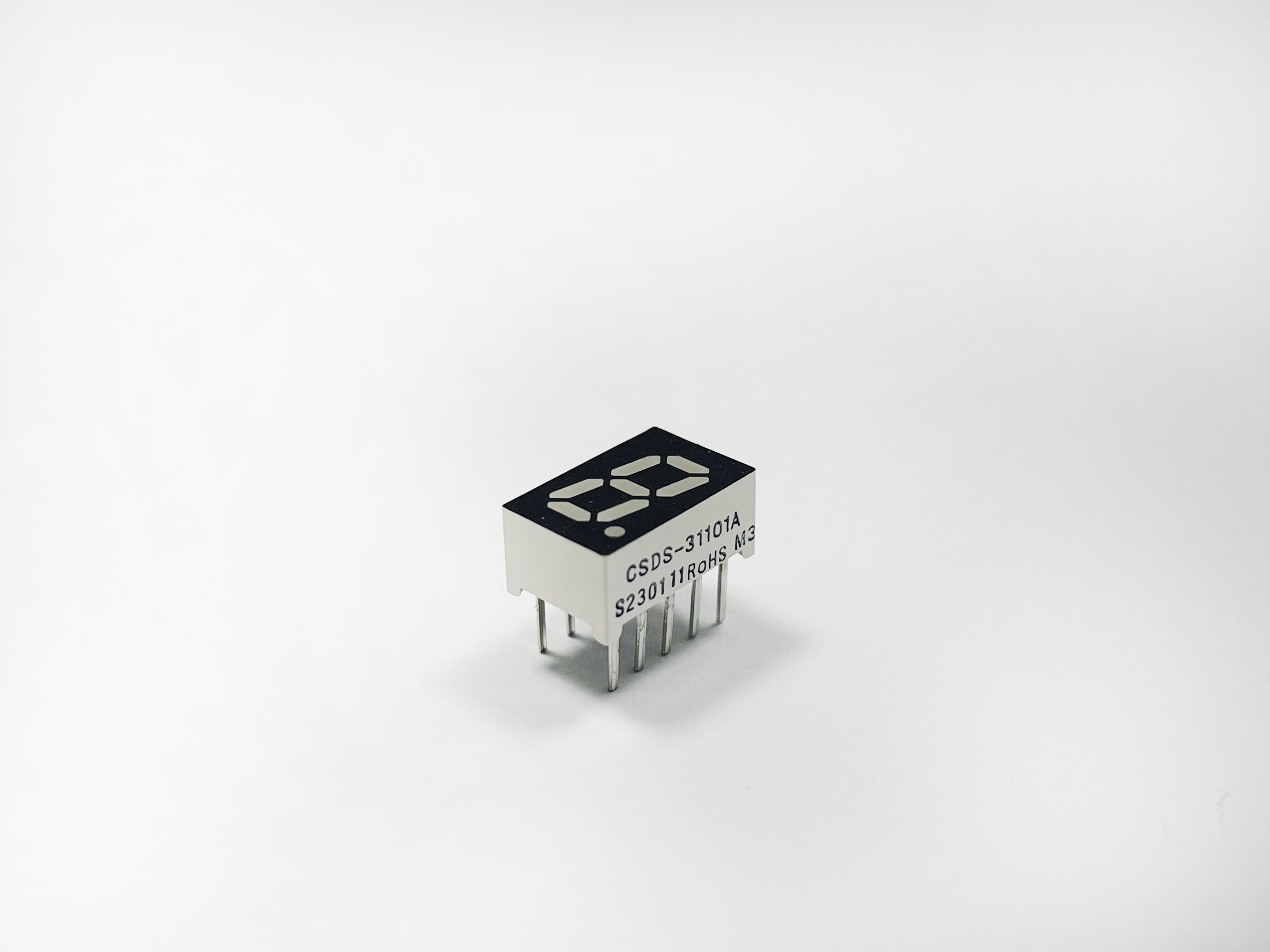

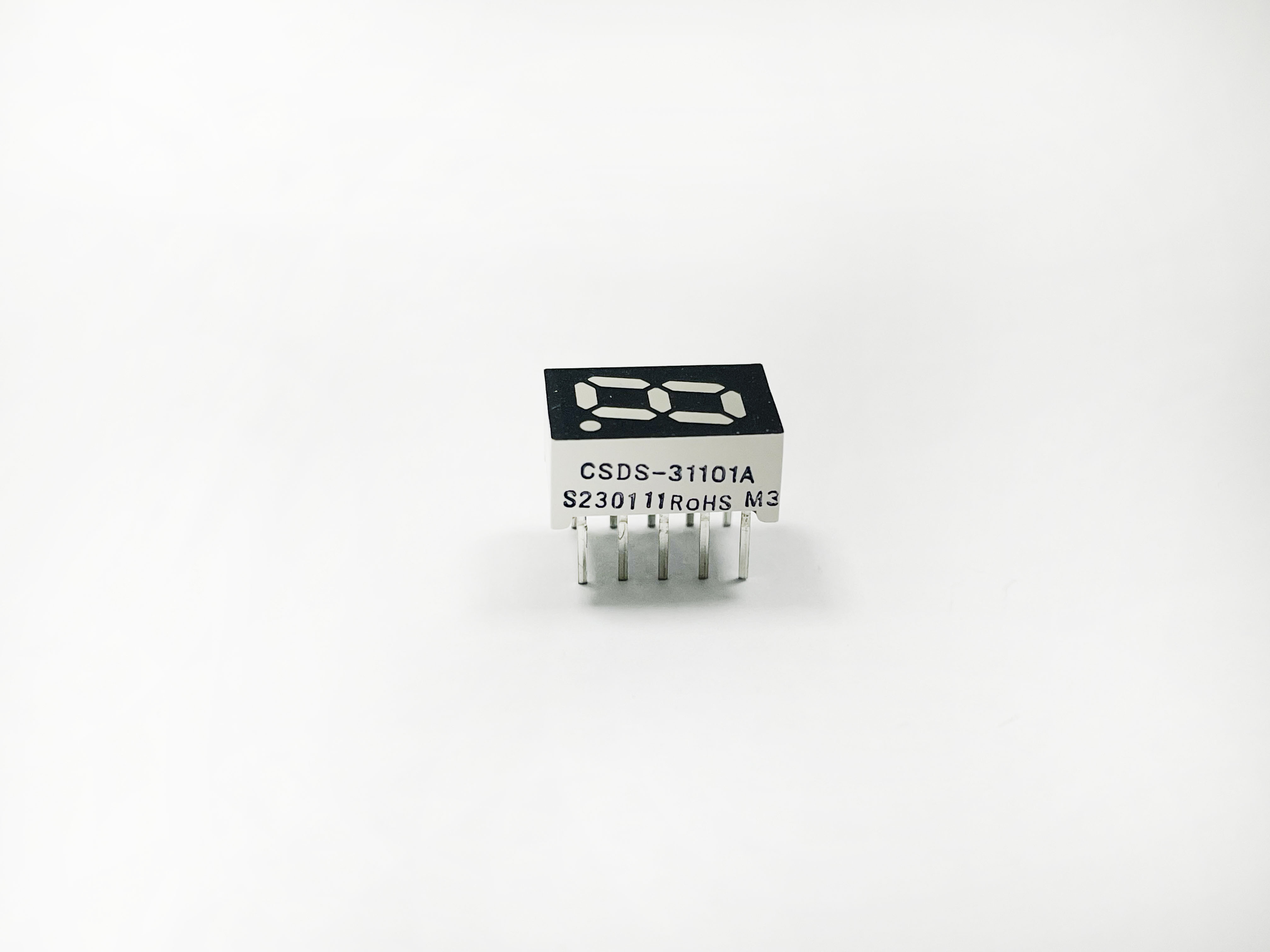

CSDS-31100_CSDS-31101
基本信息
1.Single digit display .
2.0.31 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.0.31 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
特色优点
产品规格
| Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | |||||
| 0.30 inch | 7*11*5 | Green | CSDS-311002 | CSDS-311012 | 525 | 70 | 120 | 10 |
| 0.30 inch | 7*11*5 | Green | CSDS-31100M | CSDS-31101M | 570 | 3 | 8 | 10 |
| 0.30 inch | 7*11*5 | Yellow | CSDS-31100T | CSDS-31101T | 590 | 17 | 30 | 10 |
| 0.30 inch | 7*11*5 | Orange | CSDS-31100A | CSDS-31101A | 605 | 17 | 40 | 10 |
| 0.30 inch | 7*11*5 | Red | CSDS-31100V | CSDS-31101V | 625 | 10 | 20 | 10 |
| 0.30 inch | 7*11*5 | Red | CSDS-31100L | CSDS-31101L | 630 | 10 | 20 | 10 |
| 0.30 inch | 7*11*5 | Red | CSDS-31100U | CSDS-31101U | 645 | 5 | 10 | 10 |
