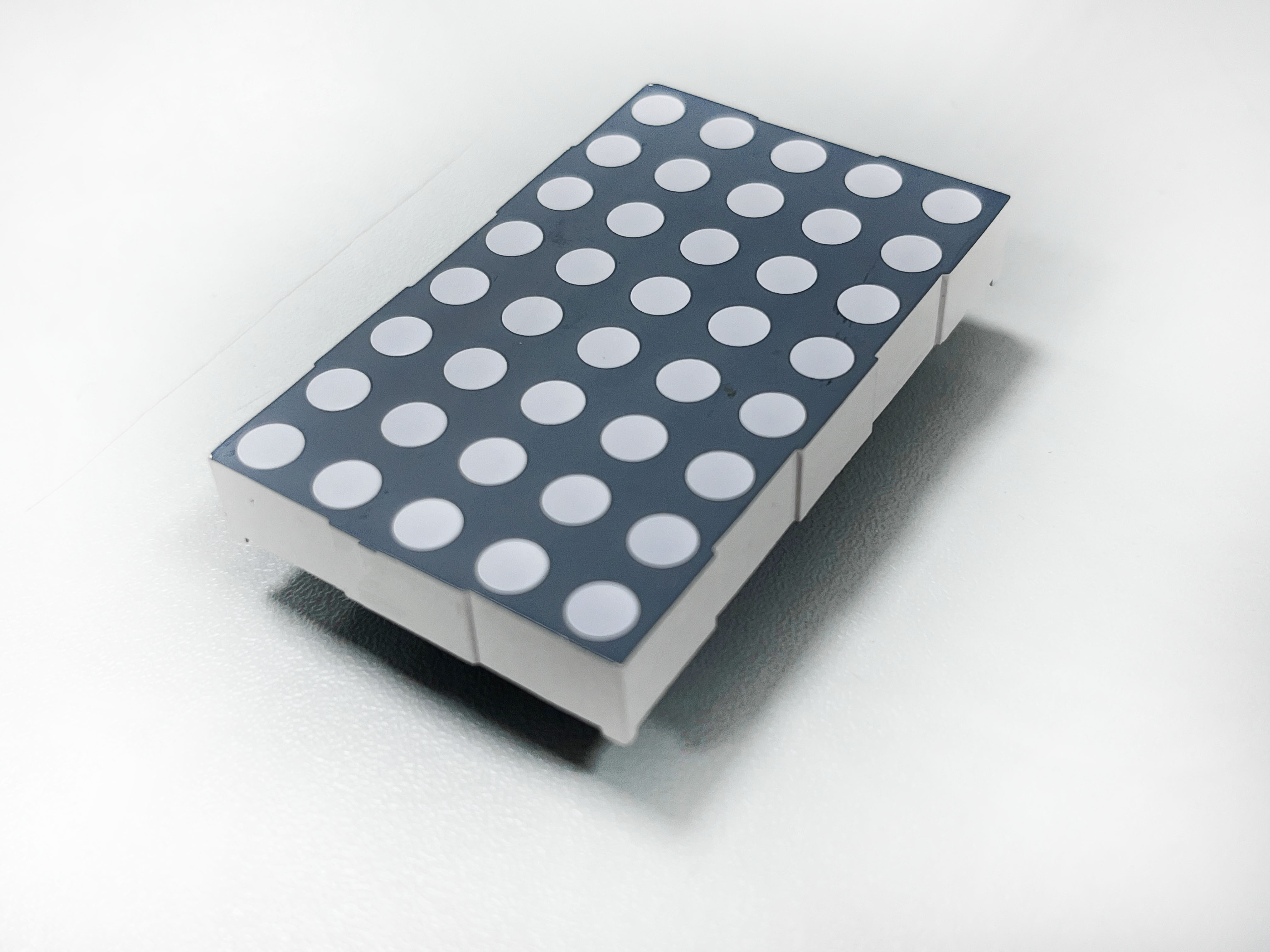

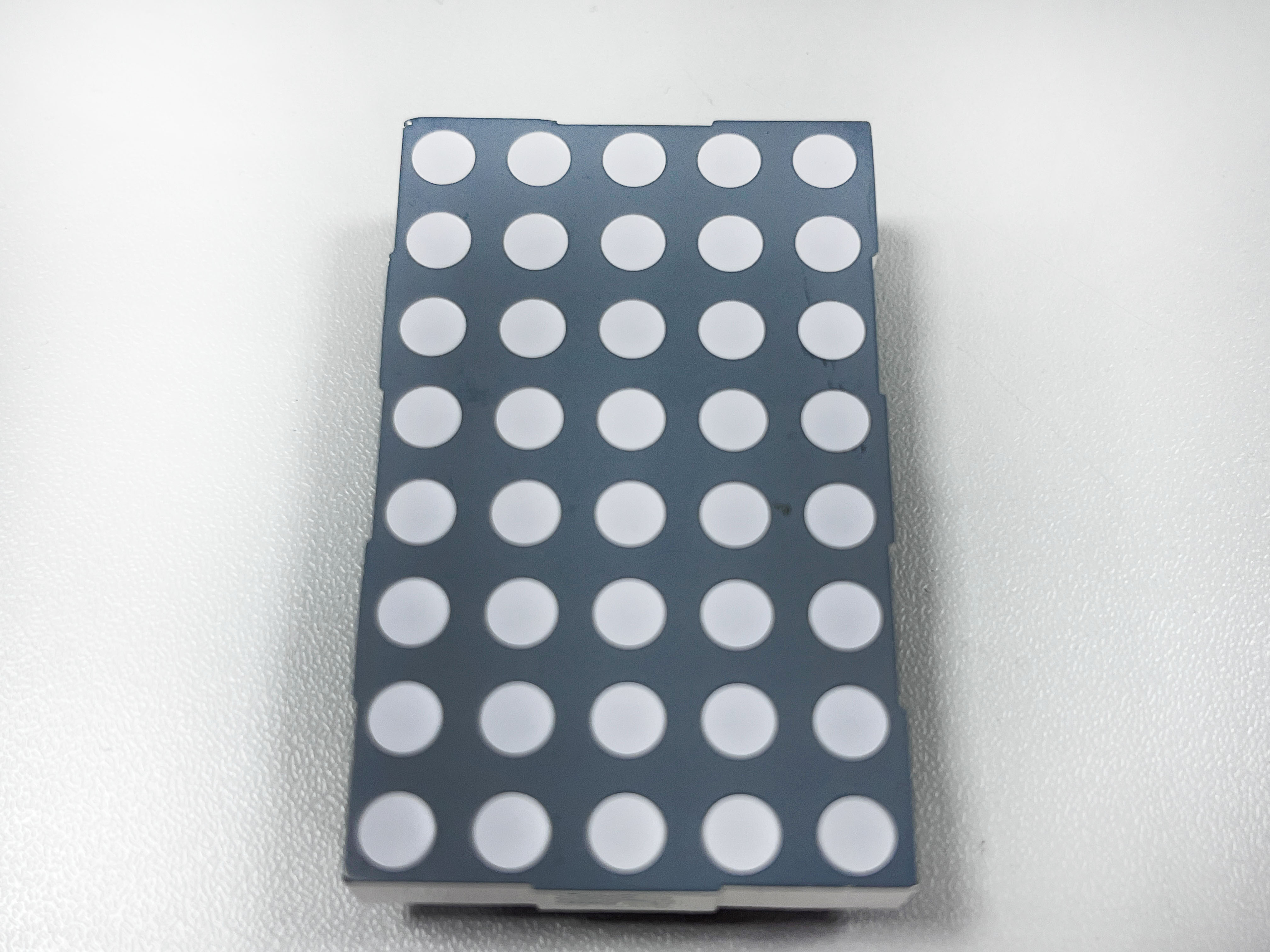

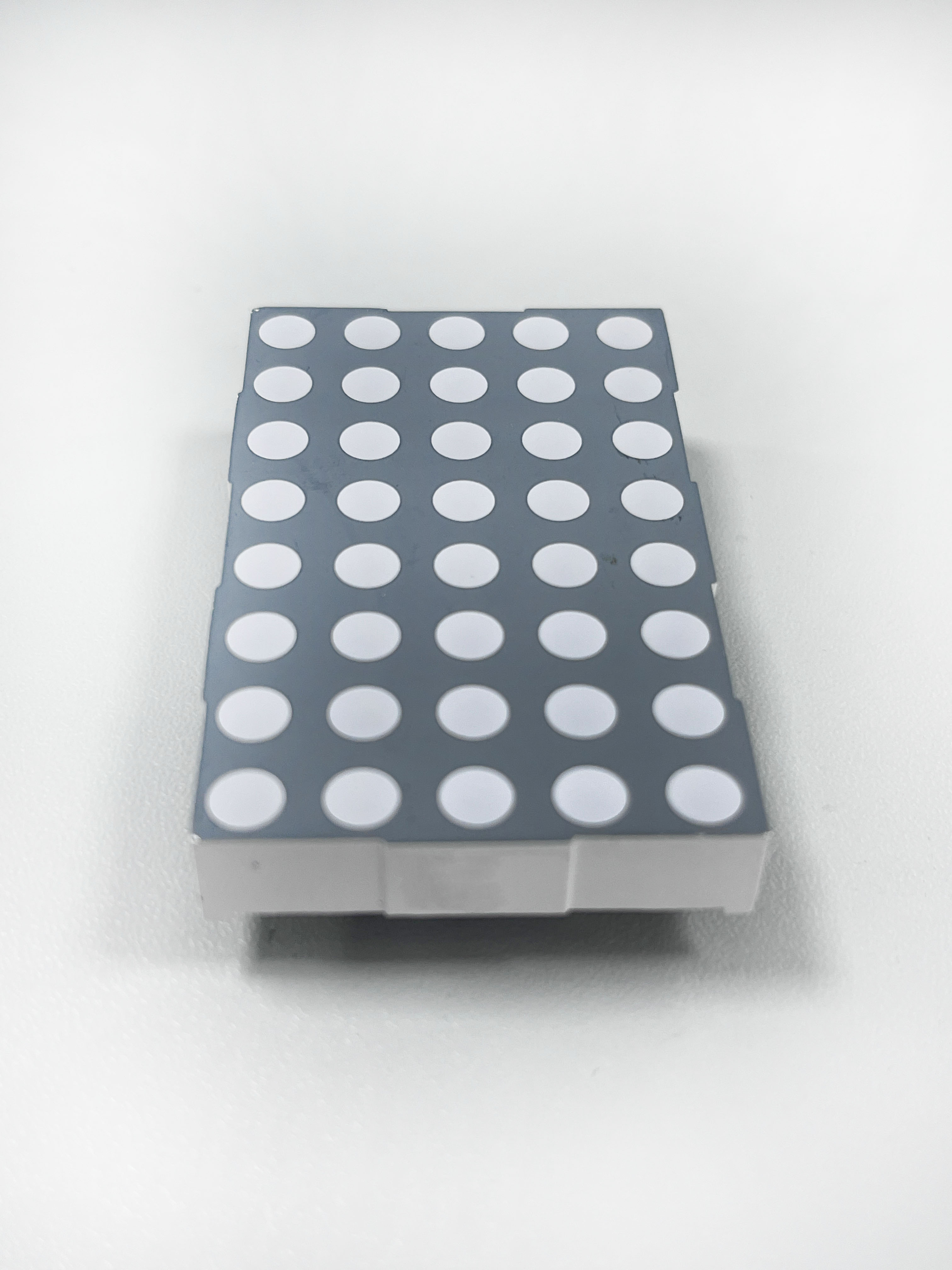

CSOM-58200B_CSOM-58201B
基本信息
1.2.3 Inch Dot-Matrix Display .
2.5*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.OBOL product.
2.5*8 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.OBOL product.
特色优点
产品规格
| Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | |||||
| dot 5*8 | 38*60.8*8.8 | Blue | CSOM-58200B | CSOM-58201B | 465 | 35 | 80 | 10 |
